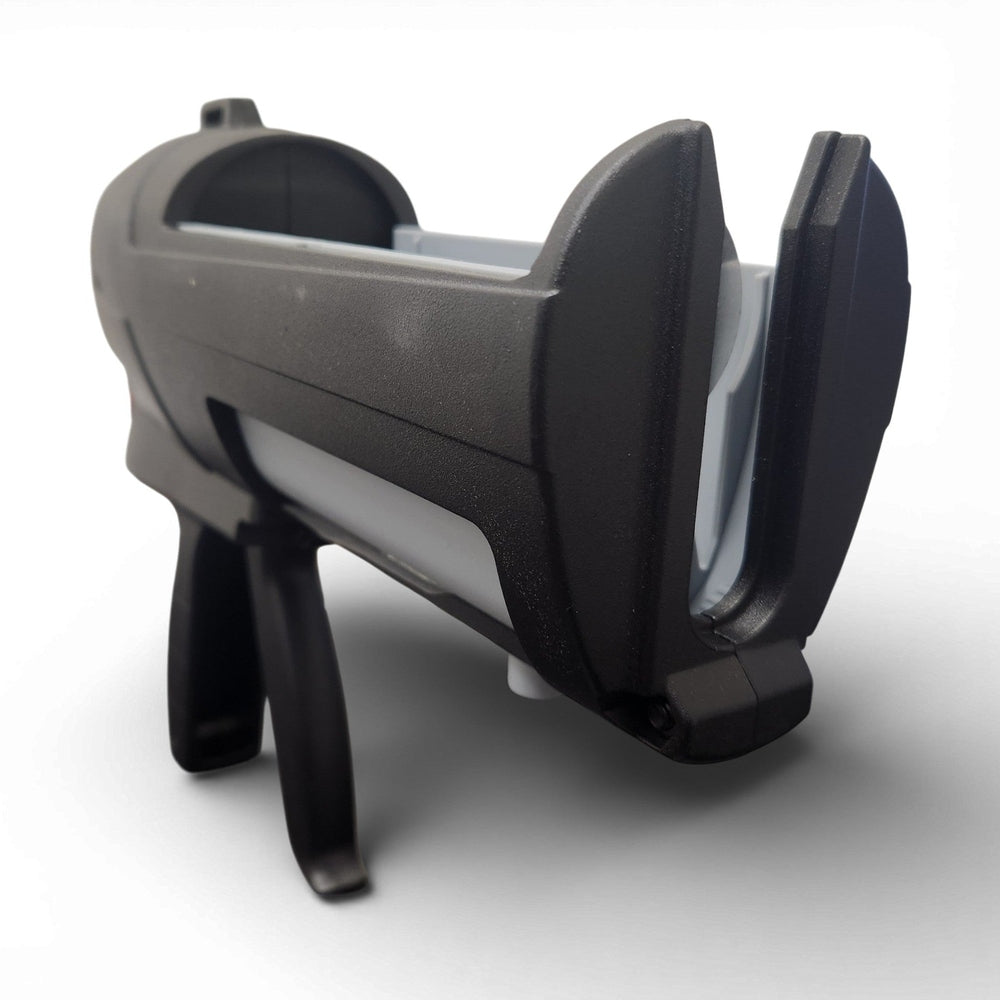

MixPac DM200 - 200mL Manual Cartridge Dispenser (Configurable for 1:1, 2:2, 4:1, 10:1 ratios)

Product Name

MixPac DM200 - 200mL Manual Cartridge Dispenser (Configurable for 1:1, 2:2, 4:1, 10:1 ratios)

Brief Description

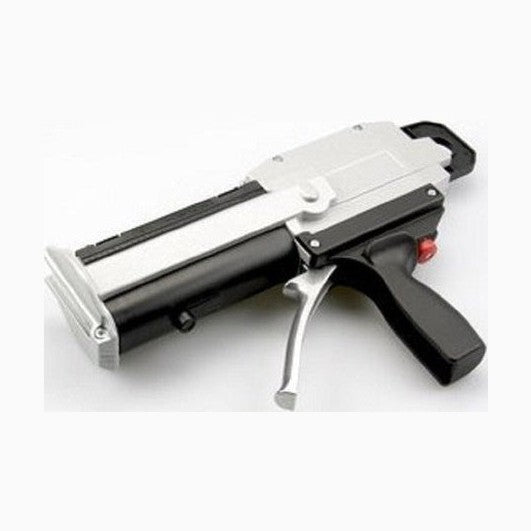

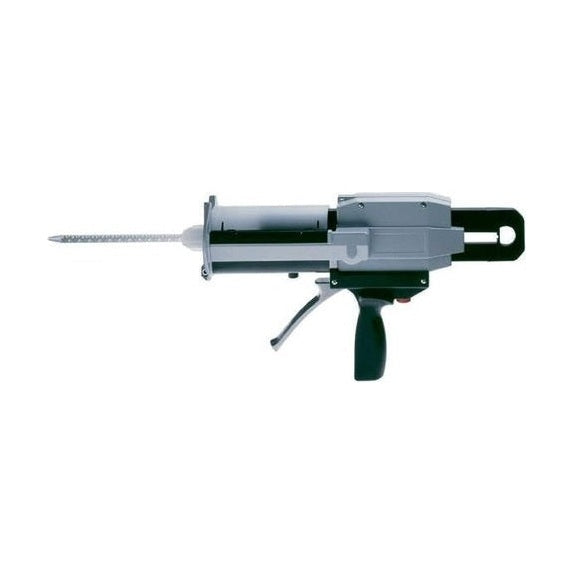

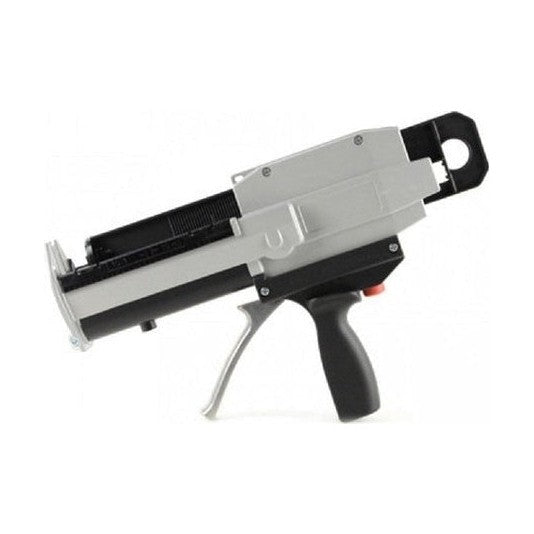

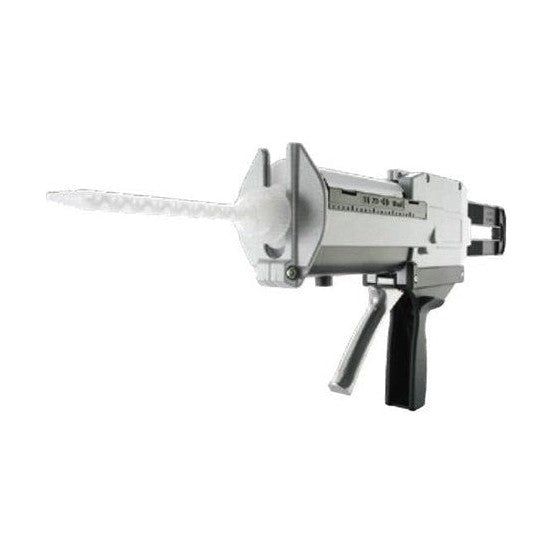

The Sulzer Mixpac DM200 was an industry-standard manual cartridge gun designed for dispensing two-part adhesives from 200ml cartridges. It featured a durable, lightweight design suitable for mid-to-high volume applications and was configurable for various mix ratios including 1:1, 2:1, 4:1, and 10:1. This dispenser worked with most standard 200ml cartridges, including Sulzer C and F series products.

Popular Applications & Uses

- Dispensing two-part adhesives and sealants- Seaming applications- Bonding difficult materials and irregular shapes- Filling cracks and sealing edges in concrete with epoxy resins- Signage and display assembly- RV interiors and general bonding applications- Potting and sealing fragile electrical components- Woodworking and custom cabinetry installations- General assembly operations in various markets

Industries that Commonly Use It

- Aerospace/Defense- Automotive Service/Repair- Cabinet & Woodworking- Construction/Building Services- General Manufacturing- LED/Electronics- Metal Fabrication- Sign & Display- Transportation/Specialty Vehicle- Distributers & Resellers

Special and Unique Features

- Configurable for multiple mix ratios (1:1, 2:1, 4:1, 10:1)- Durable and lightweight design- Rigid construction for precise dosing and accurate application- Suitable for high-viscosity compounds- High long-term stability- Fatigue-free working with little user effort- Separate outlets and perfectly sealed interface between mixer and cartridge to prevent cross-mixing- Defined positioning of the cap for safe and easy handling- Cartridge snap-fit for easy positioning and fixation- High gear ratio- One-hand operation

Key Properties

- Dispenser Type: Manual, two-component cartridge gun- Cartridge Capacity: 200ml (nominal)- Cartridge Ratios: 1:1, 2:1, 4:1, 10:1 (configurable)- Maximum Thrust: 5.2kN (520kg)- Tool Material: Cast aluminum and reinforced nylon- Weight: Approximately 1.35kg / 2.98lbs- Length: 366mm / 14.4in- Compatibility: Works with Sulzer Mixpac C and F System Cartridges and nozzles

Surface Compatibility

Compatible with surfaces that can be bonded or sealed using:- Epoxy Adhesives- MMA Adhesives (Structural Acrylic)- Seaming Adhesives- Plexus, Hi-Macs, Ultralok adhesives- Anaerobics & Threadlockers- Contact Cement & Spray- Cyanoacrylate (Instant)- Hot Melt- Sealants (MS, Silicone, Polyurethane)- Solvent Adhesives

Known backups / known substitutes

- Sulzer Mixpac DM2X series (newer generation replacement)- Sulzer Mixpac DMA/DMB 50 mL Manual Cartridge Gun- Infinity Bond DMA Cartridge Gun for 50 mL Adhesive Cartridges- Infinity Bond S-System 50 mL 10:1 Cartridge Gun- Infinity Bond Versa Manual Cartridge Gun- Sulzer Mixpac DP2X 200 (200ml pneumatic cartridge gun)- Sulzer Mixpac DP2X 400 (400ml pneumatic cartridge gun)- Nordson EFD 50 mL Manual Dispenser- COX™ CCM380- COX™ PowerFlow™ HP Combi- Albion 2-Part Dispensers for 200ml, 210ml, 215ml, 225ml, 250ml cartridges

Comparison Note

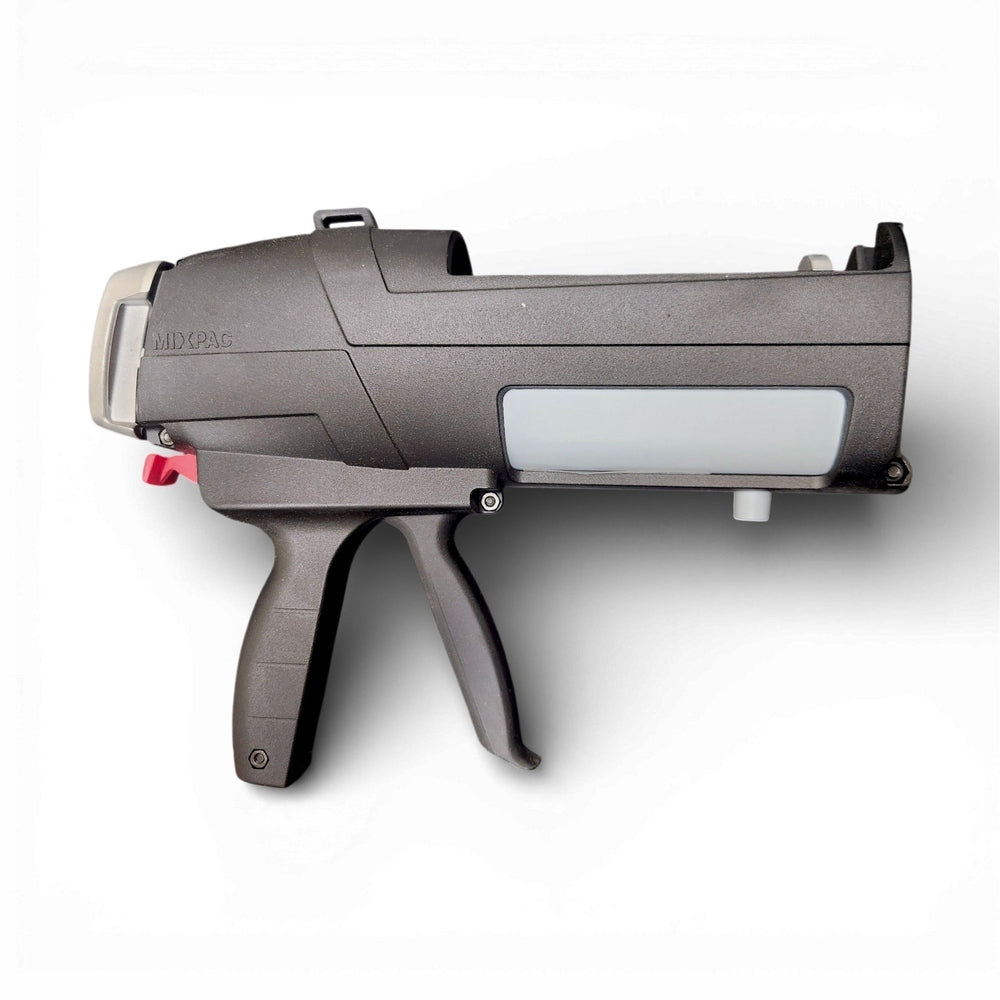

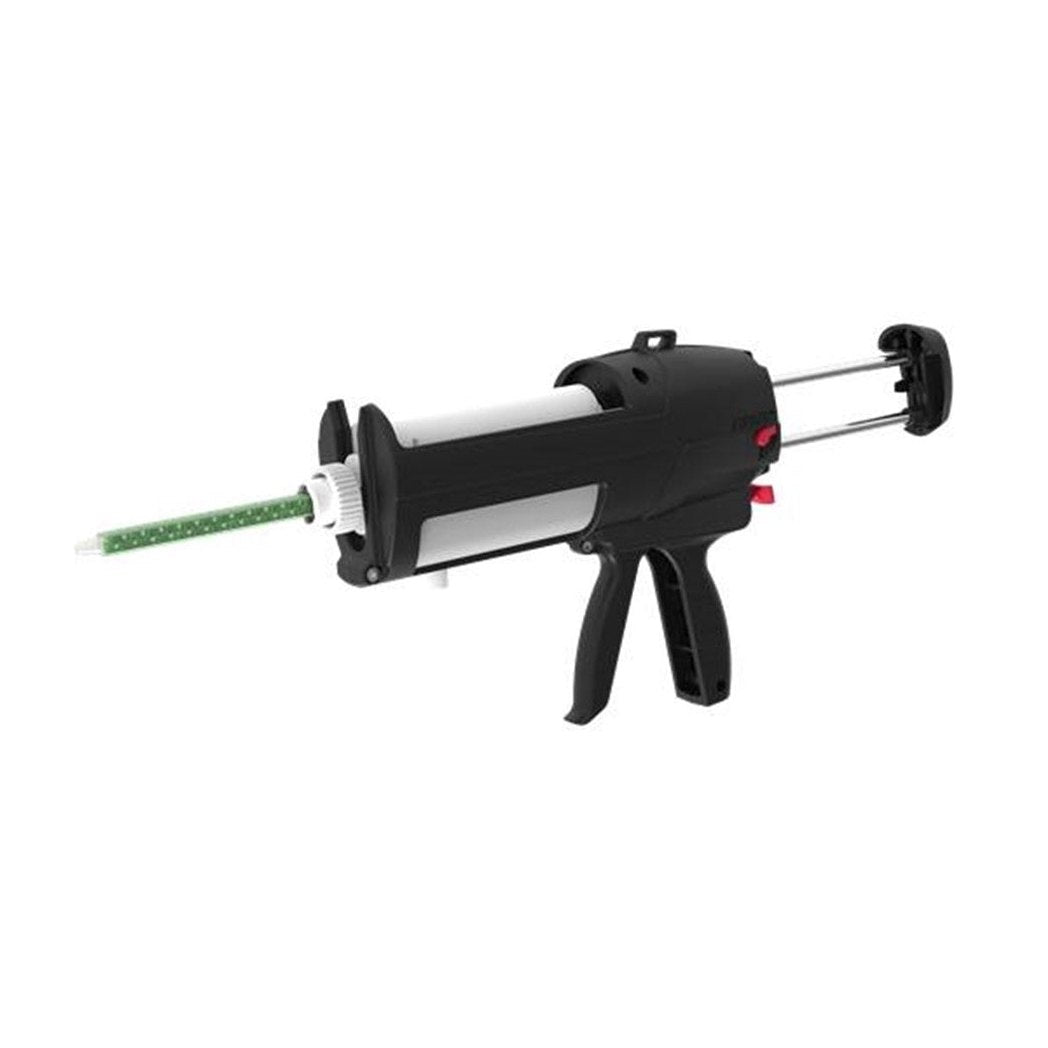

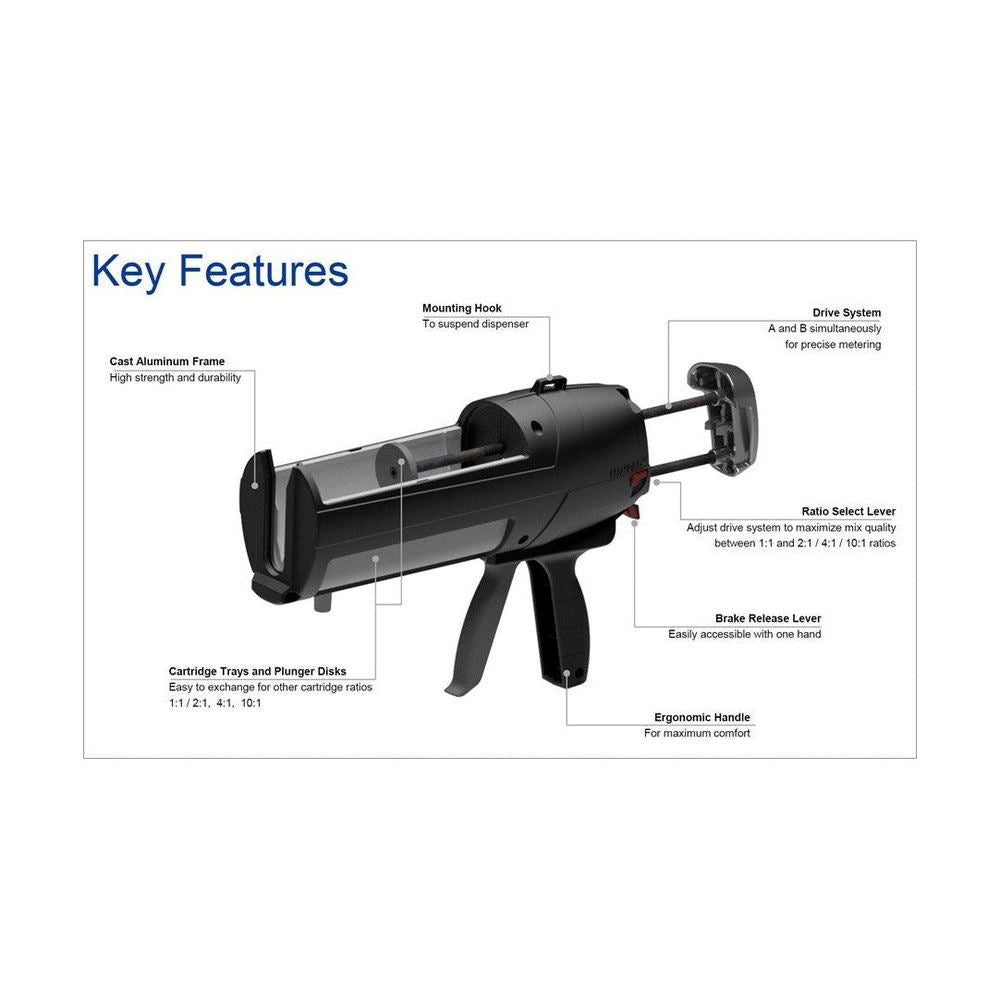

The Mixpac DM200 series was an industry-standard manual dispenser, but it has been largely replaced by the newer Sulzer Mixpac DM2X series. The DM2X offers enhanced flexibility with its multi-ratio nature, allowing a single system to be used for various ratio products. While the DM200 was known for its robust performance, some reports indicated potential issues with plastic housing and gear mechanism failure, with limited availability of replacement parts. For applications requiring higher durability, heavy-duty metal glue guns are available, though typically at a higher price point.
