Permabond Acrylic Medium Set 15-30 min TA4246 65ml Kit Initiator 46 10ml Included Permabond

PERMABOND TA4246 Medium Set 15-30 min Acrylic Adhesive Amber 65ml & 310ml Permabond

PERMABOND TA4246 Medium Set 15-30 min Acrylic Adhesive Amber 65ml & 310ml PerigeeDirect

PERMABOND TA4246 Medium Set 15-30 min Acrylic Adhesive Amber 65ml & 310ml

Name: PERMABOND TA4246 Medium Set 15-30 min Acrylic Adhesive Amber 65ml & 310ml
Brand: Permabond
SKU: PBND_TA4246_65ML_KIT
Price: 39.99 USD
Availability: InStock

Need Datasheets? Need Accessories?

• Click Here to visit our Datasheet Server (TDS, SDS, Fact Sheets, Selector Guides, etc)
• Check out Popular Accessories below by scrolling down just a bit on this page.

Size 65ml 310ml (10.5 oz)

Select the Kit needed 65ml Starter Kit with Initiator 46 65ml Starter Kit with Initiator 46 - Short Shelf Life (1-3 Mths Left) 65ml Starter Kit with Initiator 46 - Recently Expired 310ml Cartridge 310ml Starter Kit with Initiator 46 310ml Cartridge - Short Shelf Life (1-3 Mths Left) 310ml Cartridge - Recently Expired

Product variants

SKU: PBND_TA4246_65ML_KIT

$ 39.99 USD

8 units available

8 units are available

SKU

Type Acrylic (MMA)
Vendor Permabond
SKU PBND_TA4246_65ML_KIT

Permabond TA4246 Toughened Acrylic Adhesive Amber is a two component, room temperature curing structural adhesive. It is used on a wide variety of substrates or can be used to replace rivets or welding to give a more lightweight, durable assembly. It also has very good chemical resistance and excellent impact strength. 310 mL Cartridge. Its set time is 15-30 min

Three kits to consider:

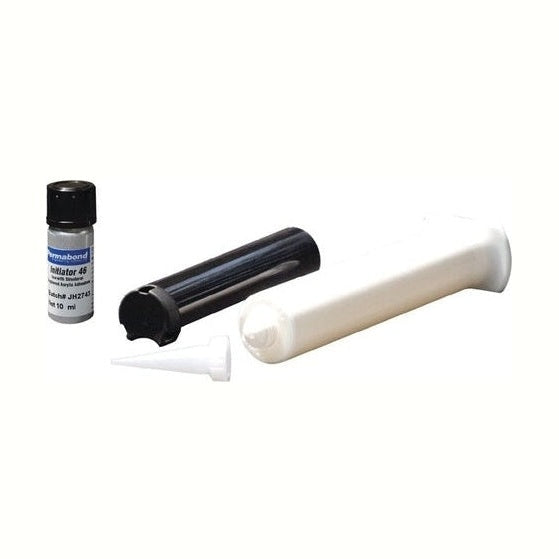

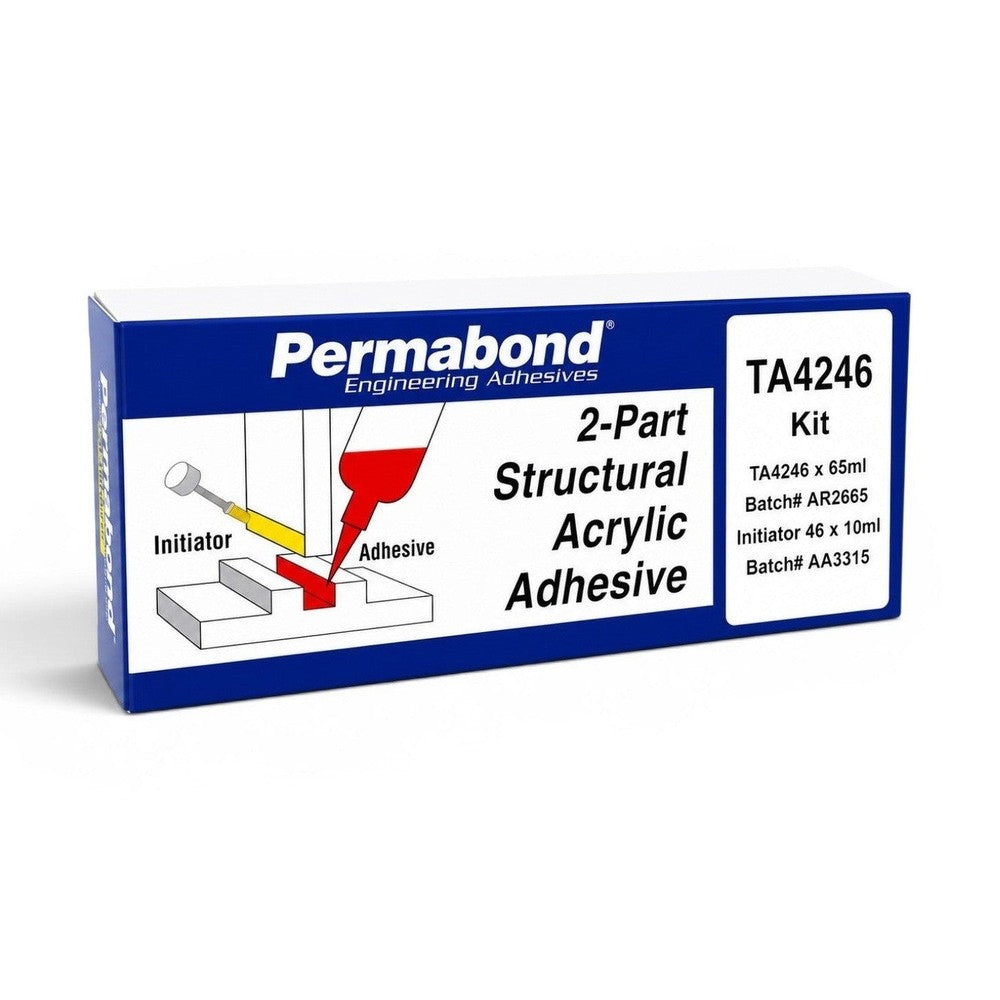

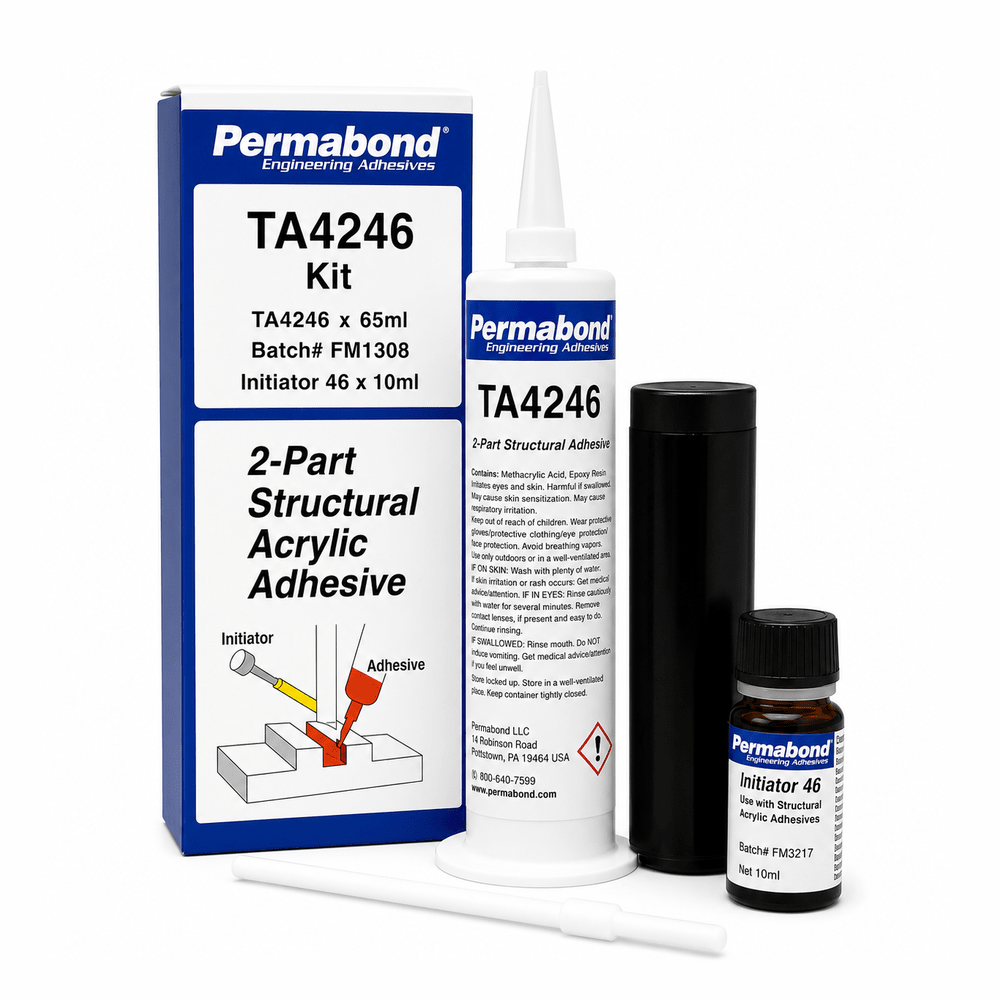

1) 65ml starter kit that includes one 65ml TA4246 cartridge, one 35ml Initiator 46, and one Hand Plunger and Nozzle

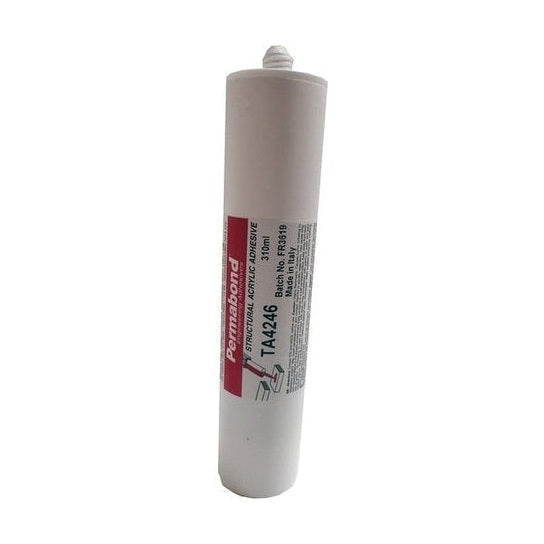

2) 310ml TA4246 Cartridge and Nozzle

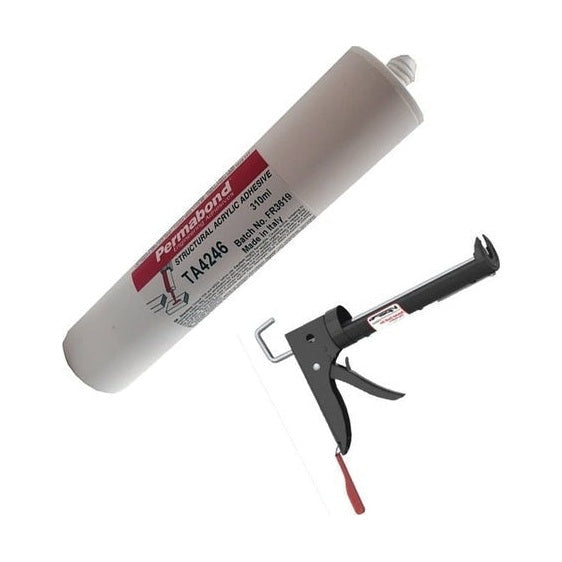

3) 310ml starter kit that includes one 310ml TA4246 cartridge, one 35ml Initiator 46, and one Caulking Dispenser and Nozzle

Table of Surface Activated Acrylic Adhesives, And the related Initiator Number that pairs with them

Grade	TA430 and Initiator 41 or Initiator 41M	TA435 and Initiator 41 or Initiator 41M	TA436 and Initiator 43	TA437 and Initiator 41 or Initiator 41M	TA439 and Initiator 41 or Initiator 41M*	TA4590 and Initiator 44	TA4246 and Initiator 46
Color	Amber	Amber	Amber	Orange	Amber	Blue	Amber
Feature	General Purpose	High Peel Strength	High Temp	Anaerobic Cure	Acid Free	Acid Free	MMA - very high strength
Visc. cP 2.5 rpm	50,000	70,000	60,000	130,000	-	90,000	-
Visc. cP 20 rpm	20,000	30,000	25,000	40,000	1000	20,000	28,000
Specific Gravity	1.1	1.0	1.1	1.1	1.0	1.1	1.0
Gap Fill inch (mm)	0.02 (0.51)	0.02 (0.51)	0.02 (0.51)	0.02 (0.51)	0.006 (0.15)	0.02 (0.51)	0.02 (0.51)
Handling Time	3 - 5 min	3 - 5 min	1 - 3 min	1 - 3 min 15 - 20 min**	40 - 75 sec	30 - 60 sec	2 - 4 min
Working Strength	40 - 60 min	30 - 60 min	30 - 60 min	30 - 60 min 60 - 120 min**	3 - 5 min	2 - 3 min	15 - 30 min
Full Cure	24 hr	24 hr	24 hr	24 hr	24 hr	24 hr	24 hr
Impact Strength	10 - 15 kJ/m²	10 - 15 kJ/m²	10 - 15 kJ/m²	10 - 15 kJ/m²	10 - 20 kJ/m²	15 - 20 kJ/m²	50 - 60 kJ/m²
Shear Strength Steel	2200-3600 psi 15 - 25 N/mm2	2200-3600 psi 15 - 25 N/mm2	2200-3600 psi 15 - 25 N/mm2	2000-3000 psi 14 - 20 N/mm2	2900-3600 psi 20 - 25 N/ mm2	2900-3600 psi 20 - 25 N/ mm2	4800-5100 psi 33 - 35 N/mm2
Peel Strength Aluminum	10 - 14 PIW 45-65 N/25mm	18 - 22 PIW 85-100 N/25mm	10 - 14 PIW 45-65 N/25mm	18 - 22 PIW 85-100 N/25mm	18 - 22 PIW 85-100 N/25mm	18 - 22 PIW 85-100 N/25mm	33 - 40 PIW 150-180 N/25mm
CTE	80 x 10-6 1/K	80 x 10-6 1/K	80 x 10-6 1/K	80 x 10-6 1/K	80 x 10-6 1/K	80 x 10-6 1/K	80 x 10-6 1/K
Thermal Conductivity	0.1 W/(m.K)	0.1 W/(m.K)	0.1 W/(m.K)	0.1 W/(m.K)	0.1 W/(m.K)	0.1 W/(m.K)	0.1 W/(m.K)
Dielectric Constant	4.6	4.6	4.6	4.6	4.6	4.6	4.6
Dielectric Strength	30 - 50 kVmm	30 - 50 kVmm	30 - 50 kVmm	30 - 50 kVmm	30 - 50 kVmm	30 - 50 kVmm	30 - 50 kVmm
Volume Resistivity	2 x 1013 Ohm.cm	2 x 1013 Ohm.cm	2 x 1013 Ohm.cm	2 x 1013 Ohm.cm	2 x 1013 Ohm.cm	2 x 1013 Ohm.cm	2 x 1013 Ohm.cm
Temperature Range	-65 to +250°F -55 to +120°C	-65 to +250°F -55 to +120°C	-65 to +300°F -55 to +150°C	-65 to +390°F -55 to +200°C	-65 to +330°F -55 to +165°C	-65 to +330°F -55 to +165°C	-40 to +250°F -40 to +120°C

Product Name

PERMABOND TA4246 Medium Set 15-30 min Acrylic Adhesive Amber 65ml & 310ml

Brief Description

PERMABOND TA4246 is a two-part, no-mix, room temperature curing structural acrylic adhesive. It is designed to form very high strength structural bonds with excellent environmental durability and chemical resistance. This adhesive offers high peel strength and exceptional impact resistance, making it an ideal alternative to traditional fastening methods like rivets or welding for creating lighter and more durable assemblies. It is typically used with Permabond Initiator 46.

Popular Applications & Uses

- Replacing rivets or welding in various assemblies to achieve lighter and more durable structures.- Automotive assembly and repair.- Bonding components in electronics and appliances.- Aerospace component bonding.- General industrial bonding applications.- Metal fabrication.- Composite bonding.- Structural bonding of metals, glass, composites, and plastics.

Industries that Commonly Use It

- Aerospace/Defense- Automotive Service/Repair- Chemical Industry- Construction/Building Services- Electrical Services or Products- Fabrication- General Manufacturing- Government & Military (NSN: 8040-01-580-8007)- Industrial Supply- LED/Electronics- Marine- Metal Fabrication- Plastic Fabrication- Transportation/Specialty Vehicle

Special and Unique Features

- Two-part, no-mix application, curing at room temperature when used with Initiator 46.- Very high shear and peel strength.- Excellent impact resistance.- Good chemical resistance.- Excellent environmental durability.- Can replace rivets or welding for lighter, more durable assemblies.- Fast cure at room temperature.

Key Properties

- Chemical Composition: Methyl Methacrylate (MMA).- Appearance: Amber liquid.- Viscosity @ 25°C: 15,000 - 35,000 mPa.s (cP).- Specific Gravity (resin): 1.0.- Maximum Gap Fill: 0.5mm (0.02 inches).- Fixture Time (aluminum, no gap) @23°C: 1-2 minutes.- Handling Time (aluminum, no gap) @23°C: 2-4 minutes.- Working Strength (aluminum, no gap) @23°C: 15-30 minutes.- Full Cure @23°C: 24 hours.- Shear Strength (Mild steel): 33-35 N/mm² (4800-5100 psi).- Shear Strength (Aluminium): 20-30 N/mm² (2900-4350 psi).- Peel Strength (Aluminium): 150-180 N/25mm (33-40 PIW).- Impact Strength (ASTM D-950): 50-60 kJ/m².- Temperature Range: -40°C to +120°C (continuous), up to 175°C for brief periods.- Dielectric Strength: 30-50 kV/mm.- Volume Resistivity: 2 x 10^13 Ohm.cm.

Surface Compatibility

- Metals: Mild steel, Aluminium, Galvanised steel, Brass, Copper (with light abrasion).- Composites.- Ceramics.- Thermoplastics: Nylon, PMMA (Acrylic), Polycarbonate, PVC, ABS (users should check compatibility with specific thermoplastics).- Glass.

Known backups / known substitutes

- Permabond TA459 with Initiator 41: A structural acrylic adhesive for bonding metals, ferrites, ceramics, and some thermoplastics.- Permabond TA4810: A 2-part, 1:1 toughened methacrylate adhesive for bonding thermoplastics, thermosets, metals, and composites.- Loctite 330: A general-purpose structural acrylic adhesive, often considered a comparable product in the market.

Comparison Note

Permabond TA4246 stands out as a no-mix, room temperature curing structural acrylic adhesive, offering a balance of high strength, excellent impact resistance, and good chemical durability. While other structural acrylics like Permabond TA459 and TA4810 exist with similar chemistries, TA4246's specific no-mix application and performance profile make it particularly suitable for applications where replacing mechanical fasteners like rivets or welding is desired for a more lightweight and aesthetically pleasing assembly. Its medium set time (15-30 min working strength) provides a good balance between rapid assembly and sufficient adjustment time.

Visit our datasheet server to download a variety of documents for this formula, as well as for all other formulas and products that Perigee Direct carries.

And especially if you are considering or comparing a few different formulas. Our datasheet server can help you download the necessary data to help u decide and keep your project going.

Click Here to visit our Datasheet Server (TDS, SDS, Fact Sheets, Selector Guides, etc)
