Product Name

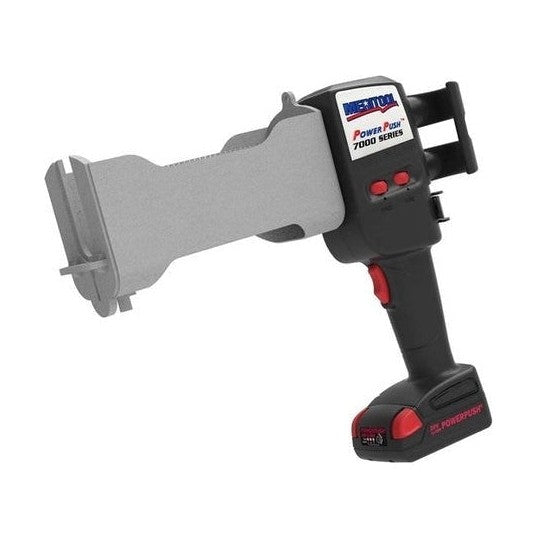

Meritool PowerPush 7000-400M-KIT Multi-Ratio 400ml Battery Powered Cordless Dispenser for 400ml C-system and F-System Cartridges - 1:1, 2:1, 4:1 & 10:1 Ratios
Brief Description
The Meritool PowerPush 7000-400M-KIT is a robust, battery-powered, cordless dispenser designed for the precise and controlled application of two-component (2K) adhesives and sealants. It accommodates 400ml side-by-side C-system and F-system cartridges and offers multiple mixing ratios (1:1, 2:1, 4:1, and 10:1) for versatility across various material types. This tool eliminates the need for air hoses, reduces hand fatigue, and provides consistent flow for medium to high viscosity materials.
Popular Applications & Uses
- Dispensing two-component epoxies, silicones, and other viscous materials.- Product assembly processes in industrial and manufacturing settings.- Outdoor construction applications.- Bonding various substrates like concrete, automotive components, plastics, rubber, metal, wood, and glass.- Gap filling for thermal transfer, isolation, and other mechanical properties.- Sealing and bonding in EV battery and solar panel manufacturing.- Precise application of beads or dots of adhesive.
Industries that Commonly Use It
- General Manufacturing- Construction/ Building Services- Automotive Service/Repair- Metal Fabrication- Cabinet & Woodworking- LED/Electronics- Energy (e.g., EV batteries, solar panels)- Fabrication- Distributers & Resellers- Engineering Services
Special and Unique Features
- **Multi-Ratio Capability:** Easily adapts to 1:1, 2:1, 4:1, and 10:1 mixing ratios for diverse material requirements.- **Cordless & Battery Powered:** Offers mobility and ease of use without the need for compressed air hoses, powered by an 18V/20V Li-Ion battery.- **High Dispensing Force:** Provides up to 1,600 lbs (7.0kN) of force, ideal for handling highly viscous materials.- **Anti-Drip/Reverse Rod Function:** The rod retracts slightly at the end of a cycle to prevent drips and oozing.- **Dual Drive System:** Features a unique dual-drive system for unmatched on-ratio performance and robust control over coaxial dual cartridges.- **Fast Charging:** The included charger provides an ultrafast 30-minute charge time.- **Robust Construction:** Features a durable aluminum housing and steel/aluminum frame for long service life.- **Adjustable Speed Control:** Allows for controlled flow and precise application.
Key Properties
- **Capacity:** 400ml (14 Ounce) for C-system and F-system side-by-side dual cartridges.- **Mixing Ratios:** 1:1, 2:1, 4:1, 10:1.- **Battery:** 18V/20V Li-Ion (2.0Ah or 4.0Ah options).- **Dispensing Force:** Up to 7.0 kN (1,600 lbs).- **Speed:** Up to 4.5mm/second.- **Viscosity Suitability:** Suits medium and high viscosity materials.- **Weight:** Approximately 3.8kg (with battery).- **Frame Material:** Steel/Aluminium.- **Handle Material:** PC/ABS.
Surface Compatibility
The dispenser itself is a tool, but the adhesives and sealants it dispenses are compatible with a wide range of surfaces, including:- Concrete- Metals (e.g., Aluminum)- Plastics (e.g., Plexiglass, Polycarbonate, ABS, Polyamide PA, PVC, PE, PP, POM, PTFE)- Rubber- Wood- Glass- Various industrial and manufacturing materials requiring strong, reliable bonds.
Known backups / known substitutes
- **Manual Cartridge Guns:** Less powerful, prone to hand fatigue, and less consistent flow.- **Pneumatic Cartridge Guns:** Require an air compressor and hoses, can have air surge issues.- **Other Brands of Battery-Powered Dispensers:** Such as medmix MIXPAC™ DB2 series or MK™ 2-component battery dispensers.- **Automated Dispensing Systems:** For high-volume, high-precision industrial applications, often integrated with robotics.
Comparison Note
The Meritool PowerPush 7000-400M-KIT stands out from manual and pneumatic dispensers due to its cordless portability, high dispensing force, and precise flow control, making it ideal for viscous two-component materials without the drawbacks of air lines or hand fatigue. Its multi-ratio capability and compatibility with common C-system and F-system cartridges offer significant versatility compared to single-ratio or proprietary cartridge systems. It is positioned as a powerful and robust solution for demanding industrial adhesive and sealant applications.
