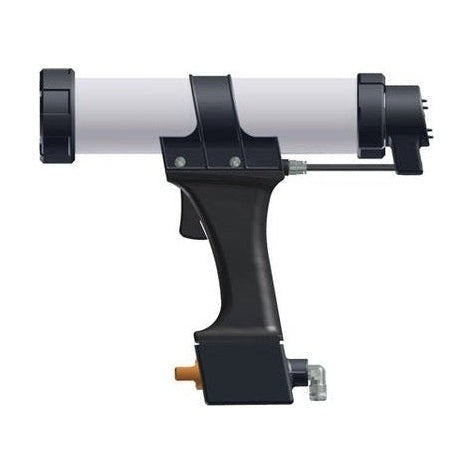

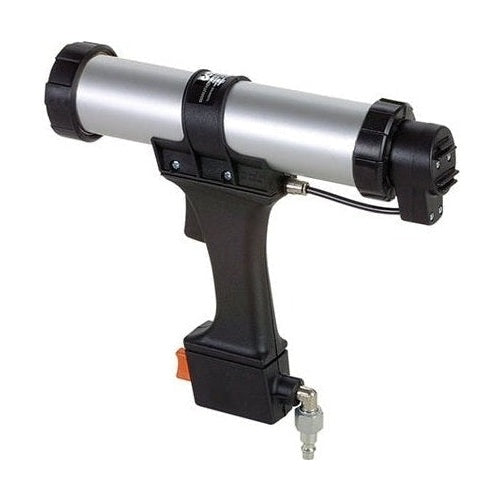

Cox Airflow 2 Cartridge - Pneumatic 1-Component Bead Dispenser for 310 & 400mL cartridges (DP1C 310-CA-120-211)

In stock
SKU: COX_DP1C 310-CA-120-211
$ 129.99 USD
Currently Out of Stock Place Order and Call for ETA

Product details

  • Type Dispensers Pneumatic
  • Vendor Cox Applicators
  • SKU COX_DP1C 310-CA-120-211
  • Barcode COX_DP1C 310-CA-120-211
Description

Cox Airflow 2 Cartridge - Pneumatic 1-Component Bead Dispenser for 310 & 400mL cartridges

Features

  • Glass reinforced nylon handle - Ergonomically designed for comfort
  • Variable speed regulator - For precise control and smooth material flow
  • Anodized aluminum barrel - Lightweight and long life
  • 6.8bar (100psi) regulator
  • Direct acting plunger - Air pressure applied direct to plunger
  • Swivel hose -For easy connection
  • Warranty up to 2 years*

Applications

Bonding
Sealing



Specifications

  • UPC: 7-17647-61301-1
  • Part Number: DP1C 310-CA-120-211
  • Old/Alt Part Numbers:  61001  and  DP1 61001
  • Weight: 0.73-0.81kg / 1.6-1.7lbs
  • Frame Length: 228mm-267mm / 9.0in-10.5in
  • Maximum Thrust: 1.2kN
  • Maximum Pneumatic Pressure: 6.8bar (100psi)
  • Handle Material: Glass Filled Nylon
  • Barrel Material: Anodized Aluminum
  • Tool Component Approvals: CE, REACH
  • Cartridge Capacity:310mL (10.5oz), 400mL (13.5oz)
  • Viscosity: Low
  • Standard Color: Black/Grey
  • Nozzle Dimension: ø38mm / 1.5in

Compatible cartridges:

Compatible: 310mL

mm inch
l
216mm
8.5inch
a
⊘
48.2mm
⊘
1.8inch

Compatible: 400mL

mm inch
l
256mm
10.1inch
a
⊘
49.0
⊘
1.9inch
