3M Scotch-Weld Aerospace EC-2216 B-A High Performance Flexible Cold-Resistant Shock Resistant 90-Minute Set Epoxy

MMM-3M Scotch-Weld

SKU: 3M_EC2216_050ML

  • $ 249.99
    (We can use your FedEx/UPS acct: Type-in the needed Acct # & Service Level)


    3M ScotchWeld EC-2216 B/A High Performance Flexible Cryogenic Cold-Resistant Shock-Resistant Gray 90 Minute Setting Epoxy Adhesive is a multipurpose, two-component, room temperature curing Epoxy adhesive of excellent strength, cryogenic-level cold-resistance, vibration-resistance, and shock-resistance. It is an excellent bonder for steel (ferrous and stainless), aluminum, many types of plastics, rubbers, woods, stone, concrete, masonry, and ceramics.  Works in a mix ratio of 2:3, and delivers exceptional performance with a shear strength of 3200 psi and peel strength of 25 piw.

    Scotch-Weld epoxy adhesive EC-2216 B/A is identical to 3M™ Scotch-Weld™ Epoxy Adhesive 2216 B/A in chemical composition.  The difference is that Scotch-Weld epoxy adhesive EC-2216 B/A has been
    labeled, packaged, tested, and certified for aircraft and aerospace applications.



     Key Features:

    • 90 Min Working Time, dries gray
    • Excellent adhesive for steel (ferrous and stainless), aluminum, many types of plastics, rubbers, woods, stone, concrete, masonry, and ceramics
    • Excellent Shear and Peal Strength, and Electrically Insulating (does not conduct)
    • Higher Viscosity adhesive (70,000 to 100,000 cps)
    • Excellent Cryogenic and Extreme Cold Temp Resistance -423F to +180F
    • Exceptional resistance to vibration and shock

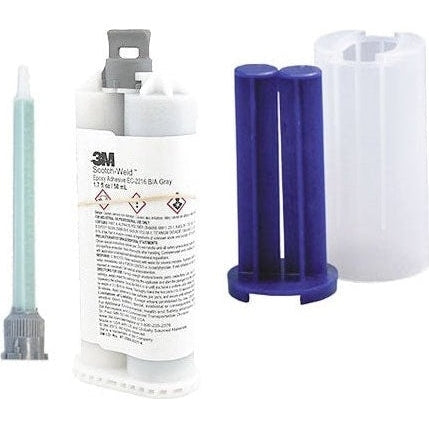

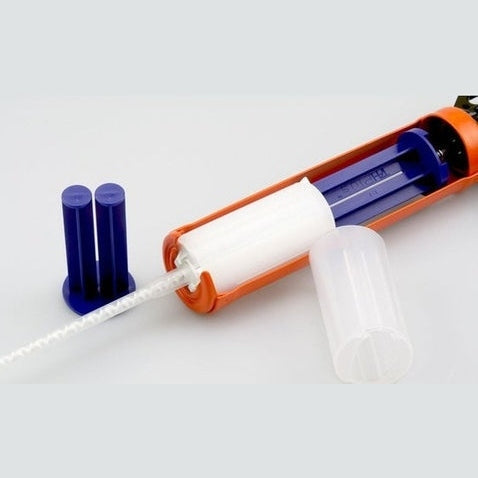

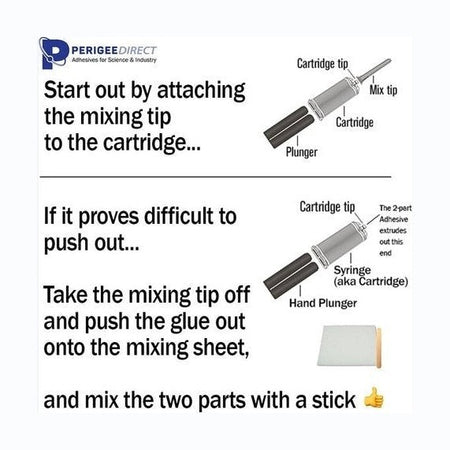

     Please Note: These cartridges are designed to work best with a 50ml cartridge Dispenser.  This 3M cartridge will fit into a 1:1  ‘Round-Back’ Dispenser. It is strongly advise you use a 50ml Dispenser for this cartridge.

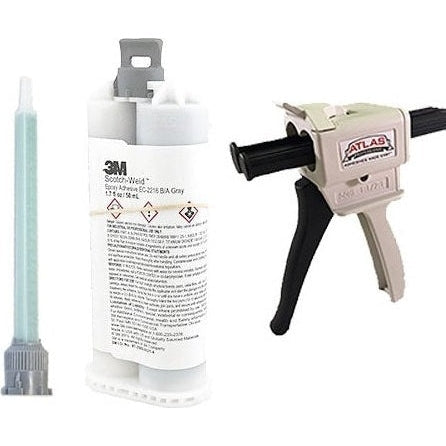

    If you do not have one one of these dispensers, please check out some of the other product options to the right.  We do sell this as a kit with an included Dispenser.  Also, separately, the MixPac 50ml DS53 1:1 / 2:1 / 3:2 Dispenser is a great applicator for this adhesive.

    Product Performance Specs:

    • Brand: 3M Scotch-Weld
    • 3M Formula: EC-2216
    • Material Compatibility: steel (ferrous and stainless), aluminum, many types of plastics, rubbers, woods, stone, concrete, masonry, and ceramics
    • Cure Time: 60 minutes (200f) to 7 days (75f)
    • Approx Working Life: 90 min at 75f
    • Color: Gray
    • Mix Ratio: 3:2 (a:b)
    • Product Form: thick Liquid

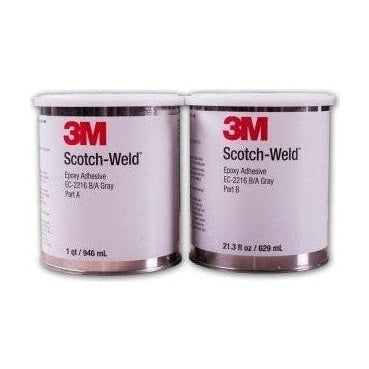

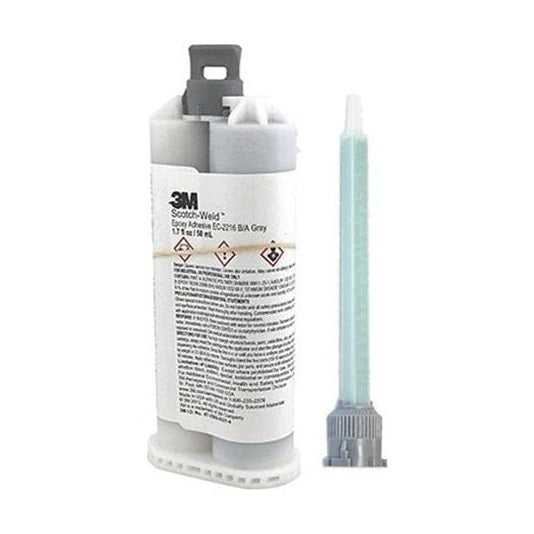

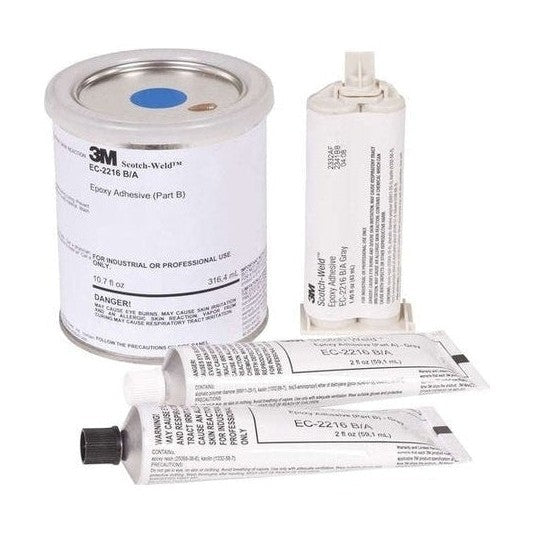

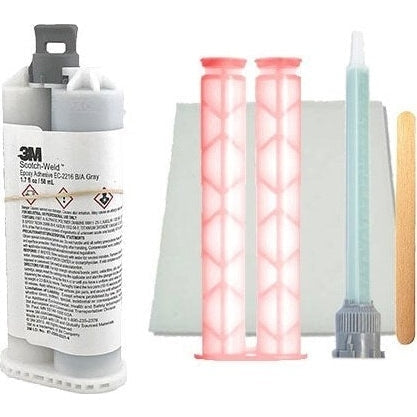

    • Package Type: 3.1oz Tube Kit, 50ml Cartridge
    • Shear Strength: 2400 (-423f) to 3200 psi (75f)
    • Peel Strength: 25 piw
    • Shore Hardness: 55-60 Shore D
    • Viscosity Class: Thick Viscosity
    • Viscosity Measurement: 80000 to 100,000 cPs
    • Shelf Life: 15 mo
