MIXPAC Pneumatic 2-Component Cartridge Dispenser DP2 50-16 Series - 50mL (Configurable for All-Ratios 1:1, 2:1, 3:1, 3:2, 4:1, 10:1)
Need Datasheets?
Click Here to visit our Datasheet Server (TDS, SDS, Fact Sheets, Selector Guides, etc)
Regular price
$ 199.99 USD
Call for ETA
MixPac TS408 (also known as DP2 50) series pneumatic cartridge dispenser is an industry-standard go-to dispenser for industrial and professional two-part adhesive dispensing from 35ml, 50ml & 75ml cartridges. It offers a durable, lightweight design perfect for mid-to-high volume applications. And also enables precise metered/pre-set volumes that are dispensed per 'squeeze' of the trigger.
MK TS408 series 35ml, 50ml & 75ml pneumatic (air pressure force) cartridge dispenser is configurable to be used for all popular ratios: 1:1, 2:1, 3:1, 3:2, 4:1 and 10:1 ratio configurations. This pneumatic dispenser works with most standard 50ml cartridges including the Sulzer C and F series.

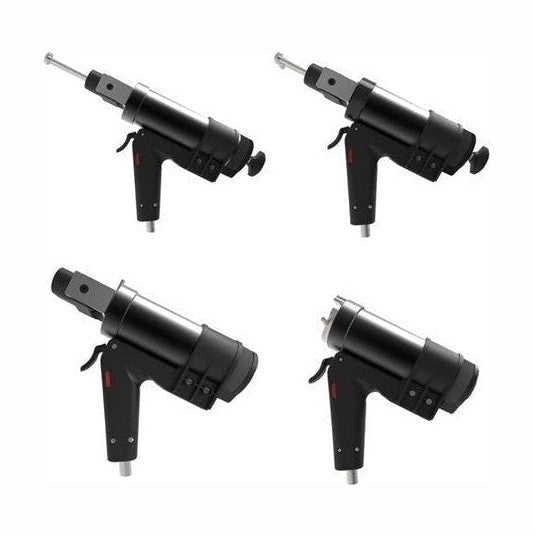

| MIXPAC Part Number | Older MK Krueger Part Number | Mix Ratios | 50ml Cartridge Designs | Recommended Viscosity |
|
DP2 50-16-100 |
TS408 MY-8 | 1:1, 2:1, 3:2 | A-series & B-series (Square-Back) cartridges 50ml & 41.5ml | Low / Med / High Viscosity |

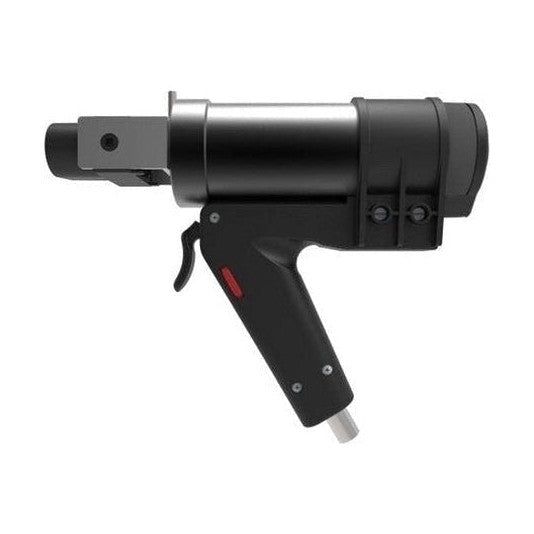

| DP2 50-16-200 | TS408 EM | 1:1, 2:1, 3:1, 3:2 | A-series & B-series (Square-Back) & S-series for 2:1 AND 3:2 ratios only cartridges 50ml sizes | Low / Med / High Viscosity |

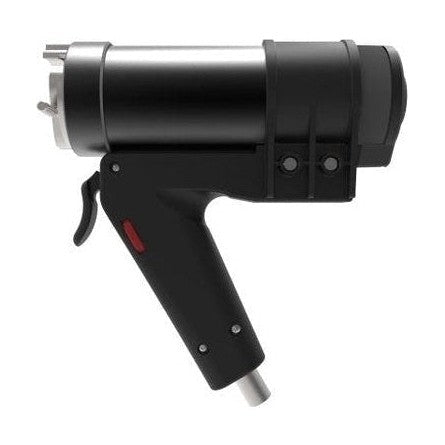

| DP2K S50-10-130-001 |
TS408 HM-101 | 10:1 | S-Series (Round-Back) cartridges 50ml size | Low / Med Viscosity |

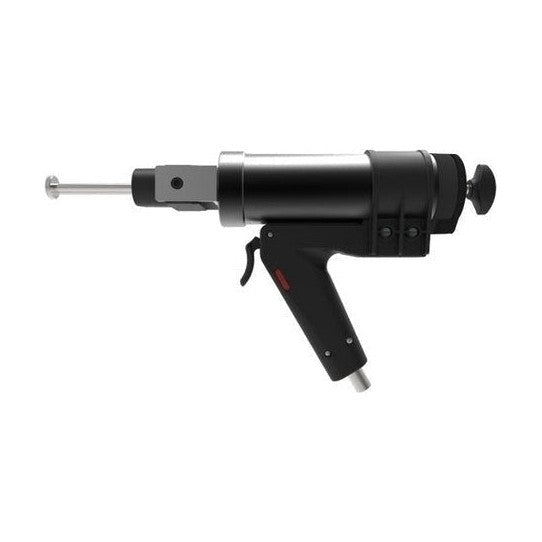

| DP2 50-16-400 |
TS408 BM | 4:1, 10:1 | A-system and B-system (Square-Back) 50ml sizes | Low / Med / High Viscosity |
MK TS408 Series Pneumatic Cartridge Dispenser Works With:
- MIXPAC A System Square-Back Cartridges
- MIXPAC B System Square-Back Cartridges
- MIXPAC S System Round-Back Cartridges
- Atlas Professional 50ml Square-Back Cartridges
Features of the MK TS408 Series Cartridge Dispenser
- Lightweight: 0.73kg / 1.6lbs
- Maximum Thrust: 1.3kN
- Maximum Pneumatic Pressure: 8bar / 116psi
- Air Consumption: 40 litres/min
- Handle Material: Reinforced Nylon
- Cartridge Holder Material: Reinforced Nylon
- Tool Component Approvals: CE
- Cartridge Capacity: 50mL (1.8oz)
- Cartridge Ratio: 10:1
- Viscosity: Low
- Standard Color: Black
- One-Hand Pressure Adjustment
- Anti-Drip Function
- Quick Cartridge Exchange
- Reinforced Nylon Handle
Compatible with all standard mix ratios
- Optimal dispenser for each standard 35ml, 50ml, 75ml 2-component ratio (1:1, 2:1, 3:1, 3:1, 4:1, 10:1)
