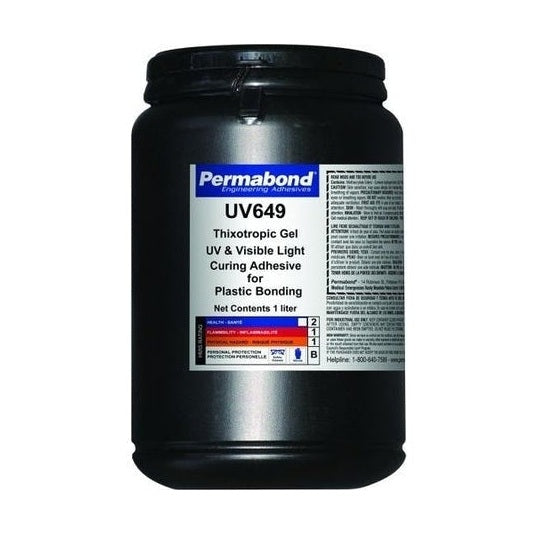

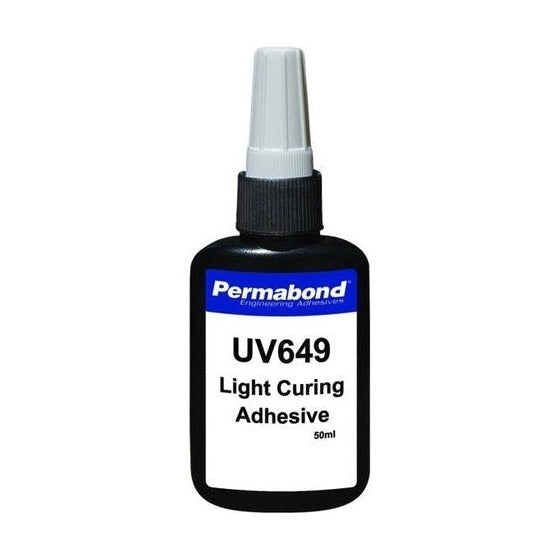

Permabond UV649 clear transparent UV glue thick gel, non-sag, non-drip vertical and wall glue
Need Datasheets?
Click Here to visit our Datasheet Server (TDS, SDS, Fact Sheets, Selector Guides, etc)Volume Discounts
6 units @ $ 31.35 ea, saving 5%
12 units @ $ 30.36 ea, saving 8%
36 units @ $ 29.70 ea, saving 10%
Need Accessories? Don't forget to grab them.
PERMABOND UV649 is a single part, fast setting, and UV curable adhesive designed specifically for bonding plastics. This material has excellent adhesion to a variety of plastics including polycarbonate as well as metals and glass.
Permabond UV649 has very high shear strength, elongation and impact resistance making it ideal for applications that require substrates with different coefficients of thermal expansion. Permabond UV649 has good depth of curing capabilities which make it suitable for use as a sealant.
- Cure on demand
- Non-drip
- High shear strength
- Fast curing with low-power lamps
- 100% solids, no solvents
- Excellent adhesion to plastics
Physical Properties of Uncured Adhesive
| Chemical Composition | Methacrylate ester |
| Viscosity @ 25°C |
20rpm: 20,000-30,000 mPa.s (cP) |
| Specific Gravity | 1.1 |
Performance Characteristics
|
UV Curing Wavelength |
365 - 420 nm |
|
UV Curing Time (by strength of light) |
Low power 4mW/cm² battery lamp: 10 secs |
|
Tensile Strength |
2200psi (15 N/mm^2) |
|
Shear Strength |
Polycarbonate >9 N/mm² (>1300 psi)* Glass to Steel: 900psi to 1000psi 6 to 7 N/mm²) |
|
Temperature Resistance |
212f (100C) 60% strength 302f (150C) 18% strength |
|
Appearance |
High Clarity, Colorless, Optically Clear, Transparent |
|
Elongation (ISO37) |
>70% |
|
Hardness (ISO868) |
50 to 65 Shore D |
