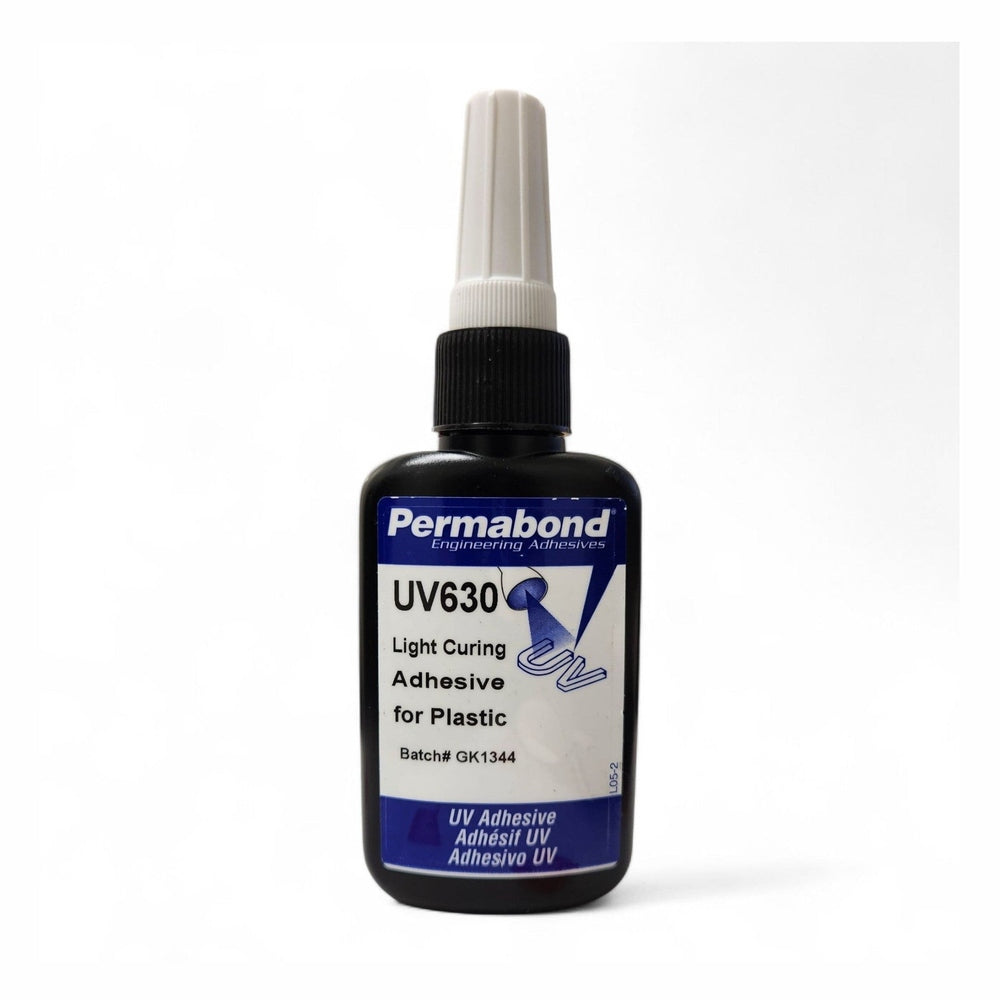

Permabond UV630 thin, low viscosity Medical Grade UV glue great for clear plastics and clear glass
Need Datasheets?
Click Here to visit our Datasheet Server (TDS, SDS, Fact Sheets, Selector Guides, etc)PERMABOND UV630 is a single part, fast setting, and UV curable adhesive designed specifically for bonding plastics. This material has excellent adhesion to a variety of plastics including polycarbonate. Permabond UV630 has very high shear strength, elongation and impact resistance making it ideal for applications that require substrates with different coefficients of thermal expansion
- Cure on demand
- Medical Grade / Medical Device Approved adhesive
- High Clear UV resistant when dried
- Low Viscosity, High-Flowability, will drip
- Excellent bonds with Clear Plastics like Polycarbonate, PVC Clear, Acrylic, etc
- Wicking into small cracks and crevices
- High shear strength
- Fast curing with low-power lamps
- 100% solids, no solvents
- Excellent adhesion to plastics
Physical Properties of Uncured Adhesive
Chemical Composition | Methacrylate ester |
Viscosity @ 25°C |
20 rpm: 200 to 300 mPa.s (cP) |
Specific Gravity | 1.0 |
Performance Characteristics
UV Curing Wavelength |
365 - 400 nm |
UV Curing Time (by strength of light) |
Low power 4mW/cm² battery lamp: 5 secs |
Tensile Strength |
1450psi (10 N/mm^2) |
Shear Strength |
Glass to Steel: 900psi to 1000psi 6 to 7 N/mm²) Polycarbonate: >9 N/mm² * (>1300 psi) |
Temperature Resistance |
212f (100C) 60% strength 302f (150C) 18% strength |
Appearance |
High Clarity, Colorless, Optically Clear, Transparent |
Elongation (ISO37) |
110% |
Hardness (ISO868) |
60 Shore D |
