Product Name
MixPac MFH 08-32T F-System Mixing Nozzle for 1:1 & 2:1 ratio larger 2-part cartridges (200ml, 225ml, 250ml, 380ml, 400ml)
Brief Description
The MixPac MFH 08-32T F-System Mixing Nozzle is a high-performance, disposable static mixer designed for the efficient and thorough mixing and dispensing of two-part adhesives and sealants. It features a Helix/Round design with 32 elements, ensuring optimal mixing for a variety of materials. This nozzle is specifically engineered for use with larger F-System cartridges, accommodating 1:1 and 2:1 mix ratios in volumes such as 200ml, 225ml, 250ml, 380ml, 400ml, and 490ml.
Popular Applications & Uses
- Dispensing two-part epoxy, polyurethane, silicone, acrylic, methacrylate, and urethane adhesives and sealants.- Electronics assembly and communications equipment manufacturing.- Aerospace and aircraft assembly and repair.- Automotive manufacturing and repair.- Wind turbine assembly and maintenance.- Home building and general construction projects.- Concrete repair and restoration.
Industries that Commonly Use It
- Aerospace/Defense- Automotive Service/Repair- Construction/Building Services- Concrete- Electrical Services or Products (including electronics and communications)- Energy (specifically wind turbine assembly and repair)- General Manufacturing- Industrial Supply- LED/Electronics- Transportation/Specialty Vehicle- Engineering Services- Distributers & Resellers
Special and Unique Features

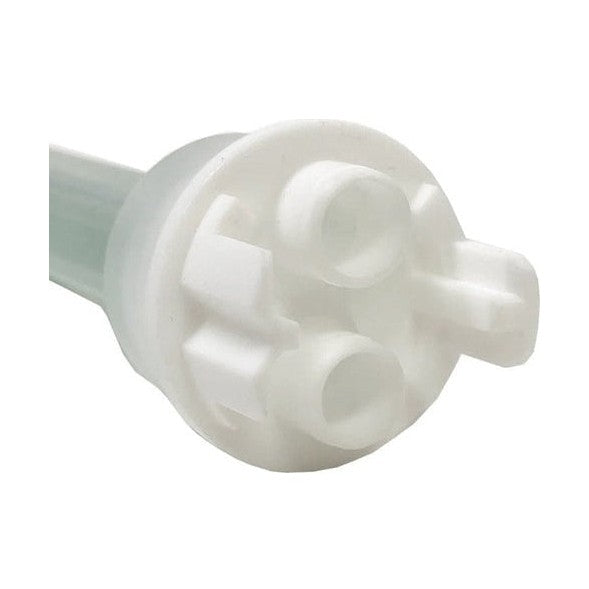

- **Efficient Helix Design:** Features 32 helical mixing elements for superior and consistent mixing performance of two-component materials.- **F-System Connection:** Ensures a secure, interlock attachment to MixPac F-System cartridges without the need for additional tools.- **Dual-Hole Inlet:** Prevents cross-contamination of the two components prior to mixing, extending adhesive shelf life and reducing clogging.- **Stepped Outlet Tip:** Allows for precise application and can be cut back to increase orifice size for higher flow rates or used with luer adapters for fine dispensing tips.- **Wide Ratio Compatibility:** Designed for both 1:1 and 2:1 mix ratios, offering versatility for various adhesive types.- **Disposable:** Made from polypropylene, these nozzles are designed for single-use, ensuring cleanliness and preventing curing issues.
Key Properties
- **Mixer Type:** Helix/Round Static Mixer- **Number of Elements:** 32- **Inner Diameter:** 8mm (0.315 inches)- **Length:** 297mm (11.693 inches)- **Compatible Ratios:** 1:1 and 2:1- **Housing Material:** Polypropylene (PP)- **Element Material:** Polypropylene (PP)- **Tip Style:** Stepped Tip- **Connection Type:** F-System Interlock- **Waste Volume:** Approximately 11.85 ml
Surface Compatibility
The nozzle itself is compatible with a wide range of two-part adhesive chemistries, including:- Epoxies- Polyurethanes/Urethanes- Silicones- Acrylics/Acrylates/MMAs (Methyl Methacrylates)- Other high viscosity adhesives and sealantsThe compatibility with specific surfaces depends on the adhesive or sealant being dispensed, not the nozzle itself.
Known backups / known substitutes

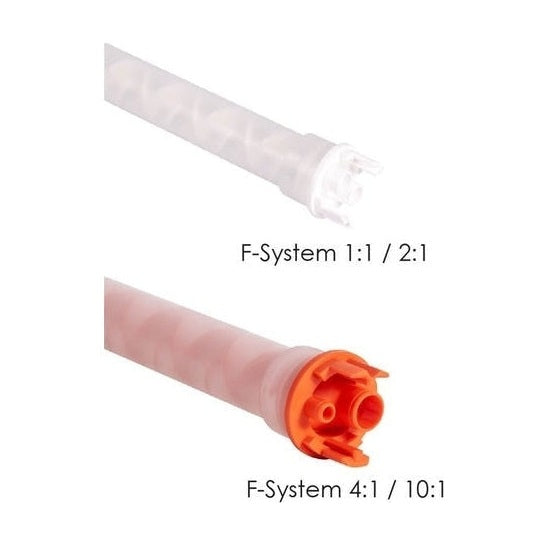

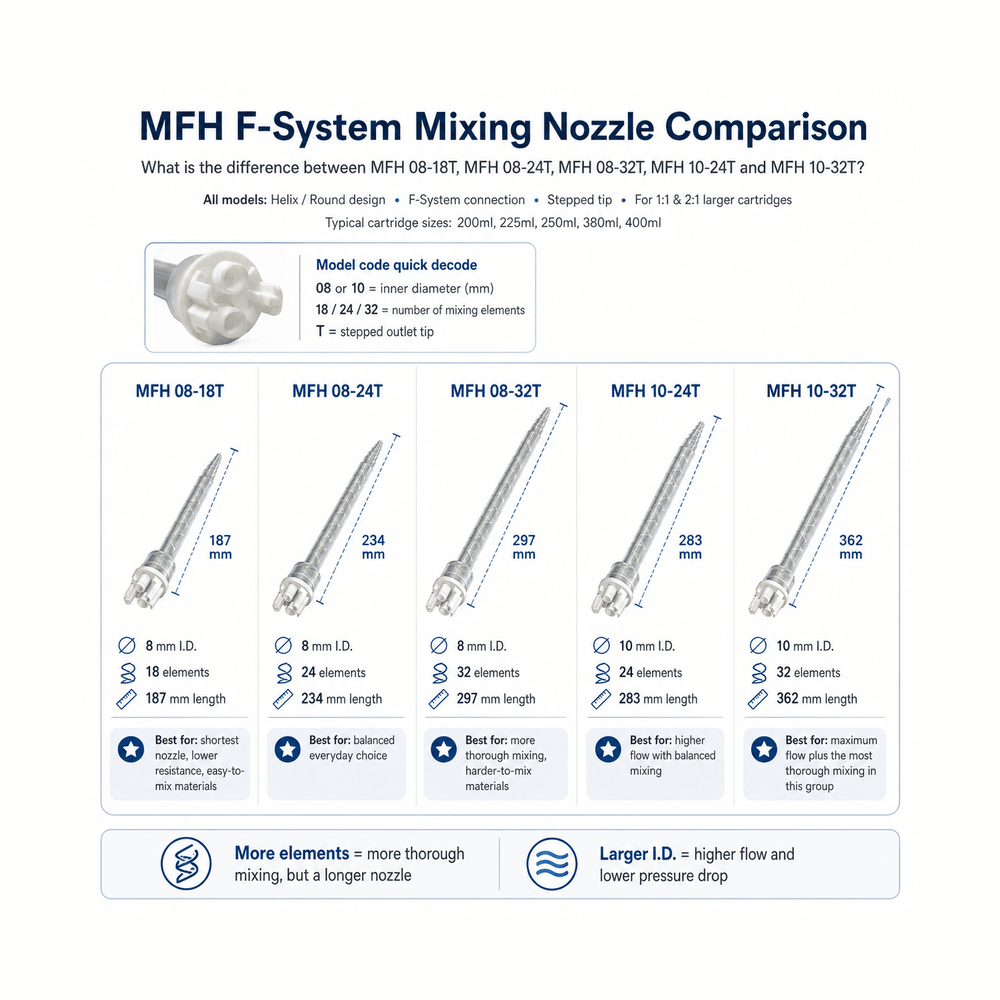

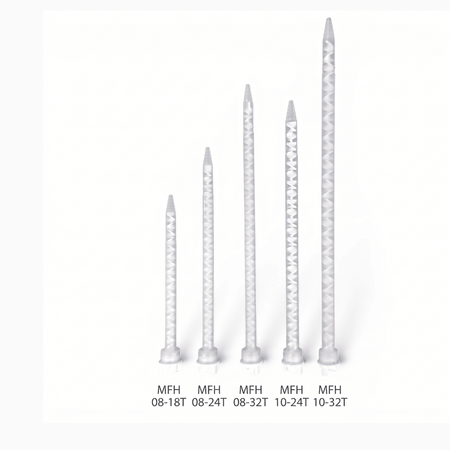

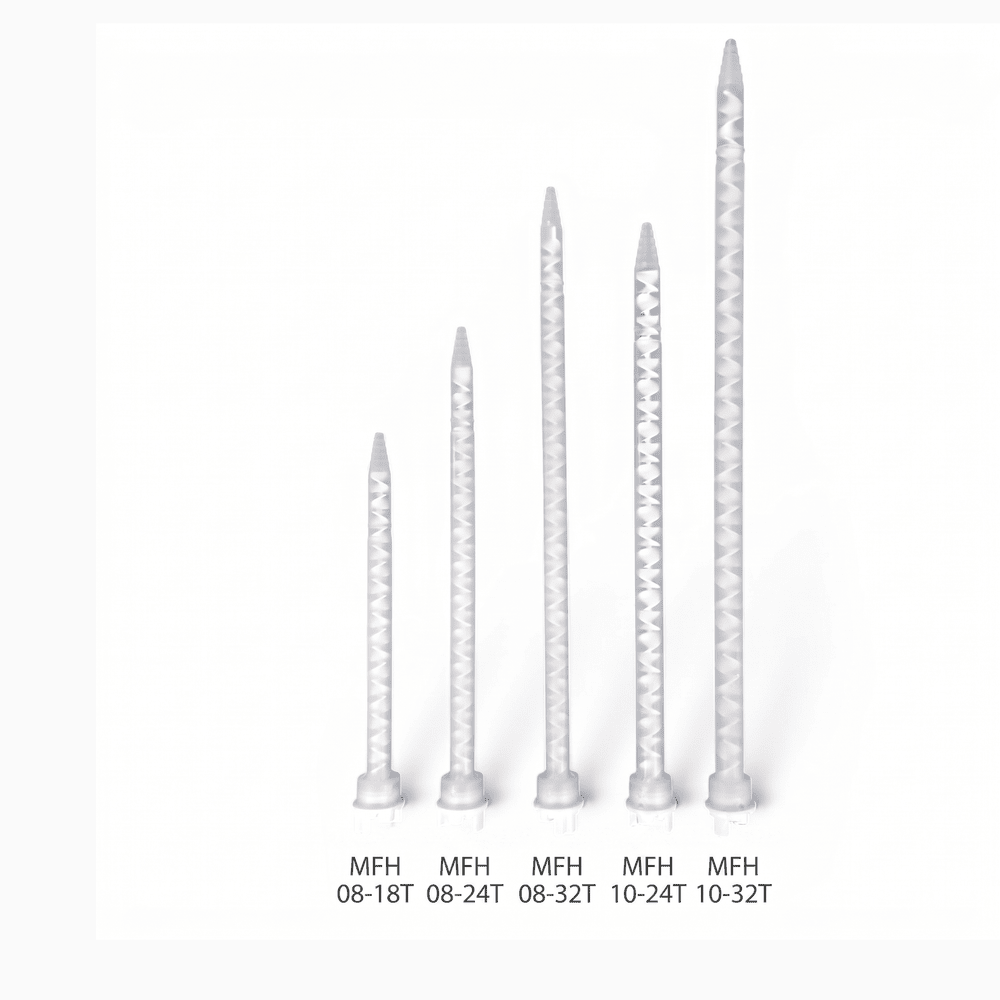

- **MixPac MFH 08-24T F-System Mixing Nozzle:** A similar F-System nozzle with 24 mixing elements, offering slightly less mixing for materials that require fewer elements.- **MixPac MFHX Series F-System Nozzles:** For applications requiring different mix ratios (e.g., 4:1 or 10:1), such as the MFHX 08-32T or MFHX 08-24T.- **MixPac MFQX Series F-System Nozzles:** Square/Quadro mixing nozzles for F-System cartridges, offering a different mixing geometry.- **Other brands of static mixers compatible with MixPac F-System cartridges:** While MixPac is a leading brand, other manufacturers may offer compatible static mixers.
Comparison Note
The MixPac MFH 08-32T stands out due to its 32-element helix design, providing excellent mixing for challenging or high-viscosity two-part materials in 1:1 and 2:1 ratios. Compared to nozzles with fewer elements (e.g., MFH 08-24T), the 32 elements ensure a more homogeneous mix, crucial for optimal performance of the adhesive. Its F-System interlock connection and dual-hole inlet offer superior reliability and prevent premature curing or cross-contamination compared to simpler mixer designs. While other MixPac F-System nozzles exist for different ratios or mixing geometries (MFHX, MFQX), the MFH 08-32T is specifically optimized for the common 1:1 and 2:1 ratios with a high element count for thorough blending.
