Maven MMA8105 GB - Metal, Nylon, and Plastics MMA with embededed Glass Microbeads - Gray , 5-Minute Set, Exceptional Strength & Elongation
Need Datasheets? Need Accessories?
• Click Here to visit our Datasheet Server (TDS, SDS, Fact Sheets, Selector Guides, etc)• Check out Popular Accessories below by scrolling down just a bit on this page.
Regular price
$ 19.99 USD
4 units available
Maven MMA8105 is an advanced direct-to-metal, Nylon, and Hard Plastics bonding low halogen two-part methacrylate structural adhesive. It is designed for the structural bonding of most all popular metals, All Nylon types, and most hard plastics, as well as composites and laminate assemblies. It is Reinforced with Glass-Microbeads (GB stands for Glass Beads) to enforce a minimum bond gap/width and to enhance the strength and toughness of the structural glue.
It has a fast-set time of 5-7 minutes, with handling streanth around 15-20 minutes
Compatible Surfaces
- Raw Metals- Aluminum, Stainless Steel, Raw Steel, etc.
- Coated Metals- Hot Dipped, Galvanized, Electrogalvanized, Powder Coated or E-Coated Metals
- Theromoplastics – ABS/ABS Blends, Acrylics, Polymides/Nylons, PBT, Polycarbonate, Rigid PVC, TPU
- Composites -DCPP, FRP, Gelcoat, Phenolics, Epoxy Based Composites, RIM
- Optimized for Direct Nylon bonding (all nylon types, Nylon-6, Nylon-12, etc)
- Thermoplastics ABS/ ABS Blends, Acrylics, Polyamides/Nylons, PBT, Polycarbonate, Rigid PVC, TPU
- Composites DCPD, FRP, Gelcoat, Phenolics, Epoxy Based Composites, RIM
Key Features
-
- All popular metals, Galvanized Metals, Hot-Dipped Metals,
- All Nylon types (Nylon-6, Nylon 12, etc), and all hard plastics Plastics like ABS, PVC, PC, Acrylic, etc (no HDPE, LDPE, or Polyolefins)
- Most thermoplastics, composites and laminates
- Contains Glass Bead (GB) microspheres for minimum bondline enforcement.
- Has exceptional strength and elongation which allows for bonding of dissimilar materials
- Excellent fatigue resistance, impact resistance and toughness
- Easy to Use 1:1 ratio product
- 5-7 Minute Working time, considered a fast-setting glue
- Lower odor formula
- Excellent environmental resistance to salt spray and other environmental factors
Back-Ups, Substitutes, and Similar Formulas:
These formulas are all similar and can be substitutes depending on the use case:
Plexus MA8105GB (5-Minute Set) Maven MMA8105 GB (5-Minute Set) Plexus MA8110GB (10-Minute Set) Maven MMA8110 GB (10-Minute Set) Plexus MA8120GB (20-Minute Set) Maven MMA8120 GB (20-Minute Set)
Properties:
- Color: Gray
- Mix Ratio: 1:1
- Shear Strength: 1,800 -2,400 PSI (12.4 -16.5 MPa)
- Adhesive: 40,000 – 70,000 cP
- Activator: 40,000 – 70,000 cP
- Working Time Min: 4 minutes
- Working Time Max: 7 minutes
- Fixture Time Min.: 18 minutes
- Fixture Time Max: 22 minutes
- Tensile Strength Max: 3,600 psi (24.8 MPa)
- Tensile Elongation Max: 20%
Its environmental and chemical resistance also works well in marine and humid environments. This product is often used for larger assemblies and for bigger gaps, where a longer set-time is important. This 1:1-ratio formula has an open time of 35 minutes and handling strength can be achieved in 90 to 120 minutes. It gives excellent bond strength along with good toughness and high impact strength. Highly recommended in marine industries and other composite assemblies.

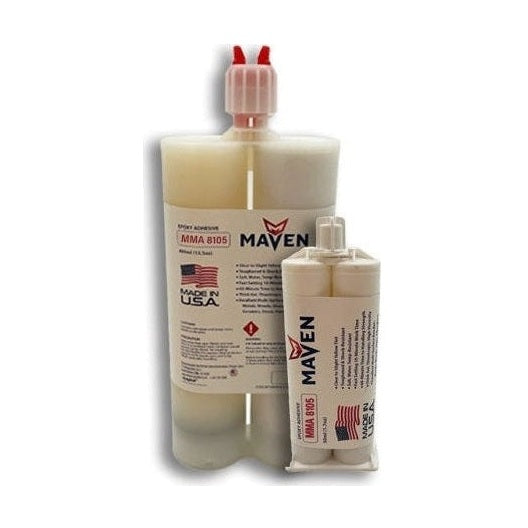

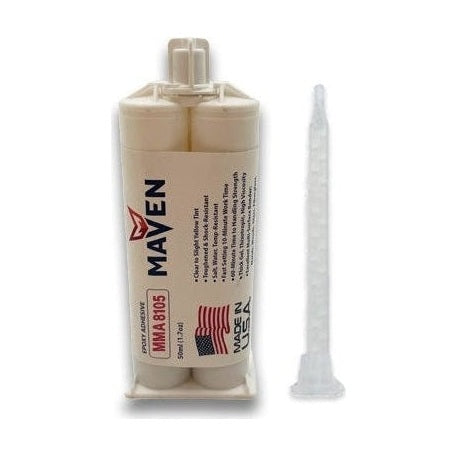

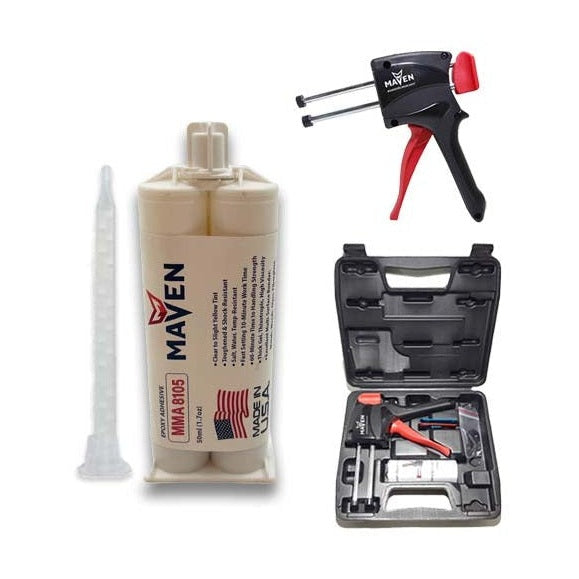

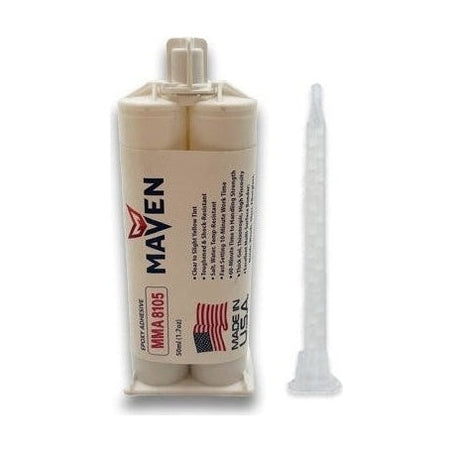

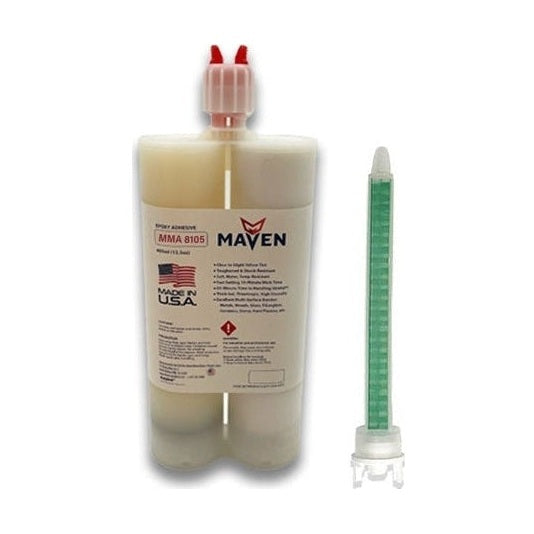

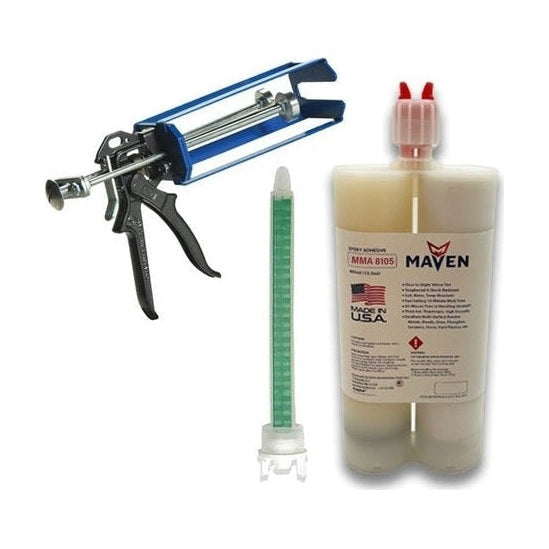

Please Note: These cartridges are designed to work best with a 50ml or 400ml cartridge Dispenser, respectively. We advise you use a 50ml or 400ml Dispenser for all respective cartridges. If you do not have one, please check out our Dispensers, all are excellent products and have our 'it's good' seal of approval.

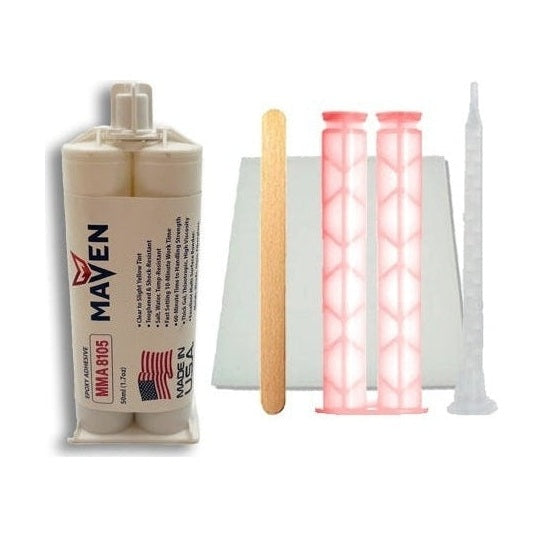

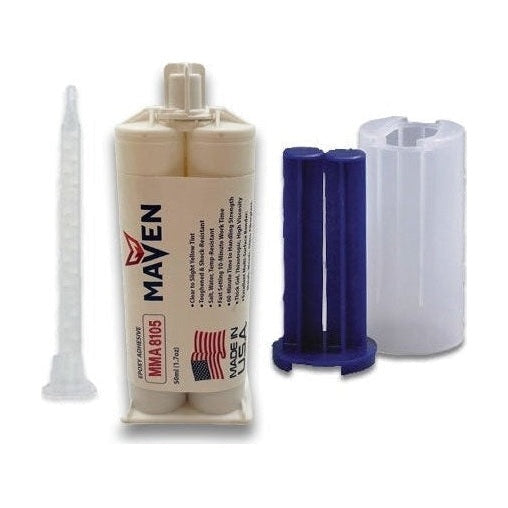

If you prefer not to use a Dispenser, we have some 50ml kits that include hand tools or caulking dispenser adapters, as pictured, that you can use for fast small jobs. But the 400ml cartridges really need to use a 400ml Dispenser, they're just too big to effectively use without the dispenser.
Chemical Resistance
Excellent resistant to hydrocarbons, oils, gasoline, kerosene, diesel, acids and bases, salt solutions, briny water, salt water, fresh water
Susceptible to polar solvents like methanol, ethanol, acetone
Directions of applications
Wipe off and degrease the surface to be bonded. Use eye protection and gloves to avoid skin contact. Dispense a desirable amount of adhesive using a dispensing dispenser. The nozzle sizes can be selected according to the desired bond thickness. Join the substrates with the specified work-life of this material and allow it to cure at room temperature. Do not disturb the parts during the curing process. Excess adhesive can be wiped off. (For optimum strength, surface preparation for the metals like sandblast, etching is suggested).
Safety and handling
Wear eye protection and gloves. Harmful if swallowed. Keep it away from heat, flames. Keep out of reach of children. Once used keep the containers closed.
Storage and shelf life
Store this product in a tightly closed container in a cool and well-ventilated area. Product should not be frozen. Keep it away from any source of heat. Store the material in between 51℉ to 75℉. Continuous exposure above 75℃ will reduce the shelf life.
