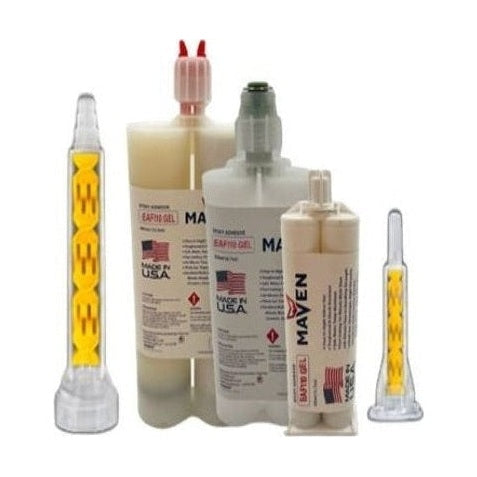

Maven EAF110 GEL Flexible & Thick Gel Epoxy Thixotropic - Medium Set 20 minute - Flexible Temp Resistant 20-Minute Set Plastic & Metal Epoxy

In stock
SKU: MV_EAF110GEL_050ML

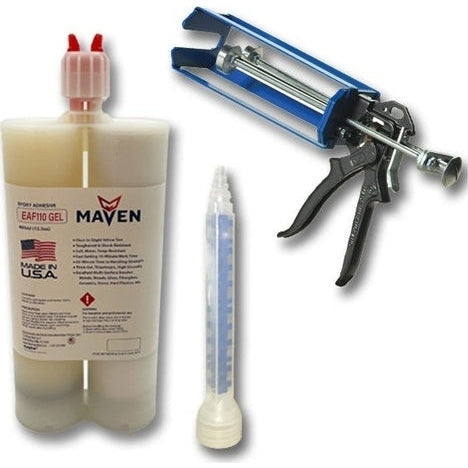

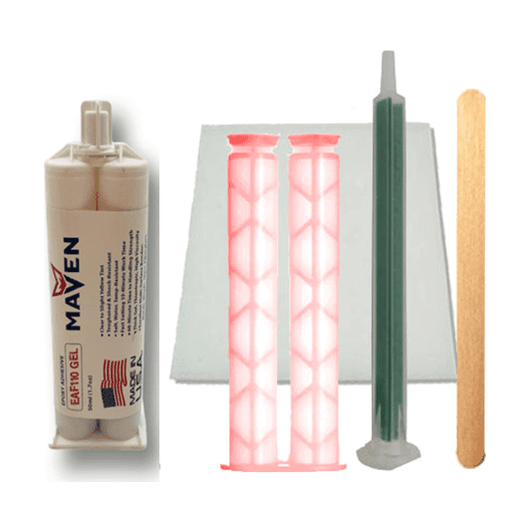

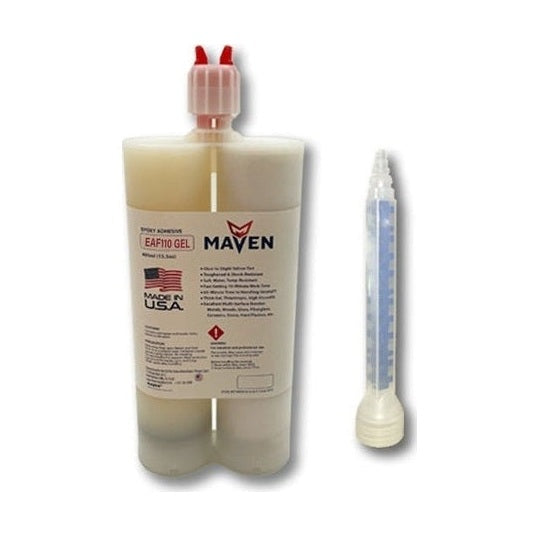

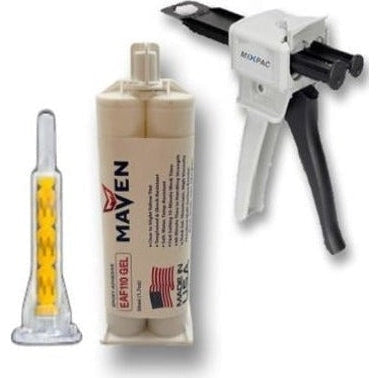

Which Kit do you Need?
Regular price $ 25.99 USD
19 units are available

Product details

  • Type Epoxy
  • Vendor Maven
  • SKU MV_EAF110GEL_050ML

Maven EAF110 GEL is a two-part, room temperature cure, thixotropic thick epoxy gel adhesive designed for high speed bonding of metals, ceramics, and most plastics. It cures to a tough semi-rigid material. It gives good resistance to water, salt spray, inorganic acids and bases, and most organic solvents. It is especially formulated for a 1:1 mix ratio for use in side by side cartridges, or to be used by hand mixing, or use with Meter Mix Equipment.

Substitutes and Similar Formulas:

  • 3M DP110NS Flexible Non-Sag 20-minute set epoxy

A handling cure is normally achieved at room temperature within 60 minutes with a full cure at room temperature within 24 hours. To accelerate the final cure, or to quicken the handling simply elevate the temperature.

Room Temperature Cure Properties

Work Time: 8 to 12 minutes (at 75°F/ 24°C)
Fixture Time: 60 minutes (at 75°F/ 24°C)
Full Cure: 24 hours for full properties
Operating Temperature -40°F(-40°C ) to 266°F (130°C)
Mixed Density 9.5 lbs/gal (1.15 g/cc)
Flash Point Greater than 200°C (392°F)
Viscosity Non-Sag Thixotropic Gel
Color Cures amber color
Mix Ratio 1 part Resin to 1 part Hardener (1:1)
Hardness 80 Shore D
Lap Shear Strength > 2,300 PSI
Tensile Strength 6,500 PSI
Elongation 5% to 10%
Impact Resistance > 150 inch/lb
Water Absorption <1% (24 hours)
Dielectric Constant 4.5 (@ 25c, 100Hz)
Dielectric Strength 410 v/mil
Volume Resistivity 8 x (10 to the 14th power) ohm-cm
Shelf Life 12 Months
VOC Content 0% by Weight

Handling and Storage

  1. Store between 40°F and 85°F. Prior to mixing, bring both components to room temperature. Mix 1 part A to 1 part B thoroughly for at least 30 to 60 seconds.
  2. Dispense mixed material over properly positioned devices to be glued together. Do not pour more than 1/2” thick as the product may exotherm too high and may boil. As this is a very quick adhesive, you must work quickly to bond the pieces together.
  3. Parts may be shipped within 24 hours but parts can be moved in 1 hour.

Additional Information

NOTE: Information contained herein is based on tests we believe to be reliable and accurate. It is offered in good faith for the benefit of the consumer. The Company shall not be liable for any injury, loss, or damage in the use or handling of its chemical products since conditions and use are beyond our control. In every case, we urge and recommend the user conduct tests to determine to their own satisfaction that the product is of acceptable quality and suitability for their particular purpose under their own operating conditions. Statements concerning possible use of our products are not intended as recommendations to use our products in the infringement of any patent, or for any particular purpose or application. These products are intended for industrial use only.

Click here for Product Data Sheets (TDS, SDS, fact sheets, selector guides, etc): https://tools.perigeedirect.com/data-sheets/
