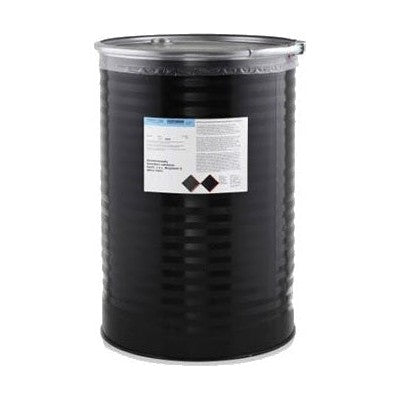

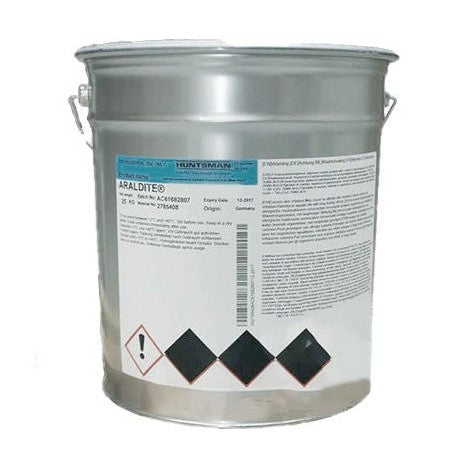

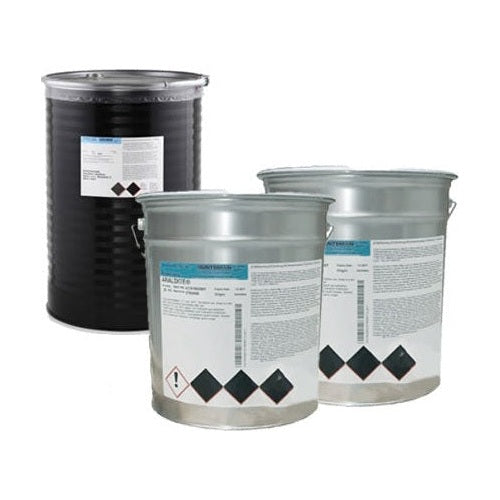

Huntsman Araldite TDR 1100-11 Resins & Hardeners 680108 & 680308

The Araldite TDR1100-11 Epoxy is a powerful adhesive specifically formulated for building and repairing archery bows.¹ Its convenient 2:1 mix ratio and long pot life make it easy to work with, while its fast-curing properties and strong, clear bond line ensure a durable and professional finish.² This product is ideal for bonding various materials like glass laminate, wood, and plastics, making it a versatile choice for bowyers and archery enthusiasts.

Key Features

• Specifically for Archery Bows: Engineered to meet the demanding requirements of bow construction.

• Thixotropic Formula: This creamy, non-drip consistency ensures the adhesive stays where you put it, preventing mess and waste.

• Simple 2:1 Mix Ratio (by volume): An easy-to-use ratio that simplifies preparation and is compatible with automated metering equipment.

• Long Pot Life: With over 90 minutes of working time, you can meticulously align and secure your components without rushing.

• Fast Curing: Cures quickly at temperatures above 170°F (77°C), speeding up your project timeline.

• Clear Bond Line: Creates a transparent, aesthetically pleasing bond that doesn't detract from the appearance of your bow.

• Strong and Durable: Achieves an ultimate strength of over 9,000 psi after curing, providing a robust and reliable bond.

Technical Specifications

• Product: Araldite TDR1100-11 Epoxy Adhesive

• Mix Ratio (by volume): 2 parts resin to 1 part hardener

• Working Time (Pot Life): >90 minutes (based on a 4 fl oz mass)

• Minimum Cure Temperature: 170°F (77°C)

• Appearance (Mixed): Amber liquid

• Recommended Use: For professional and industrial use only

Instructions for Use

1. Preparation: Ensure all surfaces are clean, dry, and free of dust, grease, and other contaminants.

2. Mixing: Accurately measure the resin and hardener at a 2:1 ratio by volume. Mix thoroughly until the consistency is uniform, and the color is consistent.

3. Application: Apply the mixed adhesive to one or both surfaces to be bonded. The thixotropic nature will keep the adhesive in place.

4. Curing: Clamp or fixture the components securely to prevent shifting. Cure the assembly in a controlled environment above 170°F (77°C). Refer to the technical datasheet for specific cure schedules and resulting physical properties.

5. Storage: Store in a dry place in the original, sealed containers at temperatures between 36°F and 104°F (2°C and 40°C). Avoid direct sunlight.
