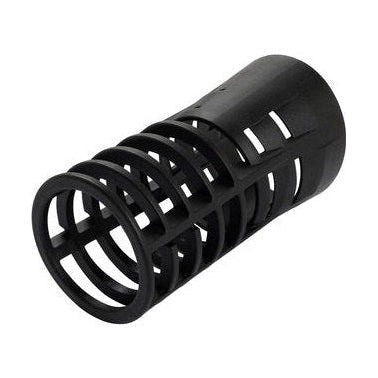

Tubular Heat Protection Shield (147.222) for Leister Solano Heat Gun
Burn protection for you, the operator and your material or job
The tubular heat protection shield is an important accessory for the SOLANO AT. This is because the easily attachable protective nozzle prevents direct contact of the SOLANO AT's heating tube, which can reach temperatures of up to 650°C, when working on sensitive materials. This protects users from burns and the material from damage such as soot stains, burns or scratches. The use of the practical protection nozzle is recommended when working on artificial leather, leather, car wrapping and shrinking cables.
To ensure that the protection nozzle on the SOLANO AT is also compatible with the nozzle accessories, individual webs on the protection ring are provided with predetermined breaking points. These rings can bend easily with a pair of pliers so that it's possible to mount the required nozzles even with the heat protection attached. Due to its fiber glass structure, the protection nozzle is far more durable and significantly more resistant to heat than normal plastic. At the maximum working temperature of 650°C the protection nozzle heats up to 100°C and at 400°C it heats up to 60°C. In addition to increasing work safety and protecting the material, an attractive and functional design was taken into account when creating the protection nozzle. Installing the protection nozzle is very easy. It's easy to attach to the SOLANO AT and locks into place with a slight twisting motion. In short: The protection nozzle is a practical and sensible accessory for the SOLANO AT, which users value a lot when working with sensitive materials.
Product Name
Leister 147.222 Tubular Heat Protection Shield for Solano Heat Gun
Brief Description
The Leister 147.222 Tubular Heat Protection Shield is an essential accessory designed specifically for the Leister Solano AT heat gun. Its primary function is to provide burn protection for the operator and to safeguard sensitive materials and surfaces from direct contact with the heat gun's high-temperature heating tube, preventing damage such as soot stains, burns, or scratches.
Popular Applications & Uses
- Working on artificial leather and leather- Car wrapping and vehicle wrapping- Shrinking cables and foil shrinking- Vehicle body upholstering- Protective cover welding- Plastic forming and welding inflatable plastic fabrics- Floor laying- Color removal- Soldering and desoldering
Industries that Commonly Use It
- Plastic Fabrication- Automotive Service/Repair- Construction/ Building Services- Electrical Services or Products- Sign & Display- Tarp, Fabric, Awning Manufacturing- General Manufacturing- Flooring Installer or Manufacturer
Special and Unique Features
- Specifically designed for the Leister Solano AT heat gun, ensuring perfect fit and functionality.- Easily attachable protective nozzle that locks into place with a slight twisting motion for secure installation.- Constructed with a durable fiberglass structure, offering significantly higher heat resistance compared to standard plastic shields.- Features predetermined breaking points on the protection ring, allowing for the mounting of other compatible nozzles even with the shield attached.- Designed with both an attractive and functional aesthetic.
Key Properties
- Material: Fiberglass structure for enhanced durability and heat resistance.- Heat Resistance: Reduces the external temperature of the heating tube significantly; for example, at a maximum working temperature of 650°C, the shield heats up to approximately 100°C, and at 400°C, it heats up to 60°C.- Compatibility: Exclusively compatible with the Leister Solano AT heat gun.- Installation: Simple and quick attachment with a twisting motion.
Surface Compatibility
This heat protection shield is compatible with a wide range of sensitive surfaces and materials that require protection from high heat, including but not limited to: artificial leather, natural leather, vehicle surfaces (for wrapping and upholstering), various plastics, and electrical cables. It prevents direct heat damage, soot stains, and scratches on these materials.
Known backups / known substitutes
- Other Leister protective tubes/heat protection devices (e.g., 149.624, 149.629, 148.933) may serve similar protective functions for different Leister tools or applications.- Generic heat gun protective covers or shields available from other manufacturers.- Insulon safety guards, which utilize advanced vacuum insulation for industrial thermal protection.- DIY heat shields such as aluminum coil stock, step flashing, ceramic or granite tiles, wet rags/towels, or sheet metal for localized protection.
Comparison Note
The Leister 147.222 Tubular Heat Protection Shield offers a purpose-built, integrated safety and material protection solution specifically for the Leister Solano AT heat gun. Unlike generic heat gun shields or improvised protective methods, this accessory is engineered to seamlessly fit the Solano AT, ensuring optimal performance and safety. Its fiberglass construction provides superior heat resistance and durability compared to many plastic alternatives, and its design allows for continued use with other nozzles, offering a more professional and efficient workflow than ad-hoc solutions.
