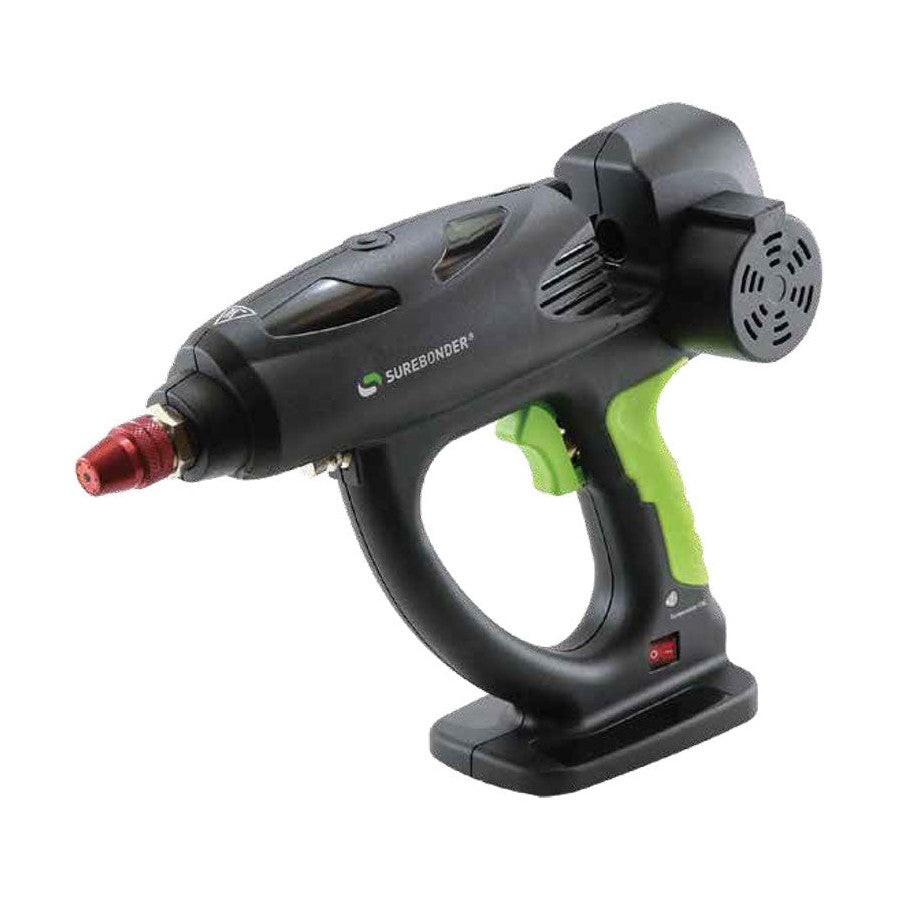

Surebonder Spray-500 Motorized Spray Glue Gun, 500 Watt
Need Datasheets? Need Accessories?
• Click Here to visit our Datasheet Server (TDS, SDS, Fact Sheets, Selector Guides, etc)• Check out Popular Accessories below by scrolling down just a bit on this page.
SKU:
SB_SPRAY500
Regular price
$ 1,053.46 USD
Currently Out of Stock
Call for ETA
SKU
- Type Glue Guns
- Vendor Surebonder
- SKU SB_SPRAY500
Description
The Surebonder Spray-500 is a 500 watt motorized hot glue gun that switches between two application modes by swapping the nozzle: a spray pattern for wide coverage, or a standard bead for precise placement.
- Spray mode runs on compressed air at 70 to 80 psi, for fast, even coverage across larger surfaces.
- Bead mode uses the included SN-02 standard nozzle for controlled, targeted application; the SN-01 spray nozzle handles spray mode.
- Accepts 5/8 inch diameter glue sticks at a 400F working temperature.
- Motorized feed drives up to 8.4 lb of glue per hour at a 14.5 inch per minute feed speed.
Built for production environments doing high-volume laminating, panel assembly, or upholstery work where both wide spray coverage and precise bead application are needed from one gun.
Product Name
Surebonder Spray-500 Motorized Spray Glue Gun, 500 Watt
Brief Description
A 500 watt motorized hot melt gun that switches between a wide adhesive spray and a standard bead, built for 5/8 inch glue sticks and larger-surface coverage work such as carpet backing, insulation, and vehicle headliners.
Popular Applications & Uses
- Carpet and rug backing, insulation bonding, and upholstery work needing broad spray coverage
- Vehicle headliner installation and other transportation interior bonding
- Cubicle and furniture assembly using either spray or bead mode
- Packaging and cardboard/foam bonding after switching to the standard nozzle
Industries that Commonly Use It
- Automotive Service/Repair
- Construction/ Building Services
- Fabrication
- Flooring Installer or Manufacturer
- Furniture
- General Manufacturing
- Packaging Services or Contractor
- Transportation/ Specialty Vehicle
Special and Unique Features
- Motorized feed drives 5/8 inch sticks for spray or extrusion from one gun
- Includes the SN-01 spray nozzle and SN-02 standard nozzle, covering both application modes
- Air-assisted spray pattern adjustable from 70 to 80 psi for spiral size and coating thickness
- Feed system retracts the stick roughly 3/8 inch on trigger release to limit drips
Key Properties
- 500 watt output, 120V
- 8.4 lb/hr (4 kg/hr) output
- 400 F working temperature
- 14.5 in/min feed speed
Surface Compatibility
- Cardboard
- Foam
- Fabric
- Carpet backing
Known backups / known substitutes
No verified cross-reference substitute documented for the Spray-500 at this time.
Comparison Note
The only motorized spray/bead dual-mode gun in this Surebonder lineup. The PRO2 series and HE-750 extrude a standard bead only and cannot spray.
