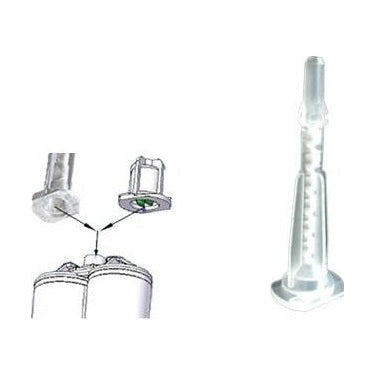

Small Ultra-Low Waste Mixing Nozzles for 50ml/1.7oz Cartridges (2-Inch 12-Element 1/8in ID)
Atlas Professional small Ultra-Low Waste mixing nozzles / tips (2-inch 12-element 1/8-inch Inner Diameter Static Mixers) for standard Type-A 50ml 2-Part epoxy and adhesive cartridges.
Mixing nozzles have among lowest waste levels of all 50ml mixing nozzles.
- Material/Color: Clear Plastic, with white internal mixing element
- Works with the following Branded 50ml cartridges:
- Loctite Hysol, 3M Scotch Weld, Devcon Dev-Packs & Mark5, Huntsman Araldite 2000+ Gorilla Epoxy, and all other brands that use the following 50ml cartridge types.
- Works with the following 50ml cartridge types:
- All Type-A 50ml "Square-Back or Rectangle-Back" Cartridge
- Syringe Inner Diameter: 3mm - 0.125 in - 1/8 in
- Tip-end hole Inner Diameter: 0.3mm/ 0.03"
- Inner Mixing Elements: 12 elements (how many mixing 'points' are found inside the nozzle)
- Total Syringe Length: 2 inches - 50mm
- Package Contents vary by the Pack size you select
- Each Pack includes the same number of mixing nozzles plus the needed inner/inside mixing assembly
