RITTER ACF ORBIS Mixing Nozzle Ratios 1:1 or 2:1 (24 Element, 12mm ID #13600-2012) for 200ml or 400ml ACF Cartridge

Ritter

SKU: RITTER_ACF_MIXER_ORBIS_24ELE_12ID_13600-2012_01PK

  • $ 0.00

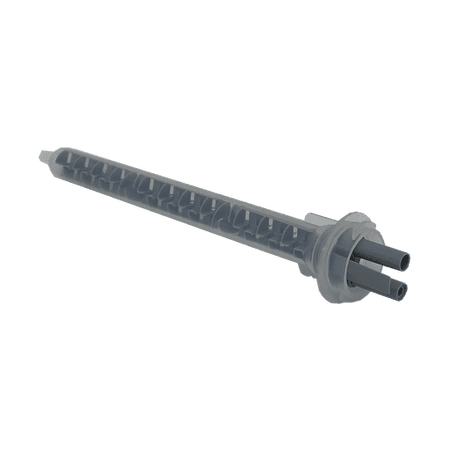

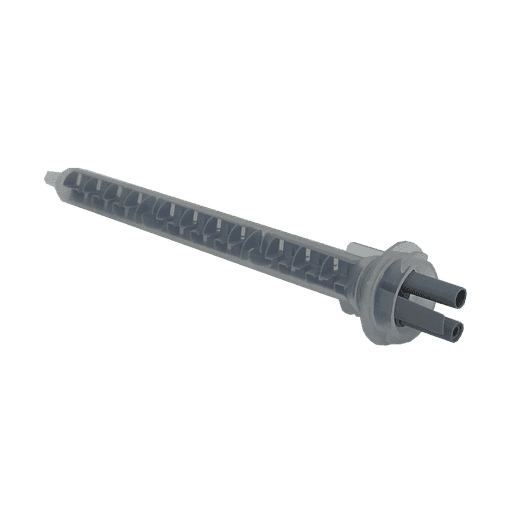

    Ritter ACF ORBIS gray/blue (High-Efficiency, Low-Waste) mixing nozzles for larger Ritter cartridges gray/white Static Mixers) for the Ritter ACF-System 1:1 & 2:1 Ratio larger 2-Part epoxy and adhesive cartridges (200ml, 250ml, 400ml, 490ml).

    Works with larger Ritter ACF-System (200ml, 250ml, 400ml, 490ml) cartridges.  See the product pictures for illustrations of the compatible cartridge design.

    Available Sizes & Lengths:

    You can choose from these size and length options, by clicking on the desired option button on this page.

    Nozzle Description Design Style Mix Ratio Elements Nozzle Barrel Inner Diameter mm Length mm Tip Outlet Outer Diameter mm Tip Outlet Inner Hole Diameter mm Retained Volume ml Part Number
    ACF ORBIS™ 8.7-19 ORBIS Low-Waste 1:2 & 2:1 19 8,7 132 4,2 3,2 7,2 13600 - 3151
    ACF ORBIS™ 8.7-19-X ORBIS Low-Waste 10:1 & 4:1 19 8,7 132 4,2 3,2 7,2 13600 - 3150
    ACF ORBIS™ 10-24 ORBIS Low-Waste 1:2 & 2:1
    24 10 156 5,4 3,2 8,8 13600 - 2010
    ACF ORBIS™ 10-24-X ORBIS Low-Waste 10:1 & 4:1 24 10 156 5,4 3,2 8,8 13600 - 3101
    ACF ORBIS™ 12-24 ORBIS Low-Waste
    1:2 & 2:1
    24
    12
    183 5,4 3,2 15,8 13600 - 2012
    ACF ORBIS™ 12-24-X ORBIS Low-Waste 10:1 & 4:1 24 12 183 5,4 3,2 15,8 13600 - 3102

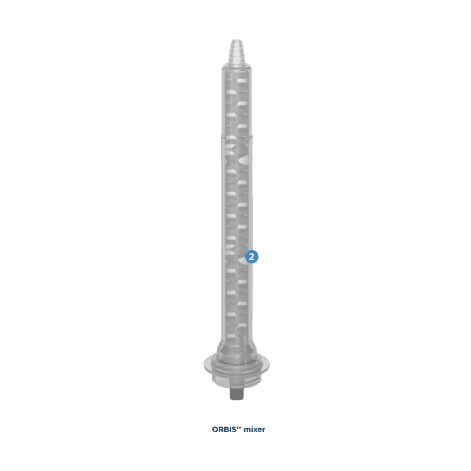

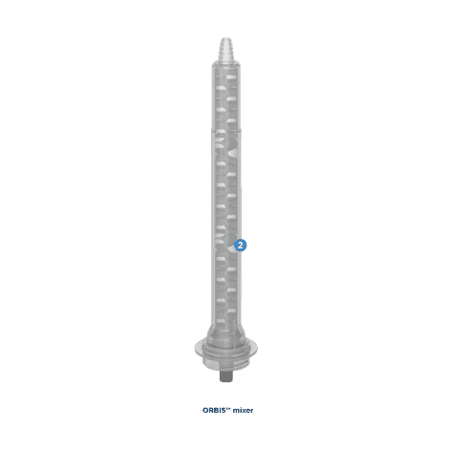

    The ACF-Cartridge range is accompanied by aligned Helix and ORBIS mixing-nozzles. They fit for the most demanding mixing challenge and the ACF-coding 1 allows for the use of one single range of mixers despite of various mixing ratios. This is user friendly and economical.  The ORBIS is Ritter's latest development, providing superior mixing efficiency of most 2-component adhesives. The orbital geometry of the tube, in combination with the specifically designed 2 mixing element, ensure reduced dead spot and minimize the required extrusion force.

    Compatible cartridges:
    Ritter ACF    200ml    1:1 & 2:1 ratio
    Ritter ACF    250ml    4:1 & 10:1 ratio

    Ritter ACF    400ml    1:1 & 2:1 ratio
    Ritter ACF    490ml    4:1 & 10:1 ratio

    Specifications

    Mixing elements
    Choose from 19 or 24 elements
    Inner Diameter
    Choose from 8.7mm, 10mm, or 12mm
    (thinner the material, the smaller the diameter)
    ×
