Product Name

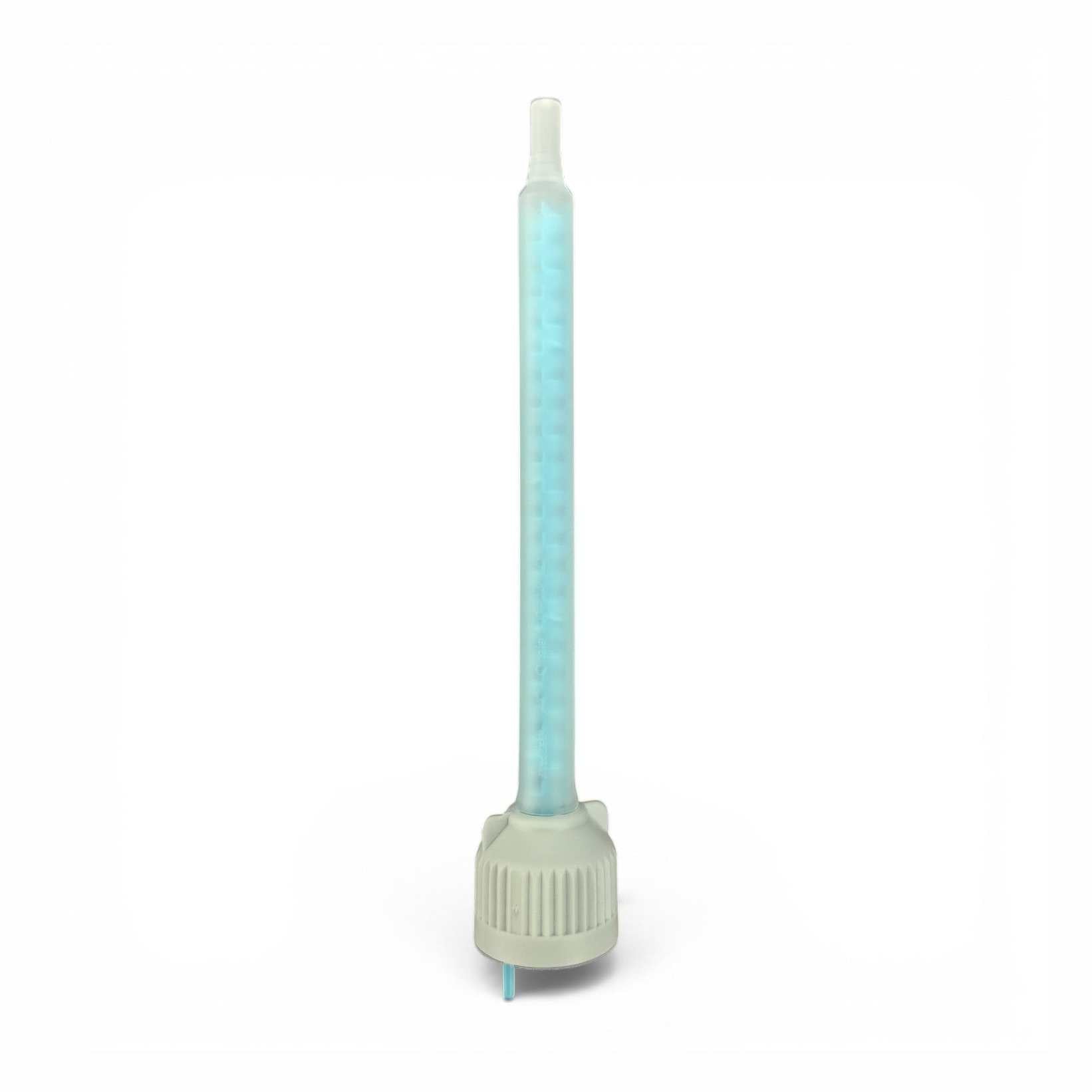

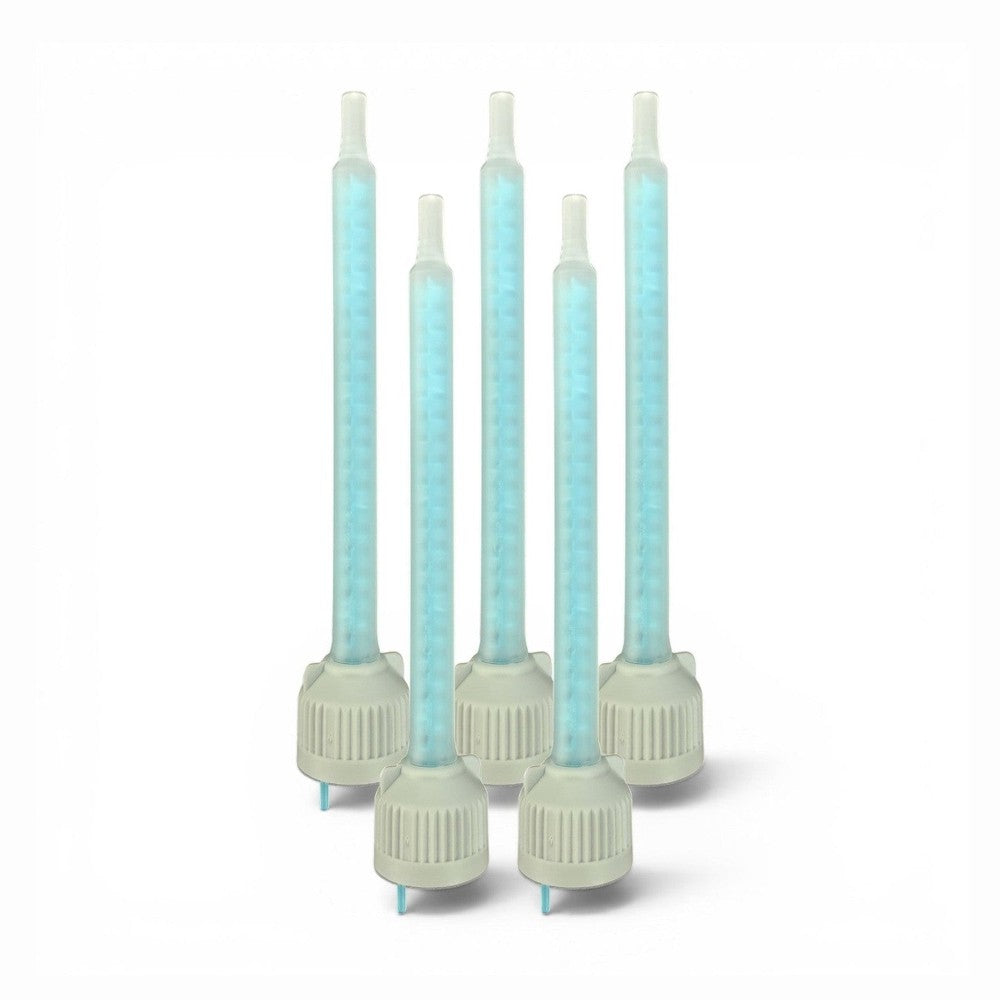

RITTER ACF-ORBIS 50ml High-Efficiency Mixing Nozzles 10:1 and 4:1 ratio (16336 - 0242), for Ritter 50ml ACF 10:1 and 4:1 ratio Cartridges
Brief Description
The RITTER ACF-ORBIS 50ml High-Efficiency Mixing Nozzles are advanced static mixers specifically engineered for the precise and thorough blending of two-component (2K) adhesives and sealants. Designed to seamlessly integrate with Ritter 50ml ACF 10:1 and 4:1 ratio cartridges, these nozzles ensure air-free and cross-contamination-free dispensing, crucial for achieving strong, durable bonds in various industrial applications.
Popular Applications & Uses
- Dispensing and mixing of epoxies, structural adhesives, and sealants- Bonding applications in electronics, automotive, medical devices, and aerospace industries- Construction and building services, including countertop seaming- General assembly and manufacturing processes requiring precise two-component material application- Metal bonding and fabrication- Furniture manufacturing and display fixture assembly
Industries that Commonly Use It
- Aerospace/Defense- Automotive Service/Repair- Chemical Industry- Construction/ Building Services- Countertop- Distributers & Resellers- Electrical Services or Products- Energy (e.g., Oil & Gas)- Fabrication- Furniture- General Manufacturing- Medical Device/ Prosthetics- Metal Fabrication- Sign & Display
Special and Unique Features
- **ACF-Coding System:** Ensures air-free and cross-contamination-free storage and metering, preventing components from mixing prematurely.- **ORBIS™ Orbital Geometry:** Ritter's latest development, featuring an orbital tube geometry combined with specifically designed mixing elements for superior mixing efficiency.- **High-Efficiency Mixing:** The ORBIS™ design guarantees consistent and homogeneous mixing, even for demanding 2-component adhesives.- **Reduced Dead Space:** Minimizes material waste and ensures efficient use of materials.- **Minimal Extrusion Force:** The design reduces the required extrusion force, leading to smoother and more consistent application.- **Precise Application:** Enables controlled dispensing with specific outlet diameters.- **Disposable Design:** Offers user-friendly, quick, and hassle-free installation and replacement.- **German Engineering:** Reflects high-quality manufacturing standards and precision.- **Versatile Compatibility:** Designed for 10:1 and 4:1 mixing ratios with Ritter 50ml ACF cartridges.
Key Properties
- **Mixing Ratios:** Specifically designed for 10:1 and 4:1 ratios.- **Mixing Elements:** Features multiple mixing elements (e.g., 24 elements for some models) for thorough blending.- **Material:** Typically made from high-quality plastic for chemical resistance and durability.- **Efficiency:** Provides high-efficiency mixing, minimizing waste and improving product performance.- **Consistency:** Guarantees consistent and homogeneous mixing results.- **Compatibility:** Designed for use with Ritter ACF-System 50ml 2-part epoxy and adhesive cartridges.
Surface Compatibility
The nozzles themselves are made of plastic. Their function is to mix and dispense two-component adhesives and sealants, which are then applied to a wide range of industrial surfaces. These adhesives and sealants are compatible with various materials such as metals, plastics, composites, stone, wood, and other substrates commonly found in the industries listed.
Known backups / known substitutes
- Sulzer MIXPAC C System Glue Static Mixer Nozzles (e.g., MCH, MFH series)- MixPac MBQ Mixing Nozzles for 50ml cartridges- Other Ritter Helix mixing nozzles designed for 2-component cartridges- Various other brands of static mixer nozzles compatible with industry-standard 50ml dual-component cartridges.
Comparison Note
The RITTER ACF-ORBIS mixing nozzles, particularly with their ORBIS™ orbital geometry, represent Ritter's latest advancement, offering superior mixing efficiency and reduced dead spots compared to traditional helical static mixers. This design minimizes the required extrusion force and material waste, leading to a smoother, more consistent application and enhanced product performance, especially for demanding 2-component adhesives.
