ReMixers Xemex Ultra-Low Waste 50ml Mixing Nozzles (Bayonet style) for 50ml cartridges 1:1, 2:1, 4:1, 10:1
Need Datasheets? Need Accessories?
• Click Here to visit our Datasheet Server (TDS, SDS, Fact Sheets, Selector Guides, etc)• Check out Popular Accessories below by scrolling down just a bit on this page.
Regular price
$ 1.99 USD
2119 units available
The ReMixers Xemex (pronounced Ze-mix) mixing nozzles use revolutionary new fluid-flow technology that mixes your glue more thoroughly, in a shorter length, and with far less waste. And if that’s not cool enough, the ReMixers Xemex can even produce in a stronger performing bond. (more thorough mixing tends to produce stronger bonds)
By leveraging a novel design that’s only possible with additive manufacturing (3D Printing), The ReMixers Xemex-optimized mixers enable a better mix from just 7 elements than what traditional elements can do with 32 or more.
Benefits
- More thoroughly mixes (yes even with fewer elements)
- Reduces material waste by up to 75%
- Increases operator dexterity and accuracy
- Simplifies manufacturing to fewer mixer SKUs
- Made in the USA, ensuring faster, more reliable lead times
Features
- Xemex’s patented 10X mixing technology
- Optimized for epoxy, methacrylate, urethane, and silicone
- Compatible across common adhesive ratios: 1:1, 2:1, 4:1, 10:1
- Hydrophobic PETG inserts for moisture-sensitive formulations
Click here for Product Data Sheets (TDS, SDS, fact sheets, selector guides, etc): https://tools.perigeedirect.com/data-sheets/

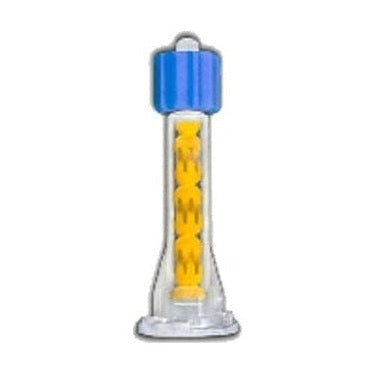

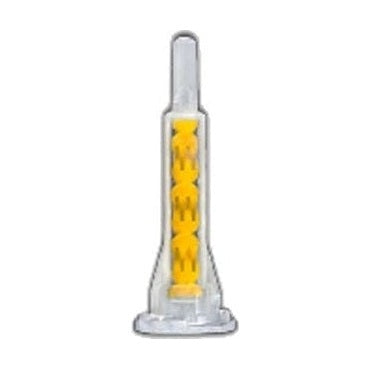

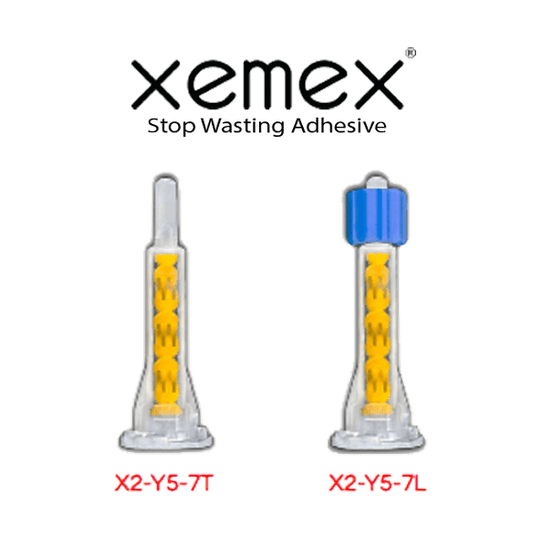

| Part Number | X2-Y5-7T | X2-Y5-7L |
|
Insert Material |
Polyester |
Polyester |
|
Housing Material |
Polypropylene |
Polypropylene |
|
Connection Style |
Bayonet (50ml A-System) |
Bayonet (50ml A-System) |
|
Nozzle Tip |
Tapered |
Luer-Lock |
|
Inner Diameter |
5.3 mm |
5.3 mm |
|
Insert Assembly |
7 elements |
7 elements |
|
Total Length |
50 mm |
50 mm |
|
Retained Volume |
0.6 mL |
0.6 mL |
|
Ratios Served |
1:1, 2:1, 4:1, 10:1 |
1:1, 2:1, 4:1, 10:1 |
|
Systems Served |
Cartridge & Cobot Arms |
Cartridge & Cobot Arms |
