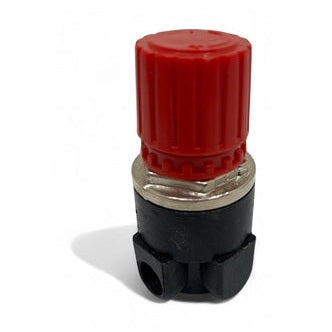

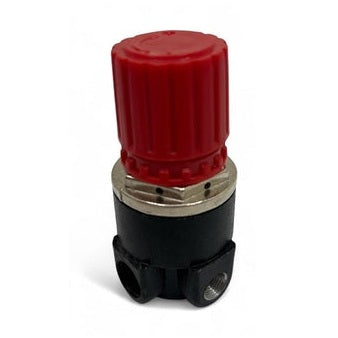

Pneumatic air pressure regulator, Top Twist-Adjust with locking nut
Need Datasheets? Need Accessories?
• Click Here to visit our Datasheet Server (TDS, SDS, Fact Sheets, Selector Guides, etc)• Check out Popular Accessories below by scrolling down just a bit on this page.
SKU:
MV_PRESSURE_REGULATOR_RED_CAP
Regular price
$ 9.99 USD
Regular price
$ 19.99 USD
Sale price
$ 9.99 USD
39 units available
SKU
- Type Accessories
- Vendor Maven Pneumatic
- SKU MV_PRESSURE_REGULATOR_RED_CAP
Pneumatic air pressure regulator, Top Twist-Adjust with locking nut
Popular for basic air compressor controls.
Features Include:
- 1 inlet 1/4 in NPT threads
- 2 outlets 1/2 in NPT threads (pressure-regulated)
- Screw-adjusted pressure valve with locking nut
Product Name
Pneumatic Air Pressure Regulator, Top Twist-Adjust with Locking Nut
Brief Description
This pneumatic air pressure regulator is a mechanical device designed to reduce and maintain a consistent output air pressure from a higher-pressure supply line, regardless of fluctuations in the inlet pressure. It features a top twist-adjust mechanism for setting the desired pressure and a locking nut to secure the setting, preventing accidental changes during operation. This ensures optimal performance, safety, and efficiency of downstream pneumatic tools and equipment.
Popular Applications & Uses
- Regulating air pressure for pneumatic tools and machinery in manufacturing and assembly lines.- Controlling air pressure in spray painting applications within the automotive sector.- Managing air and gas flow in dental practices and other medical equipment.- Ensuring consistent pressure in packaging and bottling lines for efficiency and hygiene.- Use in general industrial settings to protect equipment from damage due to pressure variances.- Maintaining stable air pressure in automation systems.- Integration into air compressor controls.
Industries that Commonly Use It
- General Manufacturing: For powering conveyor systems, robotic arms, grippers, and various automated machinery.- Automotive Service/Repair: Used in assembly plants for tasks like welding, painting, and with pneumatic tools such as impact wrenches and air-powered drills.- Food & Beverage Company or Distributor: Employed in food processing, packaging, and bottling lines to maintain hygiene and efficiency.- Medical Device/ Prosthetics: Crucial for controlling air and gas flow in medical equipment, including dental tools, ventilators, and for sensitive instrumentation.- Aerospace/Defense: Instrumental in fuel systems and environmental controls, ensuring safety and reliability.- Chemical Industry: Utilized in processing where clean, dry, pure air is often required.- Construction/ Building Services: Powers pneumatic tools like nail guns and other construction equipment.- Metal Fabrication: Used in fabrication equipment and with pneumatic tools.- Packaging Services or Contractor: Integral in packaging machinery for sealing, labeling, and sorting.- Industrial Supply & Distributers & Resellers: As a fundamental component sold and distributed for various industrial applications.- Transportation/ Specialty Vehicle: Implied by its use in automotive and general industrial applications for vehicles.
Special and Unique Features
- Top Twist-Adjust: Allows for easy and intuitive manual adjustment of the output pressure.- Locking Nut: Secures the set pressure, preventing accidental or unauthorized adjustments during operation.- Consistent Output Pressure: Automatically adjusts airflow to maintain a stable downstream pressure despite inlet pressure fluctuations.- Protection for Equipment: Safeguards pneumatic tools and machinery from damage due to excessive or inconsistent pressure.- Enhanced Efficiency: Ensures tools operate under optimal conditions, improving their efficiency and longevity.
Key Properties
- Pressure Reduction: Reduces high incoming air pressure to a stable, usable level.- Pressure Stability: Maintains a consistent output pressure even with varying inlet pressure.- Manual Adjustment: Features a knob or screw for manual pressure setting.- Locking Mechanism: Incorporates a locking nut to fix the adjusted pressure.- Port Sizes: Commonly available with standard NPT threads (e.g., 1/4 in inlet, 1/2 in outlets).- Self-Relieving (common): Many regulators are self-relieving, meaning they vent excess downstream pressure if it rises above the set point.- Material (common): Often made from durable materials like coated die-cast aluminum for industrial use.
Surface Compatibility
- Primarily designed for use with compressed air systems.- Compatible with standard pneumatic system components, including air hoses, compressors, and various pneumatic tools and actuators.- Can be used with inert gases in some industrial pneumatic systems.
Known backups / known substitutes
- Filter-Regulator-Lubricator (FRL) Units: These combine a filter, regulator, and lubricator into a single module, offering air treatment, pressure control, and tool lubrication.- Filter Regulators: Combine a filter and a pressure regulator, useful for saving space and ensuring clean air.- Precision Regulators: Offer higher accuracy and sensitivity for applications requiring very fine pressure control.- Back-Pressure Regulators: Maintain a constant pressure upstream, rather than downstream.- Electronic Pressure Regulators: Provide electronic control and often greater precision.- Direct-acting vs. Pilot-operated Regulators: While the described product is likely direct-acting, pilot-operated regulators offer more accuracy and tighter pressure bands for certain applications.
Comparison Note
This pneumatic air pressure regulator with a top twist-adjust and locking nut is a versatile and widely used component, often categorized as a general-purpose regulator. It provides a balance of reliable pressure control and ease of adjustment, making it suitable for a broad range of industrial and commercial applications where consistent air pressure is crucial but ultra-fine precision might not be the primary requirement. While more specialized regulators (e.g., precision, FRL units) exist for specific needs, this type offers a cost-effective and robust solution for everyday pneumatic system management. Its twist-adjust and locking nut feature provides a straightforward and secure method for setting and maintaining desired pressure levels.
