Product Name

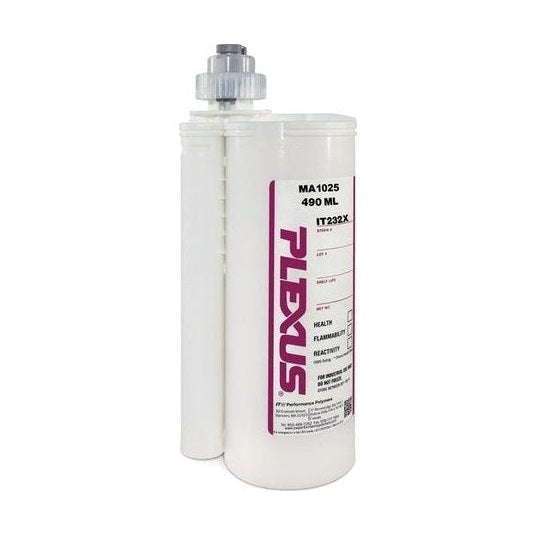

- PLEXUS MA1025 Low Cure Shrinkage Two-part Methacrylate Adhesive IT232X /IT235
Brief Description
- PLEXUS MA1025 is a two-part methacrylate adhesive characterized by its very low cure shrinkage and low odor. It is engineered for high-strength structural bonding of diverse materials, including thermoplastics, metals, and composites, often requiring minimal to no surface preparation.
Popular Applications & Uses
- Structural bonding in the marine industry, particularly for stringers and liners in fiberglass boats.- Bonding of automotive components, vehicle roofs, spoilers, and other parts.- Metal assembly and fabrication, including aluminum, stainless steel, and raw steel.- Plastic fabrication, such as ABS, acrylic, PVC, FRP, gelcoats, polyesters, and polycarbonates.- Manufacturing of thermoformed enclosures.- General structural bonding of advanced materials in the transportation sector.- Gap filling applications, capable of filling gaps up to 1 inch (25 mm).
Industries that Commonly Use It
- Aerospace/Defense- Automotive Service/Repair- Construction/ Building Services- Fabrication- General Manufacturing- Marine- Metal Fabrication- Plastic Fabrication- Thermoforming- Transportation/ Specialty Vehicle
Special and Unique Features
- Very low cure shrinkage, which helps maintain dimensional stability after curing.- Very low odor, contributing to improved working conditions.- Requires virtually no surface preparation for many substrates, simplifying the bonding process.- Fast strength development, achieving fixture in 40-45 minutes.- High tensile strength and impressive elongation (90-110%).- Excellent impact, peel, and fatigue resistance, even in vibration-heavy environments.- Tolerant of off-ratio mixing.- Maintains good flexibility at low temperatures.- Resistant to solvents, chemicals, and various environmental conditions.- Incorporates odor blocking technology.- Features low modulus and high elongation for effective stress distribution.
Key Properties
- Type: Two-part Methacrylate Adhesive (MMA)- Mix Ratio: 10:1 (Adhesive:Activator)- Color: Blue- Working Time: 20-25 minutes- Fixture Time: 40-45 minutes (achieves approximately 75-80% of ultimate strength)- Shear Strength: 850-2,000 psi (5.8-13.8 MPa)- Tensile Strength: 1,400-1,800 psi (9.7-12.4 MPa)- Tensile Elongation: 90-110%- Gap Fill: Up to 1 inch (25 mm)- Operating Temperature: -40°F to +180°F (-40°C to +82°C)- Viscosity (cP): Adhesive (Part A): 180,000-220,000; Activator (Part B): 35,000-70,000
Surface Compatibility
- Composites: DCPD, FRP, Gelcoat, Phenolics, Epoxy Based Composites, RIM- Thermoplastics: ABS/ABS Blends, Acrylics, PBT, Polycarbonate, Rigid PVC, TPUs, Styrenics, Urethane, Vinyl Ester- Metals: Aluminum, Stainless Steel, Raw Steel, Coated Metals (Powder coated or E-coated)- Generally bonds most substrate materials including metal, magnets, plastic, glass, and wood.
Known backups / known substitutes
- Other Plexus MMA adhesives (e.g., MA1020, MA330, MA420, MA2015, MA2030, MA2045, MA832, MA920, MA8210, MA205HV, MA310, MA320, MA425, MA530).- Infinity Bond MMA 1025 (a low-shrinkage alternative with similar properties).- Infinity Bond MMA 422, MMA 300, MMA 310.- 3M DP8705NS.- Loctite H3000, H8110.- SCIGRIP (SG100, SG200, SG300 Series).- Sika (SikaFast, Sikaflex).- Permabond MMAs.- Axil 9402 (a two-part structural methacrylate adhesive with similar applications).- Structural Methacrylate Adhesive S1300.- General two-part epoxies and polyurethanes (Plexus adhesives are often presented as competitive alternatives).
Comparison Note
- PLEXUS MA1025 is a high-performance, two-part methacrylate adhesive specifically engineered for structural bonding with minimal cure shrinkage and low odor. Its capability to bond a wide array of dissimilar materials with little to no surface preparation, combined with rapid strength development and excellent resistance to environmental factors, positions it as a superior alternative to traditional welding, riveting, and some epoxy or polyurethane systems, particularly in the marine and transportation industries.
