Piston Insertion Tool for 50 1:1 ratio 2-Part cartridges -MixPac For Vented Pistons
Need Datasheets? Need Accessories?
• Click Here to visit our Datasheet Server (TDS, SDS, Fact Sheets, Selector Guides, etc)• Check out Popular Accessories below by scrolling down just a bit on this page.
Regular price
$ 25.50 USD
8 units available
The piston insertion tool for 50ml MedMix MixPac A-System, B-System, and S-System MedMix MixPac cartridges makes installing & sealing the pistons easy and standardized, and is a crucial step after filling operations are complete.
Part Number: PIDQ_0050-01-02
Works with MedMix A-Series, B-Series, and S-Series 50ml 1:1 ratio 2-Part empty cartridges.
How it works: Four easy steps.
Installing pistons with the insertion tool is super easy once you understand how the piston is built and how to use the insertion tool.
The Pistons are the next generation of piston technology, incorporating a diaphragm instead of a push-pin. The Insertion Tool opens the diaphragm up so air can release during installation.

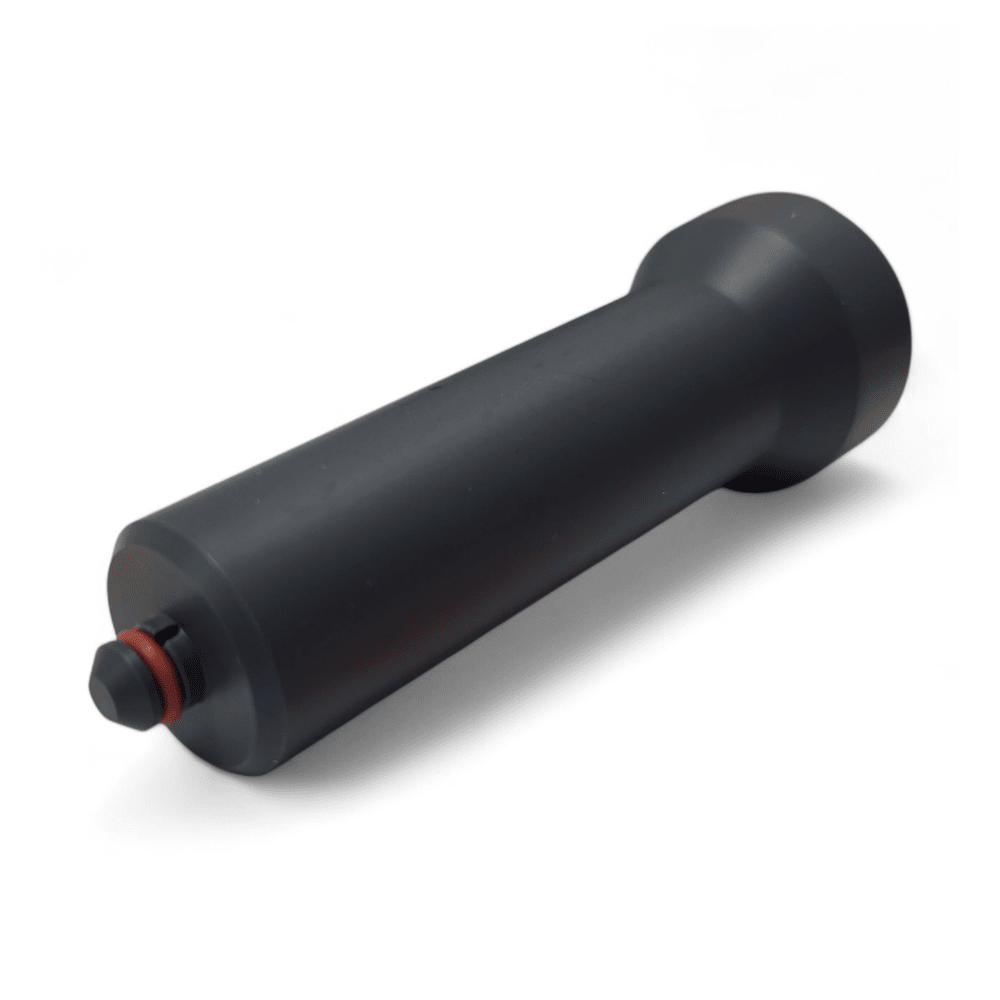

- Notice that the insertion tool has a bump or button on the top side. This button is very important, and is used to both hold the piston in place AND push/keep the air release diaphragm open during insertion/installation.

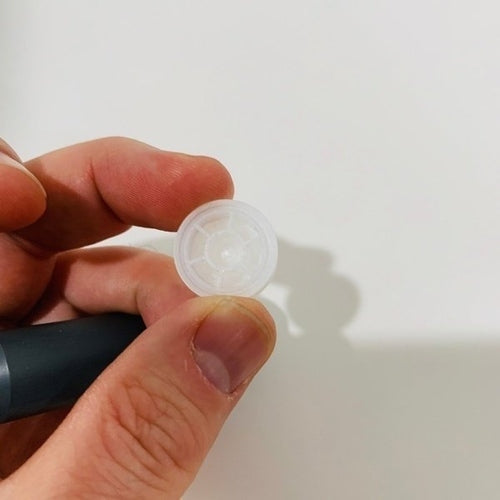

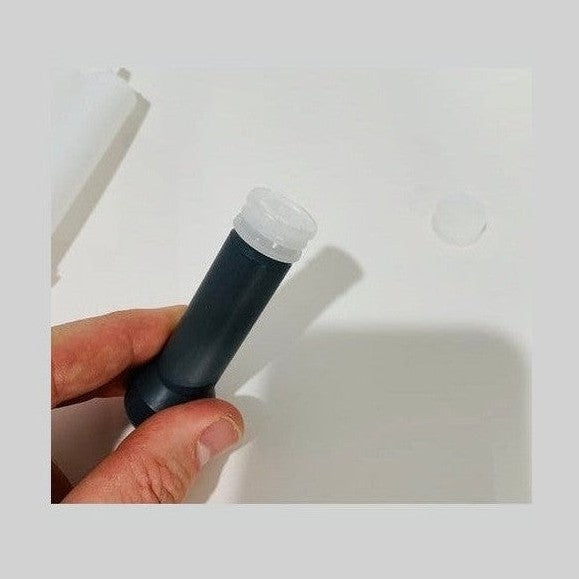

- Place the piston atop the insertion tool, so that the gray diaphragm side is facing up atop the tool and the hard plastic spokes side is facing down onto the tool. Make sure that the Insertion tool's button or bump fits inside the center hole/cavity of the piston, so that it helps keep the piston on the tool.

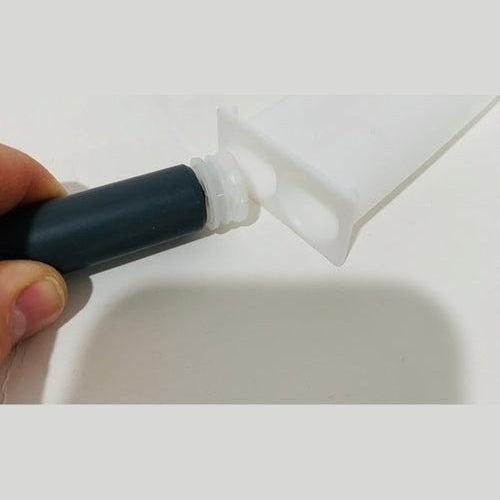

- Using the insertion tool, press the piston inside the back end of the cartridge and gently press it in. The 'bump' or 'button' on the tool keeps the Piston's air release valve/diaphragm open so that air can escape as the piston is pushed in.
- Finally, when the piston hits the adhesive or material, you will feel a gentle resistance, and stop. The piston automatically seals as soon as you remove the insertion tool. The piston is now installed, sealed, and air has been evacuated.
This video illustrates a cross section of how the Piston Insertion tool holds open the Piston to allow the trapped-in air to release out of the cartridge while the pistons are pressed/pushed down during the installation step.
