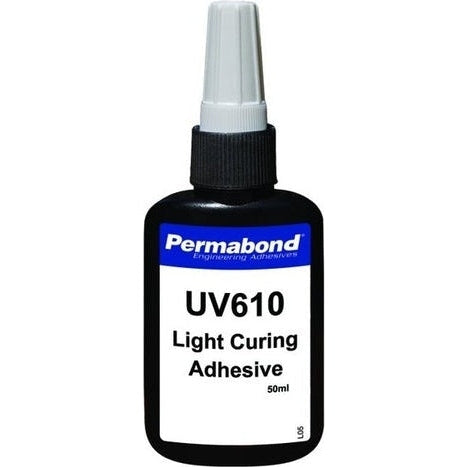

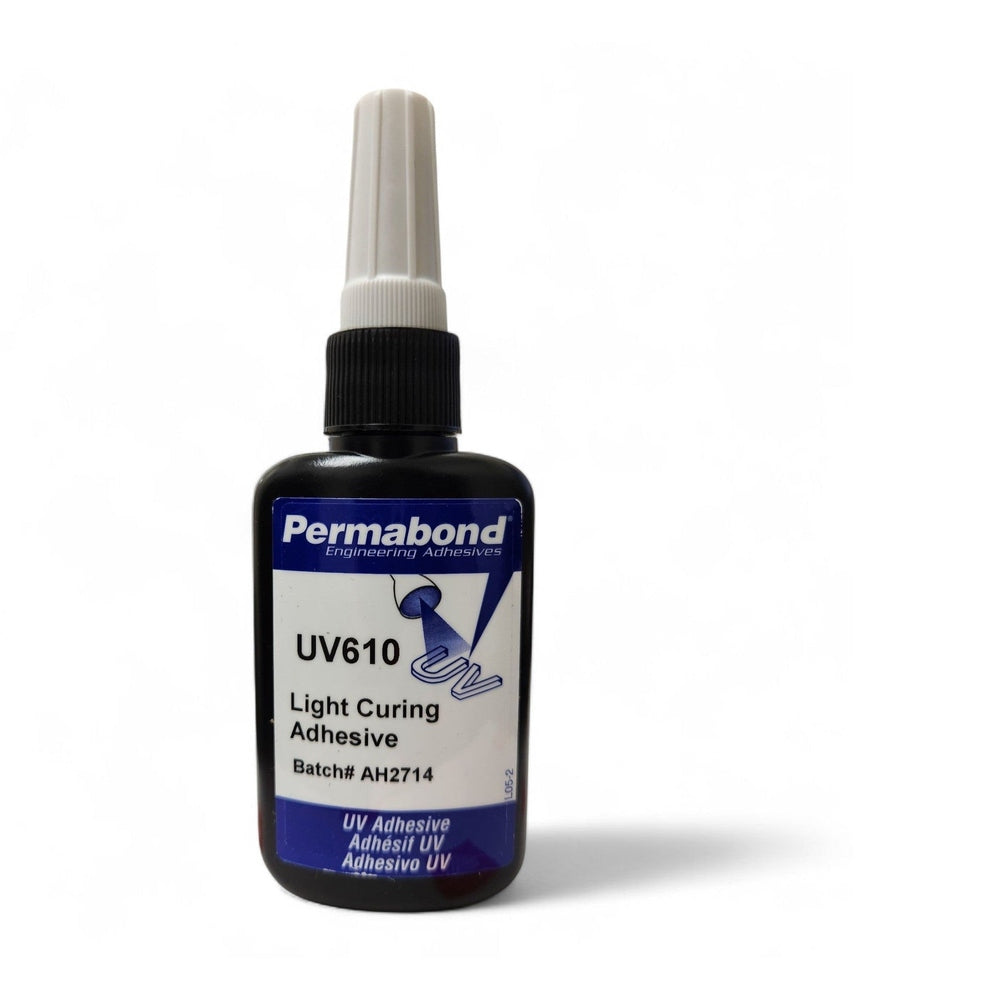

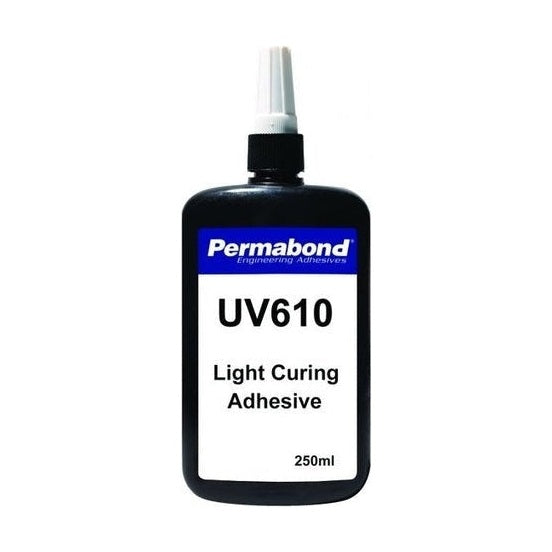

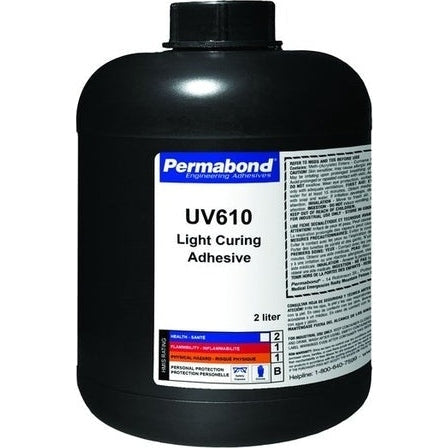

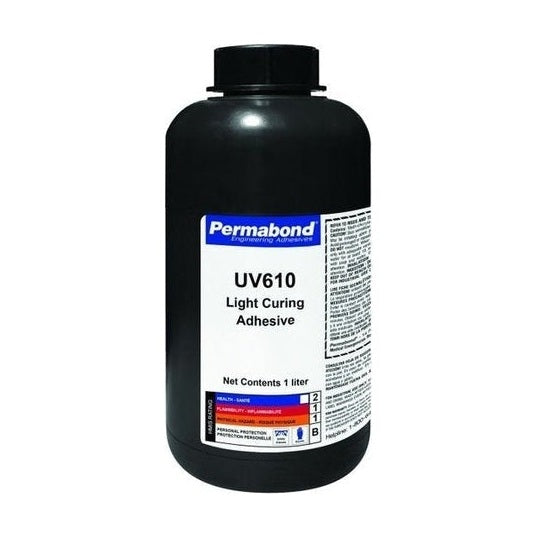

Permabond UV610 UV translucent glue for Glass and Metals
Need Datasheets?
Click Here to visit our Datasheet Server (TDS, SDS, Fact Sheets, Selector Guides, etc)
Regular price
$ 34.99 USD
Call for ETA
PERMABOND UV610 is a single part, fast setting, UV curable adhesive designed specifically for bonding glass and metal. Its high strength makes it suitable for a wide range of applications including glass furniture where it is possible to create high strength edge joints.
Features & Benefits
- Glass andMetal Bonder
- Cure on demand
- High shear strength
- Fast curing with low power lamps
- 100% solids, no solvents
- Excellent adhesion to metal and glass
Performance Characteristics
|
Chemical composition |
Methacrylate ester |
|
UV Curing Wavelength |
365 - 400 nm |
|
UV Curing Time (by strength of light) |
Low power 4mW/cm² battery lamp: 10 secs |
|
Tensile Strength |
2500psi (17 N/mm^2) |
|
Shear Strength |
Glass to Steel: 1900-2300psi (13-16 N/mm^2)
|
|
Temperature Resistance |
212f (100C) 750% strength 302f (150C) 10% strength |
|
Appearance |
Translucent |
|
Viscosity@25°C |
20rpm: 800-1000 mPa.s (cP) |
|
Elongation (ISO37) |
95% |
|
Hardness (ISO868) |
65-75 Shore D |
