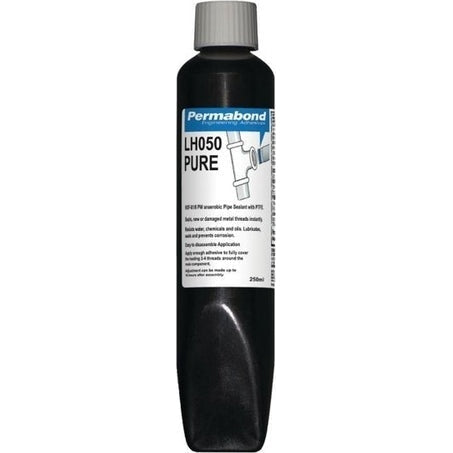

Permabond LH050 PURE Anaerobic Thread Sealant (Potable Water Safe)

Permabond

SKU: PBND_LH050_PURE_250ML_TUBE

  • $ 264.99
    2 units are available


    PERMABOND LH050 PURE anaerobic retaining compound and sealant is single component paste that cures only when in contact with metal parts and oxygen is excluded. The sealant fills up the entire space between male and female parts, instantly sealing the connection for water, hydraulic fluids, air, gases and chemicals. Once cured, the cured anaerobic sealant typically exceeds the burst rating of the pipe and in addition it locks the pipes, plugs or fittings against vibration loosening. After cure, disassembly of fittings for maintenance is still possible using normal tools.

    Permabond LH050 PURE is a Potable Water compliant formula, certified by ANSI and NSF

    Permabond LH050 PURE pipe sealant performs well on most metals, particularly steel and brass. It provides an excellent alternative to pipe dopes and pipe tapes for sealing pipe joints.

    Another feature of PERMABOND LH050 PURE is the ability to seal pipes that have not been fully seated. In piping systems, pipe joints must connect with other pipes and in the direction in which the joint must face may not allow the pipe to be fully seated. LH050 PURE will seal – even when the direction in which the pipe must face does not allow the complete seating of the threads. Anaerobic sealant will seal with simple hand assembly while still obtaining the seal of a fully torqued pipe joint.

    Features & Benefits

    • Full cure seal to the burst rating of pipe
    • Easy to use and apply
    • Directional freedom
    • NSF/ANSI 61 Certified - Drinking Water System Components
    • Does not contain solvents
    • Excellent chemical and temperature resistance
    • Cures at room temperature
    • Will not shred, tear or cause blockages

    Physical Properties of Uncured Adhesive

    Chemical composition Methacrylate esters
    Appearance White
    Viscosity @ 25°C 250,000 mPa.s (cP)
    Specific Gravity 1:1
    UV fluorescence No



    Typical Curing Properties

    Maximum gap fill 0.5 mm (0.02 in)
    Time taken to reach handling strength (M10 steel) @23°C 2 hours
    Full strength (M10 steel) @23°C 24 hours



    Typical Performance of Cured Adhesive

    Torque strength (M10 steel ISO10964) Break 4 N·m 35 in.lb
    Prevail 3 N·m 25 in.lb
    Compressive shear strength (steel collar & pin ISO10123) 7 MPa (1000 psi)
    Coefficient of thermal expansion 90 x 10^-6 mm/mm/°K
    Thermal conductivity 0.19 W/(m.K)
    ×
