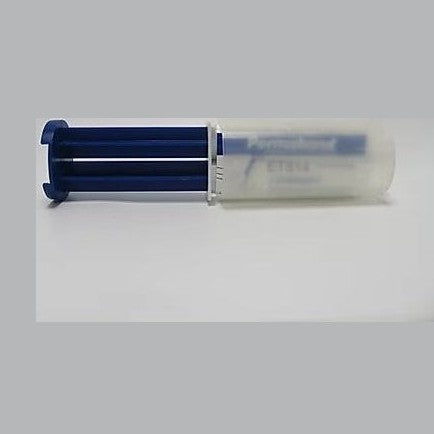

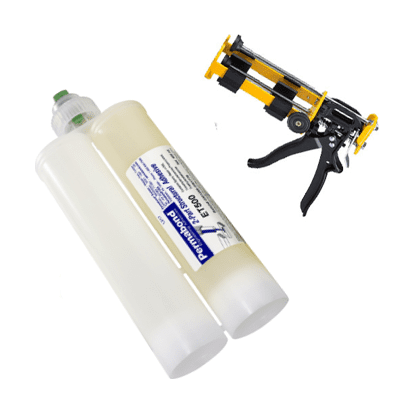

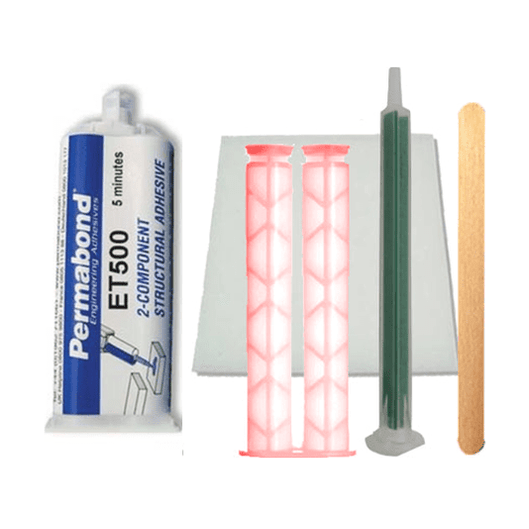

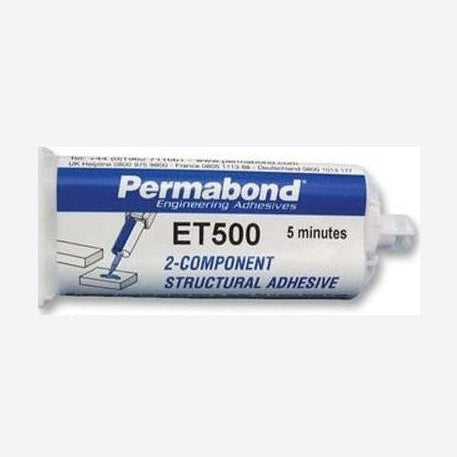

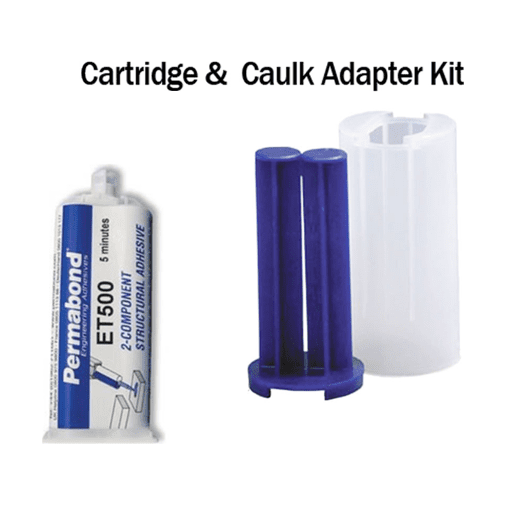

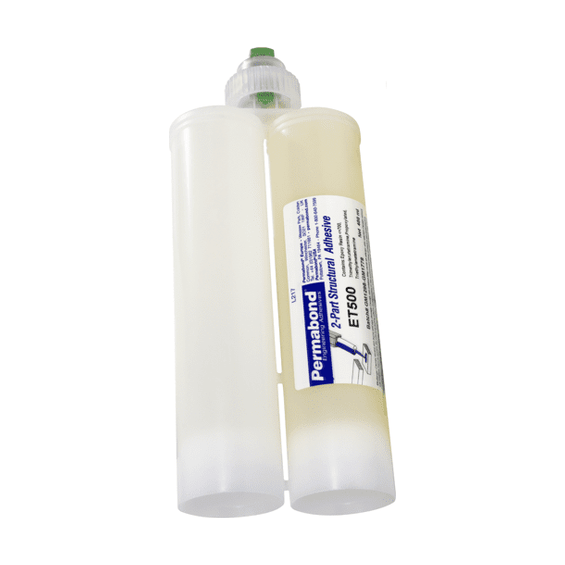

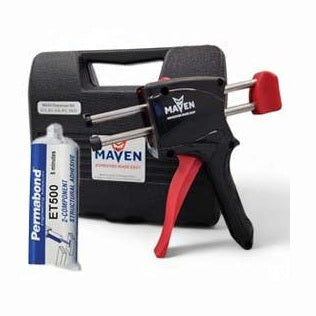

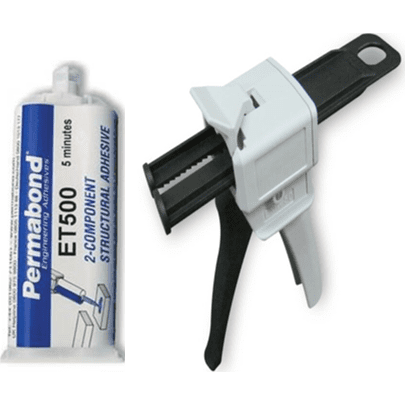

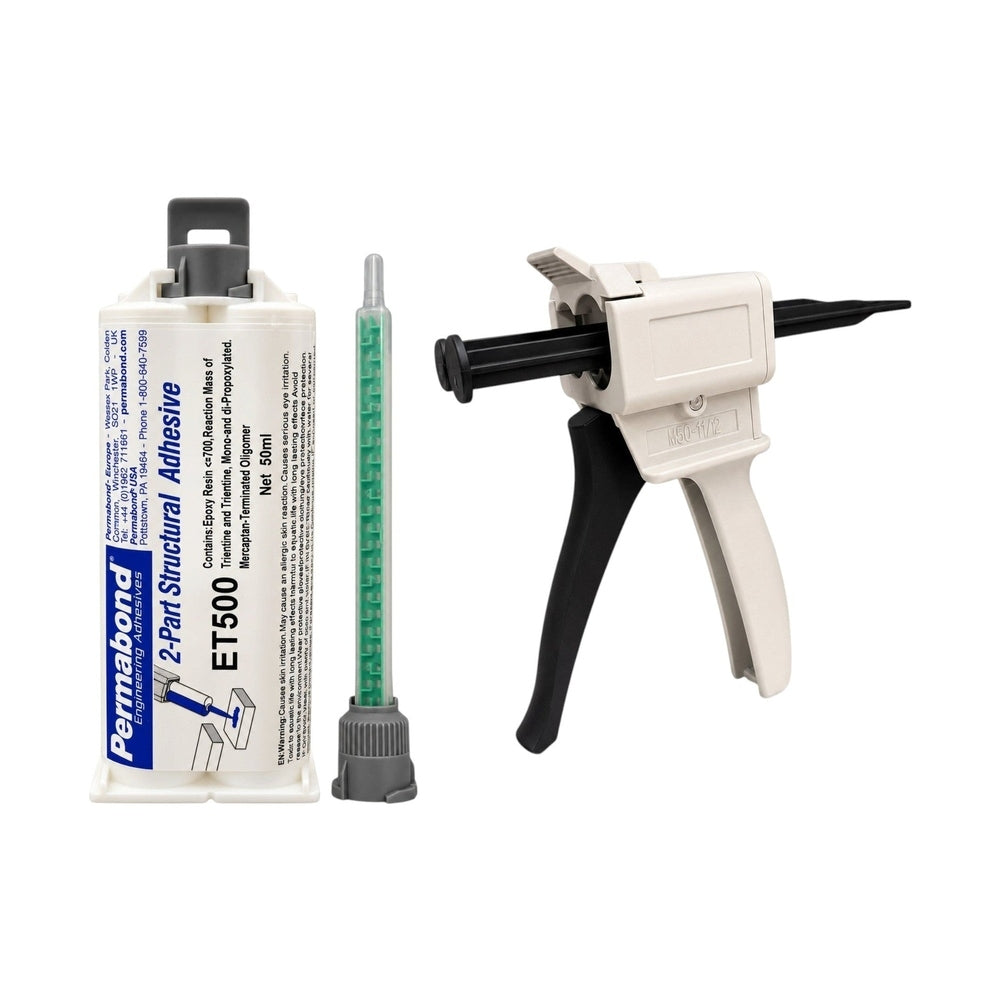

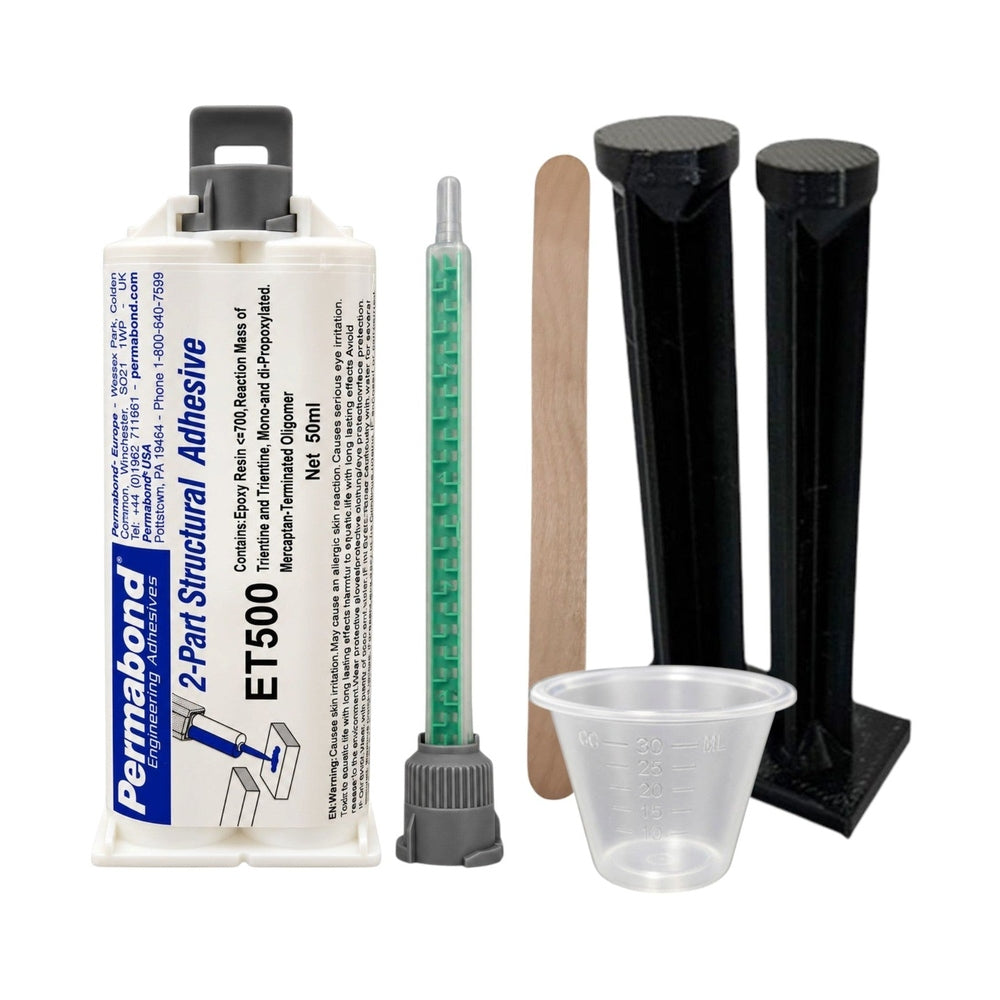

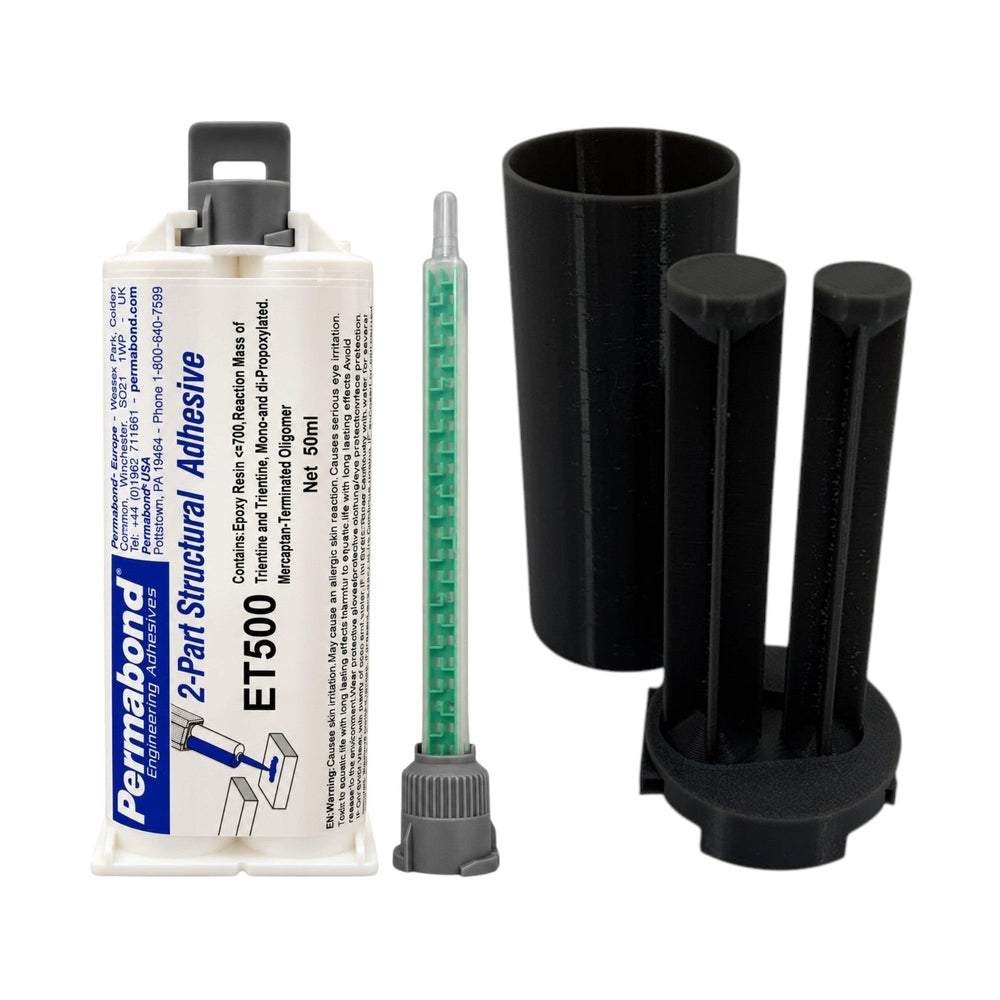

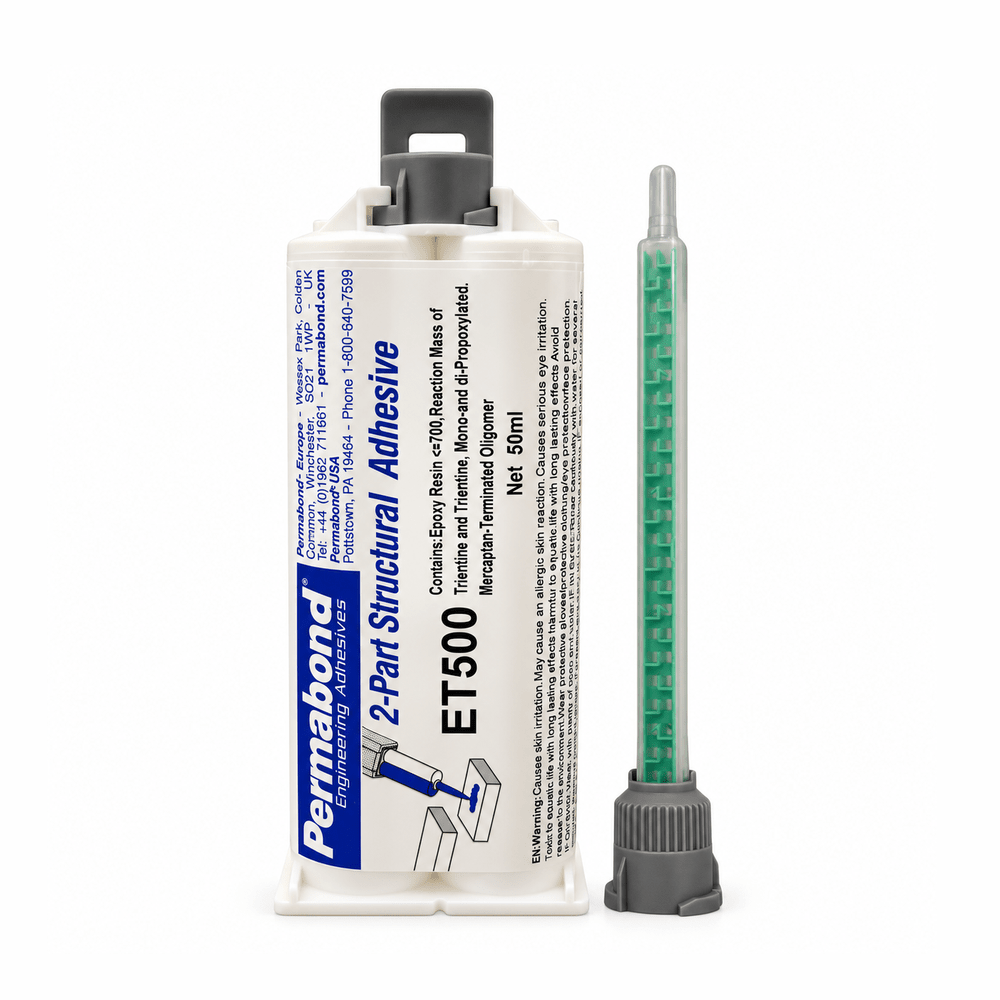

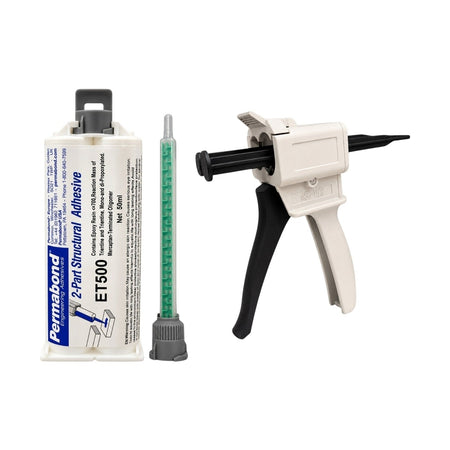

PERMABOND ET500 Mixing Ratio 1:1 Fast set 3 - 4 min Cure Two Component Epoxy Clear Cartridges & Accessories
PERMABOND ET500 is a two-part fast-setting epoxy adhesive which bonds to a wide variety of substrates such as wood, metal, ceramics and some plastics and composites. It cures rapidly at room temperature to give handling strength in approximately 5 minutes. This product is ideal for general purpose bonding. It is typically used for small component assembly and is suitable for applications that require a clear bond line.
Benefits
- High peel strength increases design versatility
- 1:1 mix ratio of most Permabond 2-component epoxies reduces equipment costs
- Set time 3 - 4 min
- Durability increases material choices
- Rapid cure increases production rates
- Room temperature cure reduces equipment & energy costs
- Solvent free improves workplace safety
- Low odour improves workplace environment
Physical Properties of Uncured Adhesive
|
|
ET500A |
ET500B |
|
Chemical composition |
Epoxy Resin |
Amine Hardener |
|
Appearance |
Colourless |
Colourless |
|
Viscosity @ 25°C |
12,000-18,000 mPa.s (cP) |
15,000-30,000 mPa.s (cP) |
|
Specific gravity |
1.2 |
1.1 |
Typical Curing Properties
|
Mix ratio by volume |
1:1 |
|
Maximum gap fill |
2 mm 0.08 in |
|
Usable / pot life @23°C |
3-4 mins |
|
Handling time @23°C |
5-8 mins |
|
Working strength @23°C |
30-60 mins |
|
Full cure @23°C |
24 hours |
