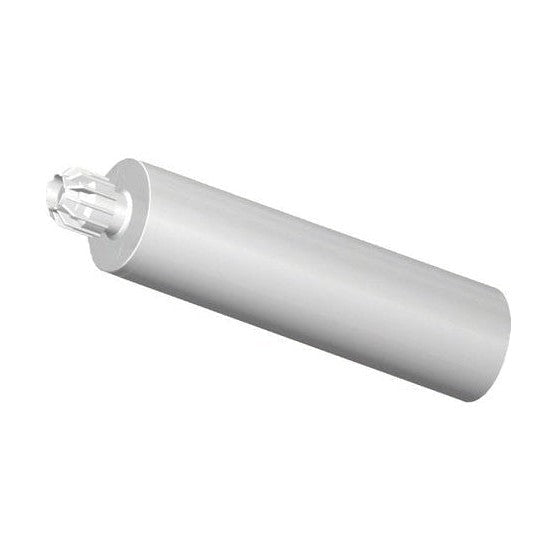

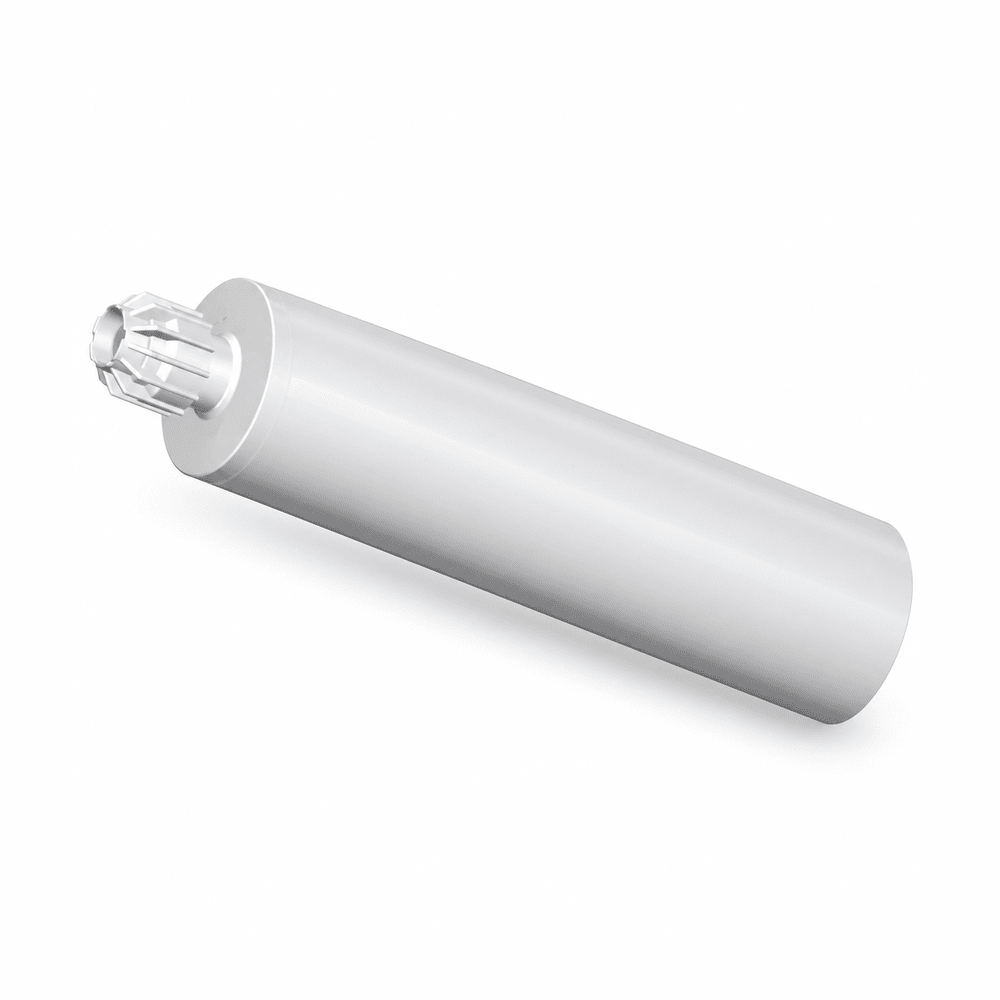

MixPac MixPeel 265ml 2:1 Ratio Empty Coaxial Cartridges (8.96oz) with included Pistons & Sealing Caps AQ 265-02-10-04

MixPac MixPeel 265ml 2:1 Ratio Empty Coaxial Cartridges (8.96oz) with included Pistons & Sealing Caps.

The MixPac MixPeel Cartridge system introduces a great advantage – the ability to dispense two-part materials using common caulking guns (one-part dispensers). This versatile cartridge is ideal for a broad range of industrial and construction applications such as chemical anchoring, bonding, crack repair, and 2-part polyurethane sealants. The MixPeel Cartridge ensures high filling volume, less material waste, and great shelf-life,

Features:

• Works with all standard caulking guns and 1-part dispensers

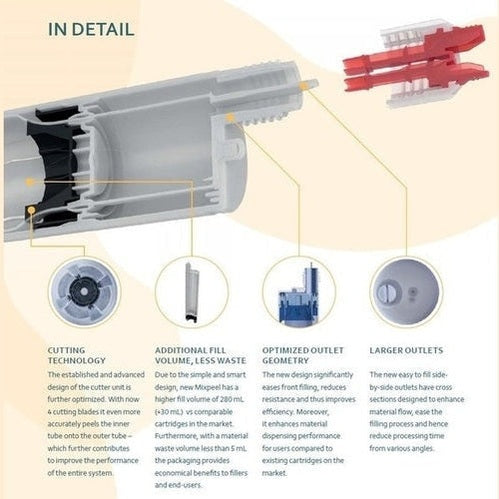

• Highest Evacuating/Extruding cartridge on the market (97% evacuation rate)
• (Lowest Wasted material inside cartridge (97% evacuation rate)
• Can be filled from the back (inlet) or from the front (outlet)
• No extra pistons are needed, the pistons are included in what you get.
• Cartridge Barrel Length 212 mm (8.35 in)
• Total Cartridge length outlet to back 244.5 mm (9.63 in)
• Cartridge Barrel Outer Diameter 49.9 mm (1.97 in)

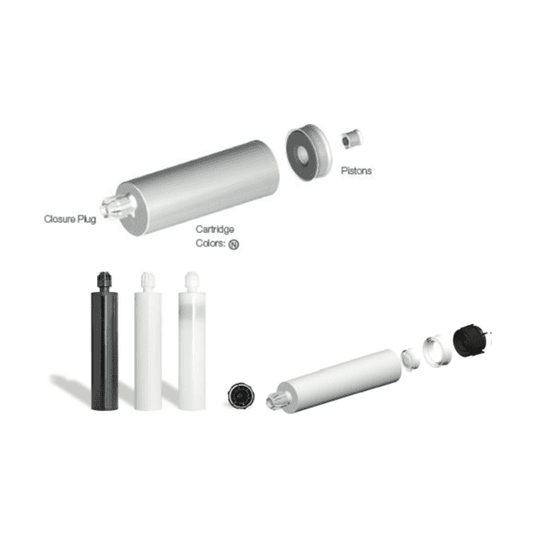

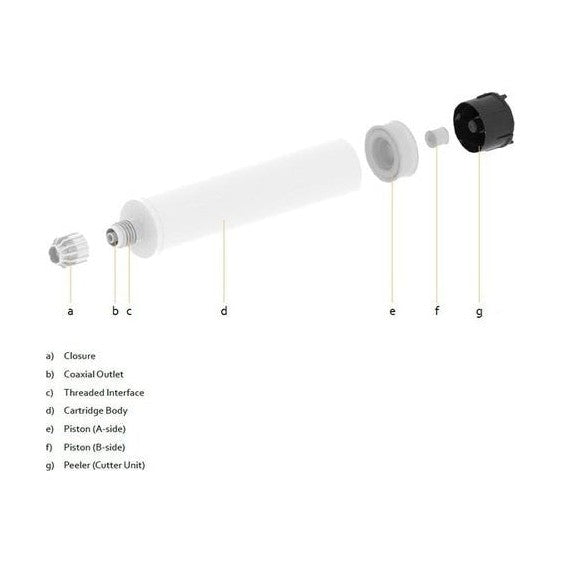

Each Coaxial MixPeel Cartridge includes:

• 1 Coaxial Cartridge housing: 2:1 ratio 265ml:  Part Number: AQ 265-02-10-04 (301830)
• 2 pistons, used for both cavity sides; Larger Piston Part Number PCAQ 0265-02-51 (301786), Smaller Piston Part Number PCBQ 0265-02-51 (301788)
• Front-filled cartridges have the pistons factory-installed, whereas back-filled cartridges have the pistons not installed but included

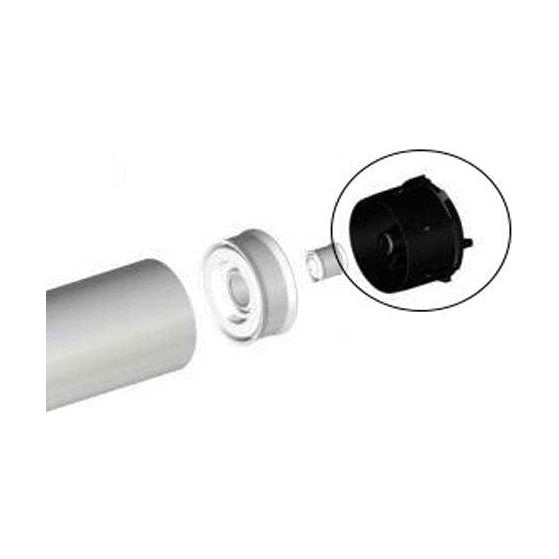

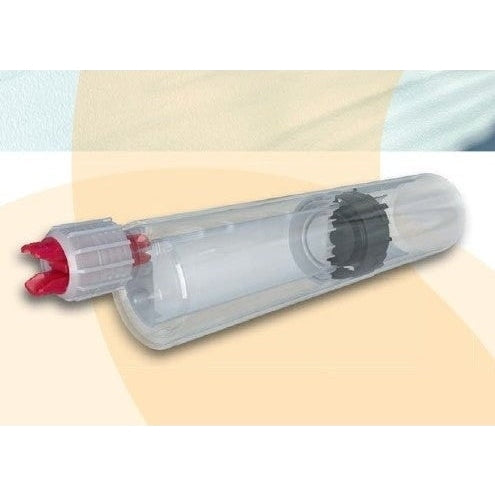

• 1 Cutter Assembly (pops into cartridge back) : CU 265-02-136 (301790)


These Coaxial Cartridges are Available in 2 kit packages, plus Accessories:

• Empty MixPeel Coaxial Cartridges, Caps, Pistons & Cutter kits
• Full Starter Kits with dispenser and matching mixing nozzles included
• Useful Accessories

About the MixPeel Coaxial Cartridges:

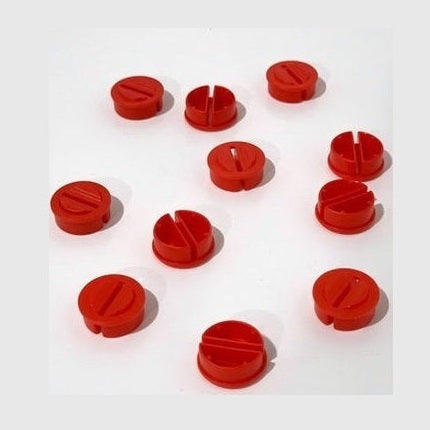

These Coaxial MixPeel cartridges include the matching pistons, cutter assemblies and a re-sealable tip (or cap). They are ready for filling with material, storing and dispensing.

These 2-Part cartridges are 1:1 ratio

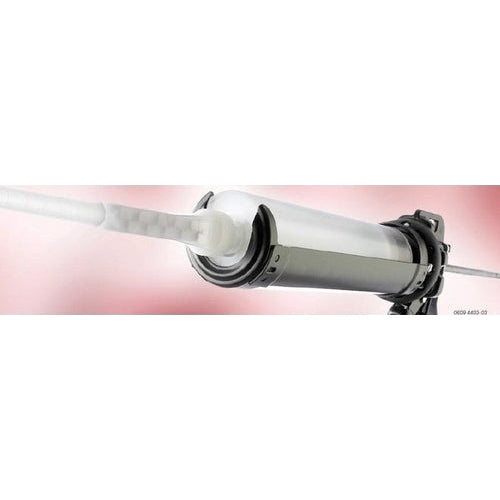

The cartridge design/fit Is the 'Caulking Tube' style and are fully compatible with use inside all standard Caulking Guns.

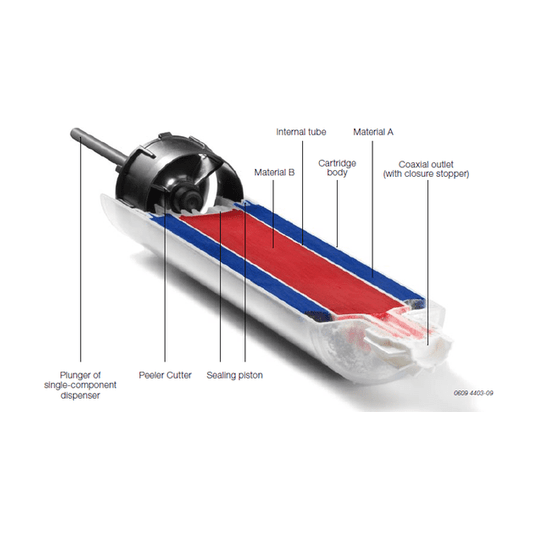

These 2-Part Cartridges are industrial grade, silicone free, and rated up to 100psi sustained pressure. The Cartridge design/fit using the standard caulking tub size template. The 2-Part design keeps the two adhesive parts separate, until a separate mixing Nozzle is attached, where the two parts are pushed or extruded into the mixing Nozzle and bonding or curing begins.

The cartridges fit all standard Bell-Style mixing Nozzles

The 2-Part design keeps the two adhesive parts separate, until a separate mixing nozzle is attached, where the two parts are pushed or extruded into the mixing nozzle and bonding or curing begins.

Each kit includes different cartridge-count options… either 5, 10, 25, 50, or 100 cartridges with the necessary cap and sealing pistons to close and seal the empty cartridges.

These cartridges are perfect for storing and applying bulk adhesives that use a 2:1 mix ratio, where precise metering and mixing is needed.

About the Starter Kits:

Each Starter Kit includes either 5, 10, 25, 50, or 100 coaxial cartridges, related cutter assemblies that snap into the back, sealing pistons and cartridge caps, mixing nozzles (one nozzle for each cartridge in your kit), and an industrial grade caulking gun that is strong enough to dispense the material that's filled.

We recommend checking out our Starter Kits to get set up and running. Or if you prefer getting the dispenser separately, check out the Dripless DC400 Dispensers, which will enable you to dispense the adhesives out of these cartridge kits.

NOTE: Additional accessories needed. Consider the pre-configured starter kits, or view the accessories scroll-bar below to ensure you get what you need. For example, with these empty cartridges you will also need mixing nozzles and a dispensing product to push/extrude/dispense the adhesive out. We recommend also getting one of our Caulking Dispensers, which will enable you to dispense the adhesives out of these cartridge kits. The mixing nozzles needed are of the "Bell" or “Integrated Nut” design, which easily twist on and off the cartridge end. These nozzles tend to be difficult to clean and store after their first use, and therefore generally considered to be single-use accessories. These Cartridges use standard static mixer nozzles. Cartridges immediately available in mix ratio's 1:1 or 2:1. Mix ratios of 4:1 and 10:1 can be ordered but on a special-order basis due to infrequent market demand. Products are industrial grade safe to 100 psi and are certified silicone free. Dispensers are available for all size cartridges either in manual of pneumatic.

Cartridge systems are available in a variety of volumetric ratios. Please be sure to select the correct ratio for your two component system.
