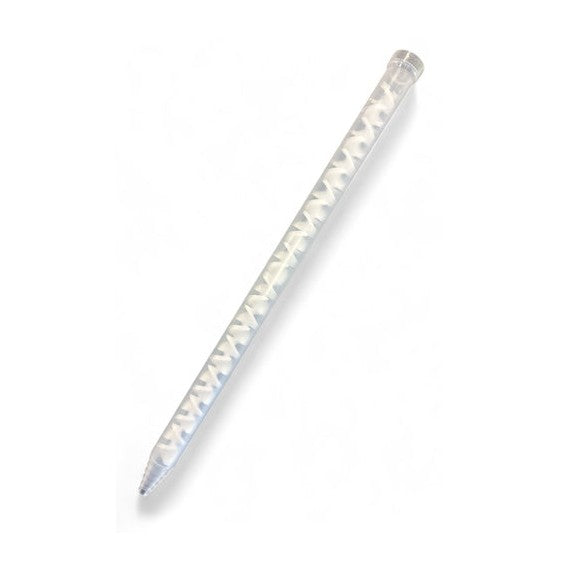

MixPac MCH 13-24T (102437) 13mm Inner Diameter (0.51 in) Mixing Nozzle-Round Helix Bell Style - for 1:1 & 2:1 ratio 200ml, 400ml, 600ml, 1500ml 2-Part cartridges

Need Datasheets? Need Accessories?

• Click Here to visit our Datasheet Server (TDS, SDS, Fact Sheets, Selector Guides, etc)
• Check out Popular Accessories below by scrolling down just a bit on this page.
Quantity
SKU: MIXPAC_MIXER MCH 13-24T 102437_001
$ 2.83 USD
737 units available
737 units are available

SKU

  • Type Mixing Nozzles
  • Vendor MixPac
  • SKU MIXPAC_MIXER MCH 13-24T 102437_001
Description Popular Uses, Popular Applications Need Datasheets?

MixPac MCH 13-24T (102437) 13mm Inner Diameter (0.51 in) Mixing Nozzle-Round Helix Bell Style - for 1:1 & 2:1 ratio 200ml, 400ml, 600ml and 1500ml universal Bell-Style mixing nozzles (11.5-inch 24-element Mixing Nozzles) for all standard C-System 200ml, 400ml, 600ml and 1500ml 2-Part epoxy and adhesive cartridges.

This nozzle replaces/substitures the Nordson Nozzle: #7701770 and #7701010  24-Element Part  : 11.7in (29.72mm) length, 0.5in (12.8mm) inner diameter

Specifications:

  • 13mm inner diameter (0.51 inch) helix, round nozzle style
  • 11.5-inch nozzle length
  • 24-element count (24 mixing cycles for the material)
  • Bell Style inlet fitting
  • For all Medium and Thicker viscosities, 80,000 cP or higher
  • Recommended for Epoxy, Silicone, Urethane, Acrylic, Polyesters
  • Not recommended for Urethanes and Polyturethanes (thse need more mixing than this nozzle will do)

Works perfectly with all major branded adhesives that use the larger (C-System) adhesive cartridges, 200ml, 400ml, 600ml, 1500ml, and related cartridge types. Works with all standard C-System cartridges by Sulzer MixPac, and 2k cartridges by Nordson EFD. Each Pack includes the same number of mixing nozzles plus the related inner/inside mixing assembly

The MixPac MCH 13-24T Mixing Nozzle-Round Helix Bell Style are used to dispense 2-part adhesives from 200ml, 400ml, 600ml and 1500ml C-System plastic cartridges, and works with both 1:1 and 2:1 ratio formulas.

This mixer is connected with a bell outlet and has a stepped tip that can be cut to adjust the amount of adhesive being dispensed.
