Product Name

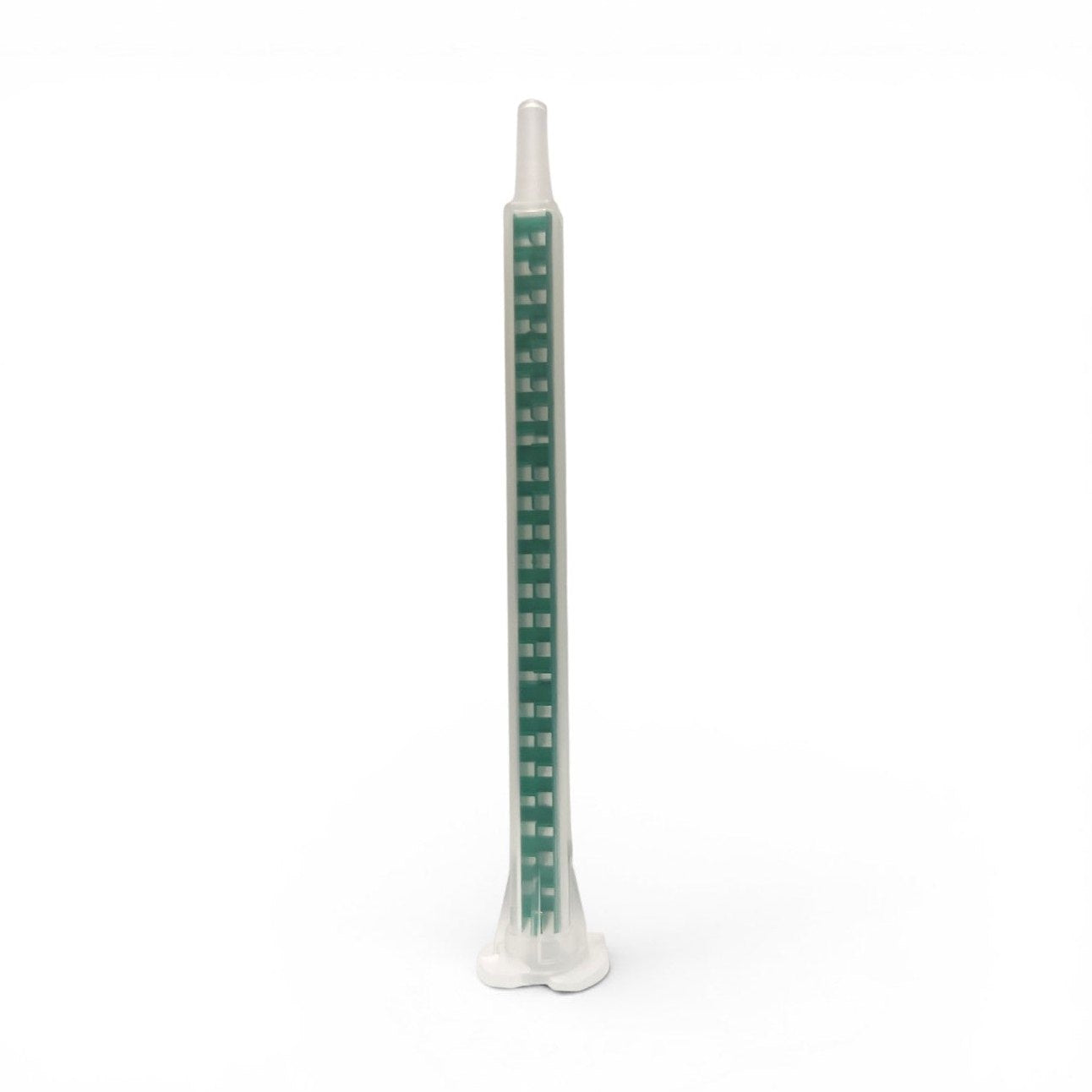

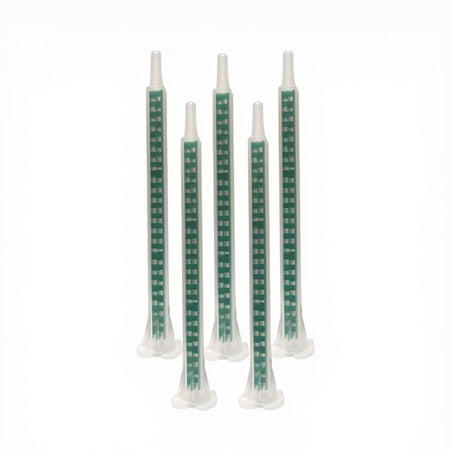

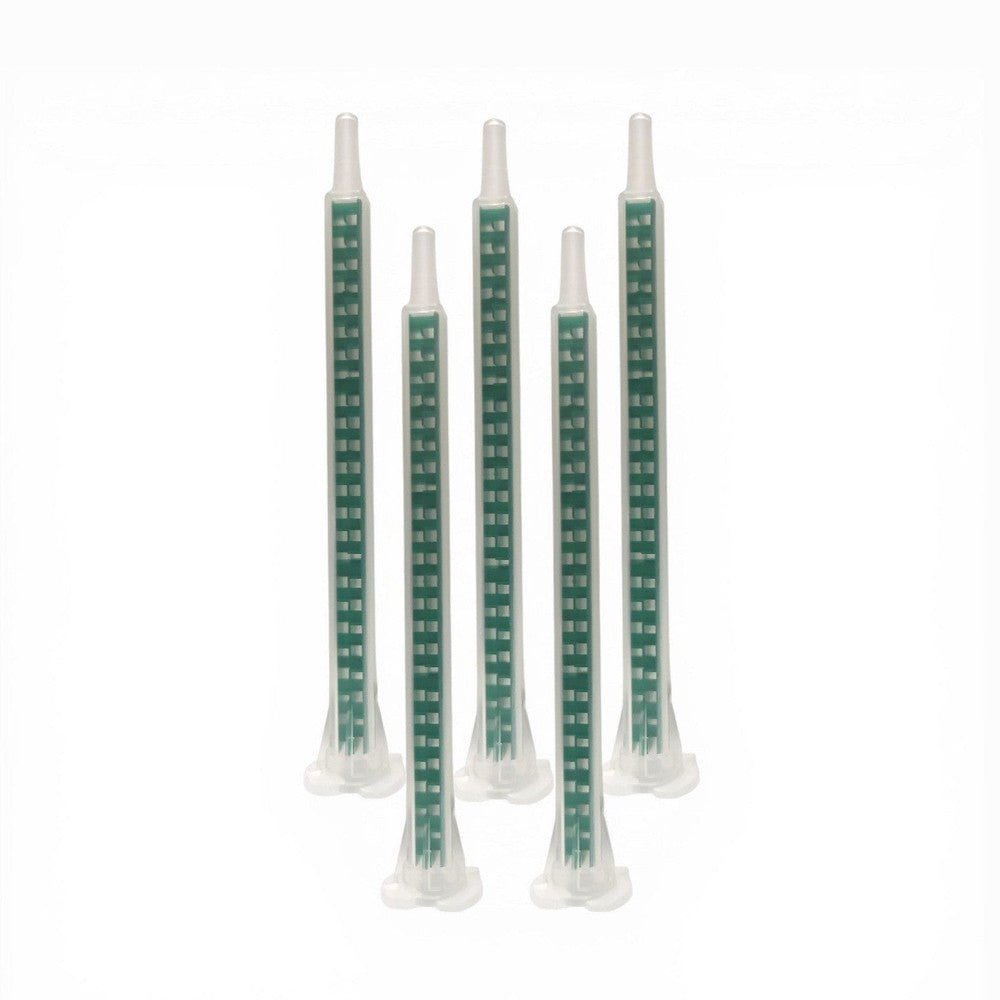

MixPac MAQ 05-24L Quadro Square 4.5-inch 24-element (MAQ 05-24L) High-Efficiency Mixing Nozzles for 50ml Cartridges
Brief Description
The MixPac MAQ 05-24L is a high-efficiency, disposable static mixing nozzle specifically engineered for the thorough and consistent blending of two-component adhesives and sealants. It features a unique Quadro (square) element design and is designed for use with standard 50ml (and some 75ml) bayonet-style cartridges.
Popular Applications & Uses
This mixing nozzle is widely used for precise application of various two-part materials, including epoxies, polyurethanes, silicones, acrylics, and methacrylates. Popular applications include bonding and sealing components in electronics assembly, aircraft and automotive manufacturing, wind turbine assembly and repair, home building, construction, and concrete repair. It is also utilized in composite bonding, general industrial adhesive applications, and DIY repair projects.
Industries that Commonly Use It
- Aerospace/Defense
- Automotive Service/Repair
- Construction/ Building Services
- Fabrication
- General Manufacturing
- LED/Electronics
- Marine
- Metal Fabrication
- Plastic Fabrication
- Prosumer
- Sign & Display
- Transportation/ Specialty Vehicle
Special and Unique Features
- Quadro (Square) Mixer Design: Provides superior mixing performance and efficiency in a compact footprint, leading to less adhesive waste compared to traditional round spiral mixers.
- 24 Mixing Elements: Ensures thorough and consistent blending of two-part materials for reliable bond strength.
- Bayonet Twist-Lock Mounting: Offers easy, secure, and leak-proof attachment to 50ml (and some 75ml) AA series cartridges.
- Luer Slip Tip: Allows for the attachment of various needles and tips, enabling precise dispensing and control over bead size.
- Multi-Ratio Compatibility: Designed to work effectively with various mix ratios, including 1:1, 2:1, 4:1, and 10:1.
- Disposable: Provides convenience and maintains hygiene by eliminating the need for cleaning.
Key Properties
- Length: 115 mm (4.53 inches)
- Inner Diameter (ID): 5.3 mm (0.21 inches)
- Number of Elements: 24
- Element Material: Polypropylene (PP)
- Housing Material: Polypropylene (PP)
- Element Color: Green
- Waste Volume: 1.90 ml
- Cartridge Compatibility: 50ml (and some 75ml) AA series cartridges
- Mix Ratio Compatibility: 1:1, 2:1, 4:1, and 10:1
- Attachment Type: Bayonet (Twist and Lock)
- Tip Style: Luer Slip Tip
Surface Compatibility
The MixPac MAQ 05-24L is compatible with a broad spectrum of two-component adhesive and sealant chemistries, including epoxy, polyurethane, silicone, acrylic, and methacrylate. These adhesives, when properly mixed, can bond to various substrates such as metals, wood, composites, plastics, concrete, masonry, and cloth.
Known backups / known substitutes
Known alternatives and substitutes for the MixPac MAQ 05-24L include other MixPac MAQ series mixers (e.g., MAQ 05-16L), MixPac MAH series mixers (which feature round helical elements), and other brands of static mixing nozzles designed for 50ml bayonet cartridges. These can include nozzles compatible with major adhesive brands like Loctite Hysol, 3M Scotch-Weld, Devcon, Huntsman Araldite, and Gorilla Epoxy cartridges.
Comparison Note
The MixPac MAQ 05-24L stands out due to its Quadro (square) mixer design, which is recognized for delivering superior mixing performance and high efficiency with a low pressure drop. This design often results in less adhesive waste compared to traditional round spiral mixers. It ensures precise control over mixing ratios, contributing to consistent bond strength and durability, and effectively minimizes material waste during application.
