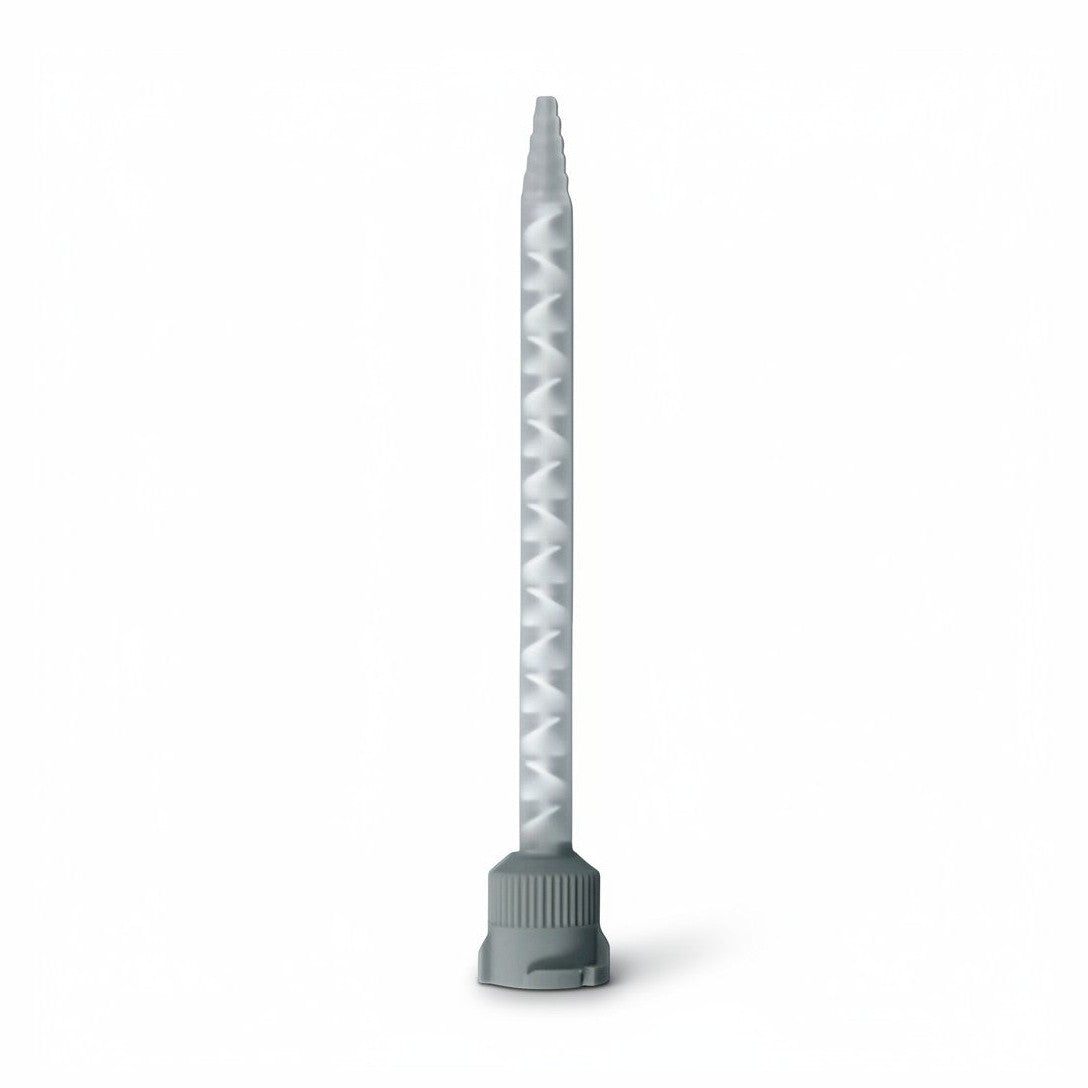

MixPac Mixing Nozzle MBH 06-20T (116471)

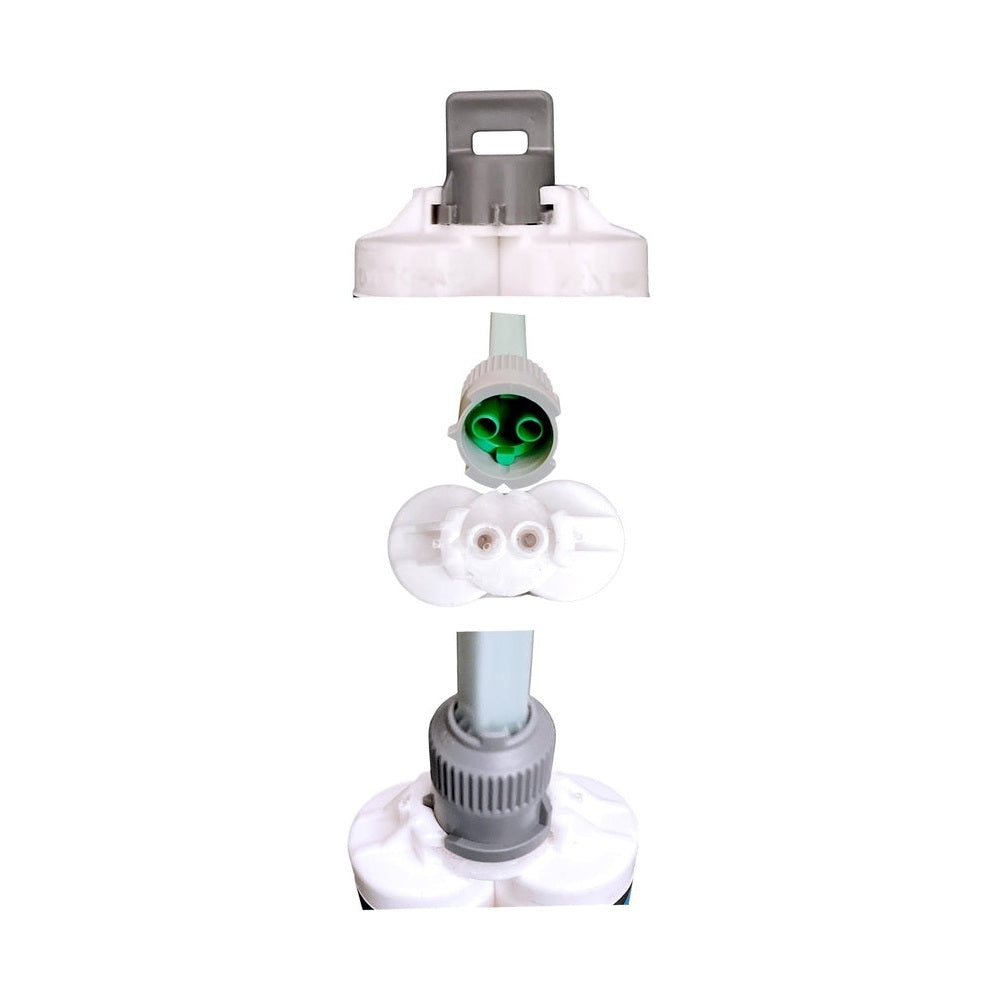

This nozzle is the industry standard long-time trusted nozzle for 50ml B-system Cartridges (also known as 2K, 2-part, and square-back), 6-inch 20-element Stepped-Tip Mixing Nozzles (Static Mixers). Works with standard B-System / Type-A 50ml 2-Part epoxy and adhesive cartridges.
- MixPac Part Number: MBH 06-20T (102380)
- Material/Color: Clear Plastic, with white internal mixing element
- Works with the following Branded 50ml cartridges:
- Loctite Hysol, Permabond, 3M Scotch Weld, Devcon Dev-Packs & Mark5, Huntsman Araldite 2000+ Gorilla Epoxy, and all other brands that use the following 50ml cartridge types.
- Works with the following 50ml cartridge types:
- All Type-S or Type-A 50ml "Square-Back or Rectangle-Back" Cartridge
- Syringe Inner Diameter: 6mm/ 0.25";
- Tip Style: Stepped tip for easy cutting and widening of outlet hole
- Tip-end hole Inner Diameter: 0.5mm/ 0.06"
- Inner Mixing Elements: 20 elements (how many mixing 'points' are found inside the nozzle)
- Total Syringe Length: 153mm/ 6"

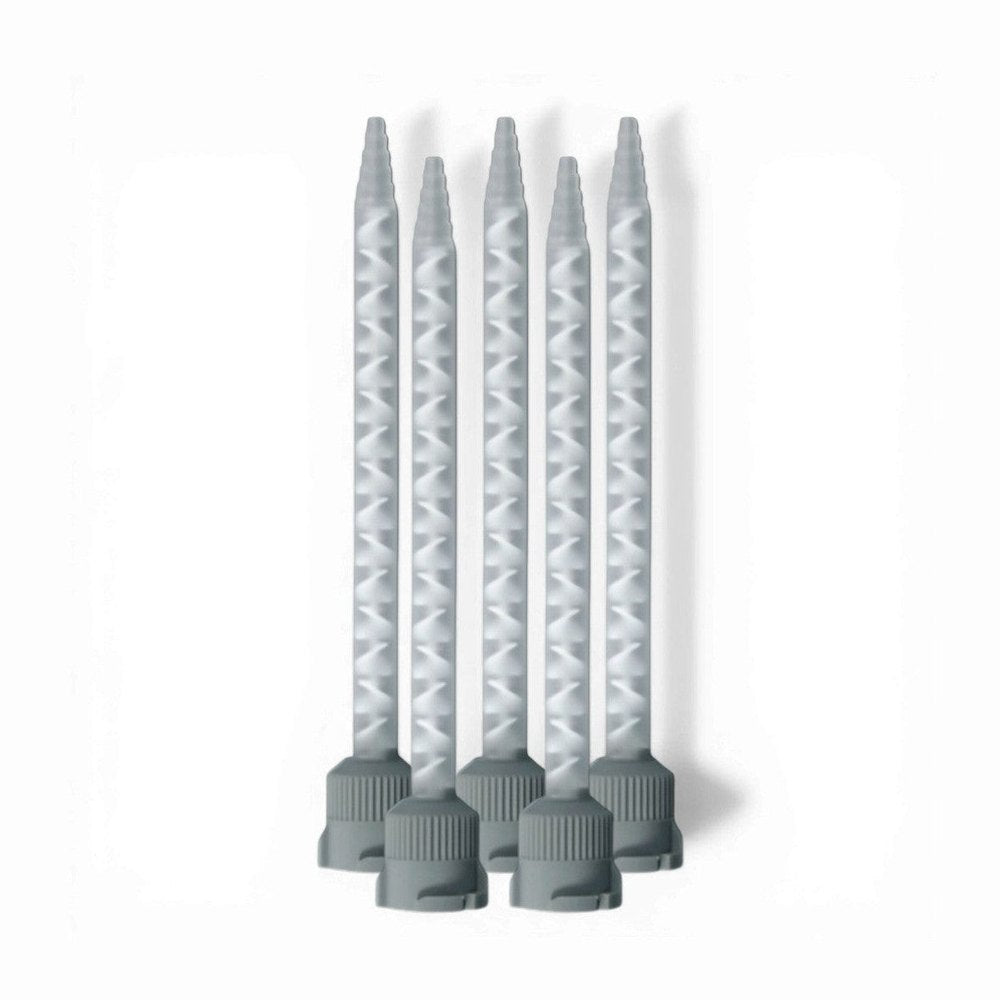

- Package Contents vary by the Pack size you select.
- Each Pack includes the same number of mixing nozzles plus the needed inner/inside mixing assembly
