Product Name
MixPac MAH-05-13T Small Mixing Nozzle for 50ml Cartridges - 3 5/16-inch 13-element Bayonet Static Mixers
Brief Description
The MixPac MAH-05-13T is a disposable static mixing nozzle engineered for the efficient and homogeneous blending of two-component adhesives, sealants, and resins dispensed from 50ml cartridges. It features a secure bayonet (twist-lock) connection and 13 precisely designed internal mixing elements to ensure consistent material properties upon application.
Popular Applications & Uses
- Bonding and sealing with two-component epoxy, polyurethane, silicone, acrylic, and methacrylate adhesives.- Structural bonding applications requiring high-strength bonds.- Seam sealing in automotive and various industrial applications.- Potting and encapsulating resins, particularly in electronics manufacturing.- Composite manufacturing processes.- Concrete repair and other construction-related bonding.- Assembly tasks in electronics, communications, aerospace, and automotive sectors.- Wind turbine assembly and repair.- Home building and general construction projects.- Signage and display assembly.
Industries that Commonly Use It
- Aerospace/Defense- Automotive Service/Repair- Cabinet & Woodworking- Chemical Industry- Construction/ Building Services- LED/Electronics- General Manufacturing- Metal Fabrication- Mold Making/ Casting- Plastic Fabrication- Prosumer- Sign & Display- Transportation/ Specialty Vehicle
Special and Unique Features

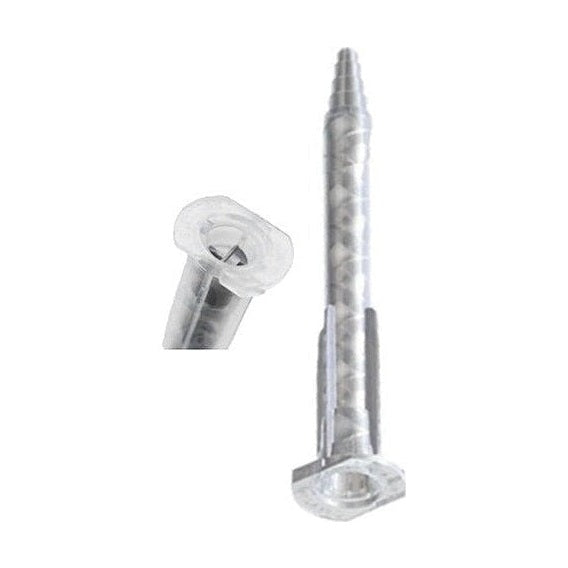

- Features a bayonet (twist-lock) connection for quick, secure, and tool-free attachment to standard 50ml (and some 75ml/100ml 1:1 ratio) A-System cartridges.- Contains 13 helical mixing elements that ensure thorough and consistent mixing of two-part materials.- Designed with a first element that aligns with the cartridge's dividing wall, preventing cross-contamination of components at the interface.- Constructed from clear plastic with white internal mixing elements, allowing for visual confirmation of mixing.- Equipped with a stepped outlet tip that can be trimmed to adjust the orifice size and control flow rates.- Compatible with common 1:1 and 2:1 mix ratios for a wide range of two-component materials.- Manufactured to be industrial grade safe and silicone-free.
Key Properties
- Length: 3 5/16 inches (85mm).- Inner Diameter: 0.213 inches (5.4mm).- Number of Mixing Elements: 13.- Mixer Type: Helix (round/helical elements).- Housing Material: Polypropylene (PP).- Element Material: Polypropylene (PP).- Waste Volume: Approximately 1.36 ml (1.4ml).- Color: Clear housing with white elements.
Surface Compatibility
- Compatible with a wide array of two-part adhesive and sealant chemistries, including:- Epoxy adhesives.- Polyurethane adhesives and sealants.- Methyl Methacrylate (MMA) adhesives.- Silicone sealants.- Acrylic adhesives.- Polyester resins.- Doming resins.
Known backups / known substitutes

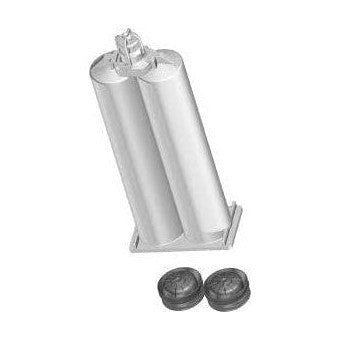

- This product is a direct substitute for the MedMix Sulzer MixPac MAH 05-13T.- It is compatible with 50ml cartridges from major brands such as Loctite Hysol, 3M Scotch Weld, Devcon Dev-Packs & Mark5, Huntsman Araldite 2000+ Gorilla Epoxy, and all other brands utilizing Type-A or Type-S 50ml "Square-Back or Rectangle-Back" cartridges.- Other MixPac MAH series mixers with varying element counts or lengths (e.g., MAH 05-07T, MAH 05-17T) can serve as alternatives depending on specific application requirements.- MixPac MAQ series mixers, which feature a QUADRO square design, offer different mixing characteristics and can be considered substitutes for specific applications.
Comparison Note
Static mixing nozzles like the MAH-05-13T are crucial dispensing consumables that eliminate the need for manual mixing, thereby ensuring precise, consistent, and homogeneous blending of two-part compounds. This consistency is vital for achieving the desired material properties and optimal bond strength. The 13-element helical design of this nozzle provides an effective balance of mixing efficiency and minimized material waste, ensuring thorough blending for most 1:1 and 2:1 ratio materials. Its bayonet connection facilitates quick and secure attachment to cartridges, significantly enhancing productivity and reducing setup time in various industrial and professional applications.
