MixPac MGQ 08-24T Quadro Square 24-element Integrated-Nut Low-Waste Mixing Nozzle - for 200ml, 400ml, 600ml, 1500ml 2-Part cartridges

Product Name

MixPac MGQ 08-24T Quadro Square 24-element Integrated-Nut Low-Waste Mixing Nozzle - for 200ml, 400ml, 600ml, 1500ml 2-Part cartridges

Brief Description

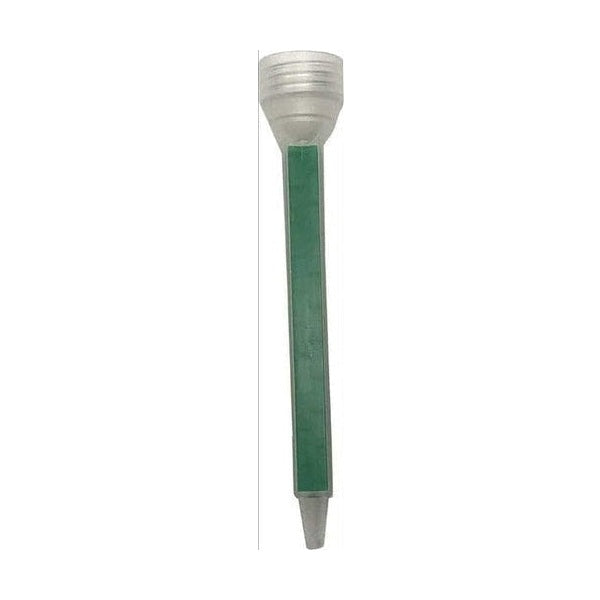

The MixPac MGQ 08-24T is a disposable static mixing nozzle engineered for the efficient and consistent blending of two-component adhesives, sealants, and resins. It features a unique Quadro square design with 24 mixing elements and an integrated nut for secure and easy attachment to C-System two-part cartridges. This nozzle is designed for low-waste dispensing, ensuring thorough mixing for various material types and viscosities.

Popular Applications & Uses

- Dispensing two-component epoxy, polyurethane, silicone, acrylic, and methacrylate adhesives and sealants.- Structural bonding applications.- Seam sealing in automotive and industrial contexts.- Potting and encapsulating resins for electronics.- Fiberglass and composite manufacturing applications using polyester resins.- Aircraft assembly and repair.- Wind turbine assembly and repair.- Home building and general construction.- Concrete repair.- Electronics and communications applications.- Signage and display assembly.- RV interiors.

Industries that Commonly Use It

- Aerospace/Defense- Automotive Service/Repair- Construction/ Building Services- Energy- General Manufacturing- LED/Electronics- Medical Device/ Prosthetics- Sign & Display- Chemical Industry

Special and Unique Features

- Quadro Square design (also known as 'turbo') for maximum mixing efficiency in a compact footprint.- 24 precisely designed mixing elements ensure thorough and consistent blending of two-part materials.- Integrated nut mounting method provides a simple and secure attachment to two-component cartridges.- Low-waste design minimizes residual material in the mixer, reducing overall material consumption.- Disposable nature eliminates the need for cleaning and reduces user contact with potentially hazardous materials.- Compatible with standard C-System (Bell-Style) 2-part epoxy and adhesive cartridges.- Suitable for medium to thicker viscosity materials, typically 10,000 cP or higher.- Features a stepped tip that can be cut to adjust the dispensing amount and flow rate for precise application.- Helps create a consistent mix and prevents air from being introduced into the material, improving bond quality.

Key Properties

- Inner Diameter: 8.7mm (0.343 inches)- Length: 161mm (approximately 7 inches)- Number of Elements: 24- Mix Ratios Supported: 1:1, 2:1, 4:1, and 10:1 (commonly used for 1:1 and 2:1 ratios).- Material: High-grade Polypropylene (PP) for both housing and elements.- Connection Type: Integrated Nut / Bell mouth with moulded thread fitting.- Color: Natural body with green mixing elements.- Retained Material Volume: 8.76 ml.

Surface Compatibility

- Compatible with two-component epoxy adhesives.- Compatible with polyurethane adhesives and sealants.- Compatible with methyl methacrylate (MMA) adhesives.- Compatible with polyester resins.- Compatible with silicone sealants.- Compatible with acrylic adhesives.- Suitable for a wide range of other two-part industrial adhesives and sealants.

Known backups / known substitutes

- MixPac MCQ 08-24T, a very similar Quadro mixing nozzle.- Other static mixing nozzles designed for C-System cartridges and similar mix ratios.- General static mixer nozzles from various manufacturers that fit 200ml, 400ml, 600ml, 1500ml 2-part cartridges with bell-style connections.- Adhesive specialists can provide recommendations for alternatives based on specific application requirements.

Comparison Note

The MixPac MGQ 08-24T stands out due to its patented Quadro square design, which delivers superior mixing performance, a shorter overall length, and a significantly lower pressure drop compared to traditional mixer designs. This innovative geometry promotes more effective fluid folding and stretching, resulting in a more homogenous mix with less material waste. As a product from Medmix (formerly Sulzer Mixpac), it represents premium Swiss quality in dispensing technology.
