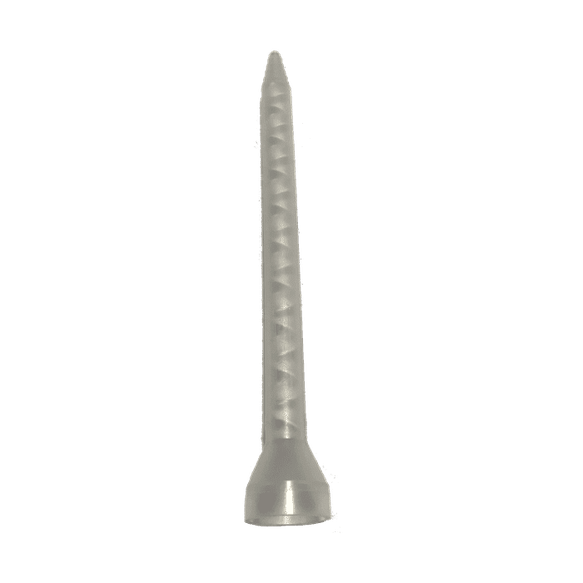

MedMix (Sulzer) MCH 08-32T Mixing Nozzle-Round Helix Bell Style - for 1:1 & 2:1 ratio 200ml, 400ml, 600ml, 1500ml 2-Part cartridges
MedMix (Sulzer) MCH 08-32T Mixing Nozzle-Round Helix Bell Style - for 1:1 & 2:1 ratio 200ml, 400ml, 600ml and 1500ml universal Bell-Style mixing nozzles (10-inch 24-element Mixing Nozzles) for all standard C-System 200ml, 400ml, 600ml and 1500ml 2-Part epoxy and adhesive cartridges.
- 8mm inner diameter helix, round nozzle style
- 11.3-inch nozzle length
- 32-element count 32 mixing cycles for the material)
- Bell Style inlet fitting
- For all Medium and Thicker viscosities, 80,000 cP or higher
- Recommended for Epoxy, Silicone, Urethane, Acrylic, Polyesters
- Not recommended for Urethanes and Polyturethanes
Works perfectly with all major branded adhesives that use the larger (C-System) adhesive cartridges, 200ml, 400ml, 600ml, 1500ml, and related cartridge types. Works with all standard C-System cartridges by Sulzer MixPac, and 2k cartridges by Nordson EFD. Each Pack includes the same number of mixing nozzles plus the related inner/inside mixing assembly
The MedMix (Sulzer) MCH 08-32T Mixing Nozzle-Round Helix Bell Style are used to dispense 2-part adhesives from 200ml, 400ml, 600ml and 1500ml C-System plastic cartridges, and works with both 1:1 and 2:1 ratio formulas.

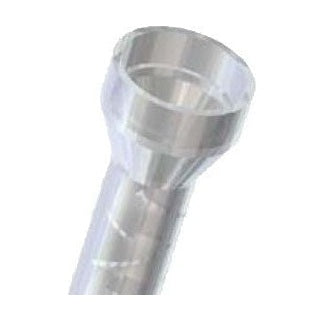

This mixer is connected with a bell outlet and has a stepped tip that can be cut to adjust the amount of adhesive being dispensed.
