Product Name

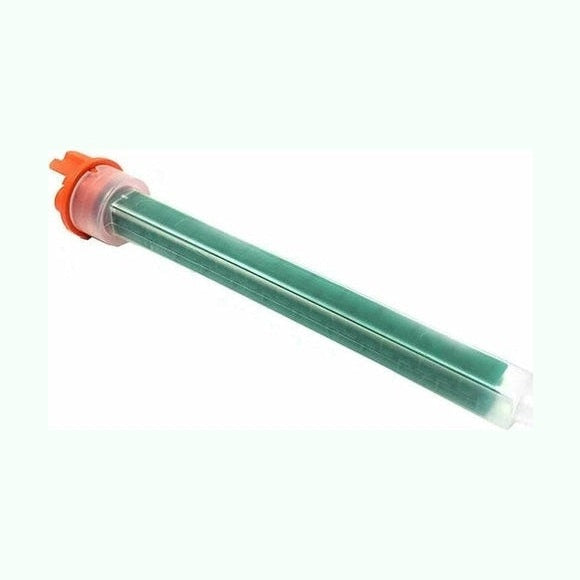

MixPac MFQX 10-24T (116044) F-System Square Quadro Mixing Nozzle for 10:1 & 4:1 ratio larger 2-part cartridges (490ml)
Brief Description
This is a high-performance static mixing nozzle, specifically featuring a Quadro (square) design, engineered for precise and consistent mixing of two-part adhesives and sealants. It is compatible with MixPac F-System cartridges, particularly those with 4:1 and 10:1 mix ratios and larger volumes (200ml, 400ml, 490ml).
Popular Applications & Uses
- Dispensing various two-part materials such as epoxies, polyurethanes, silicones, acrylics, and methacrylates.- Electronic component potting.- Aircraft assembly and aerospace applications.- Automotive manufacturing and repair.- Wind turbine assembly and repair.- Home building and general construction.- Concrete repair.- General industrial bonding and sealing.
Industries that Commonly Use It
- Aerospace/Defense- Automotive Service/Repair- Cabinet & Woodworking- Construction/ Building Services- Electrical Services or Products- Energy- General Manufacturing- Industrial Supply- Medical Device/ Prosthetics- Metal Fabrication- Plastic Fabrication- Petroleum Industry, Products or Services- Distributers & Resellers
Special and Unique Features
- Quadro (Square) Mixing Technology: Delivers superior mixing performance and consistent application, often in a smaller footprint than traditional round/helix mixers, leading to less material waste.- F-System Compatibility: Designed for seamless integration with MixPac F-System 200ml, 400ml, and 490ml industrial cartridges.- Dual Hole Inlet: Prevents cross-contamination and back-curing of materials prior to dispensing, extending shelf life and reducing clogging.- Stepped Outlet Tip: Ensures controlled flow and accurate, precise dispensing of materials.- Disposable Design: Made of high-grade polypropylene for convenient single-use and easy cleanup.
Key Properties
- Mixer Type: Static, Quadro (Square)- Mix Ratios Supported: 4:1 and 10:1- Compatible Cartridge Sizes: 200ml, 400ml, 490ml F-System cartridges- Number of Elements: 24- Inner Diameter: Approximately 10.7 mm (0.421 inches)- Length: Approximately 181 mm (7.13 inches)- Material: Polypropylene (PP) for housing and elements- Element Color: Green- Housing Color: Natural Outer, Orange Cap- Waste Volume: 14.92 ml
Surface Compatibility
The nozzle itself does not directly contact the final surface. Its compatibility is with the two-part adhesive or sealant it dispenses. These adhesives are typically formulated for bonding a wide range of substrates including metals, plastics, composites, wood, and concrete.
Known backups / known substitutes
- Other MixPac MFQX series nozzles with different element counts or inner diameters.- MixPac MFHX series (Helix Round mixer style for F-System, also 4:1/10:1 ratios).- MixPac MFH series (Helix Round mixer style for F-System, typically 1:1/2:1 ratios).- MixPac MFQ series (Quadro mixer, but often for 1:1/2:1 ratios).- MixPac MBQX series (Square Quad for B-System & S-System 10:1 & 4:1 ratio).- Generic static mixing nozzles compatible with F-System cartridges and similar mix ratios, though brand-specific performance may vary.
Comparison Note
The MixPac MFQX 10-24T stands out due to its Quadro (square) mixing technology, which is often preferred for optimal mixing efficiency in a compact design, leading to less material waste compared to some traditional helix/round mixers. It is specifically designed for the F-System, ensuring a secure, pollution-free connection and reliable dispensing of high-viscosity, larger volume (490ml) 4:1 and 10:1 ratio two-part adhesives.
