MixPac (Sulzer) MFHX 10-18T F-System Mixing Nozzle for 10:1 & 4:1 ratio larger 2-part cartridges (200ml, 225ml, 250ml, 400ml, 490ml)
Regular price
$ 1.89 USD
994 units available
Need Datasheets?
Click Here to visit our Datasheet Server (TDS, SDS, Fact Sheets, Selector Guides, etc)The Mixpac MFHX Series static mixers are the Helix Round mixer style designed to be used with the F Series cartridges, both 10:1 and 4:1 ratios. The MFH helix mixer gives excellent mixing in a traditional round element configuration/footprint. If you're concerned about getting a good quality mix, you cannot go wrong with helix mixing nozzles.

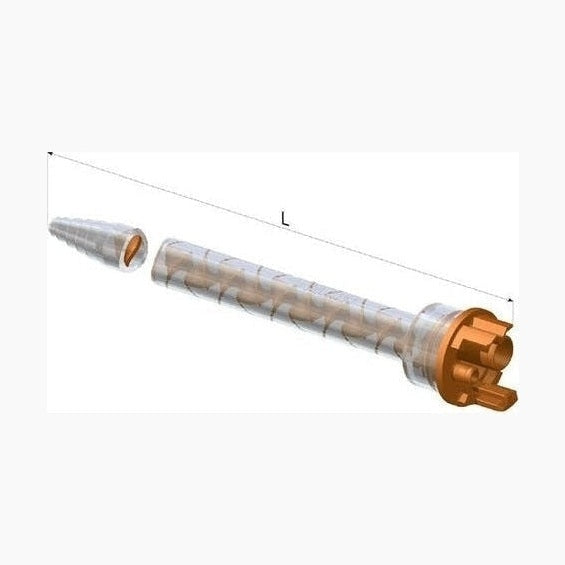

See below for Nozzle specs and sizes.
The real value of the MixPac MFH nozzle is the way it connects to the MixPacF System cartridges through two separate outlets guaranteeing there is no product pollution prior to dispensing. This reduces clogging and extends the adhesive's shelf/storage life.
For Use with These Adhesives:
- Epoxy
- Acrylics/Acrylates/MMA's
- Silicones
- Urethanes
- Other High Viscosity Adhesives
For Use with these cartridges:
Product Specs:
- Mixing Elements: 18
- Round/Helix design
- Tip Type: Stepped
- Inner Diameter: 8mm
- Length: 187mm
- Works With: 10:1 or 4:1 Adhesives
- Use With: F-System Cartridges

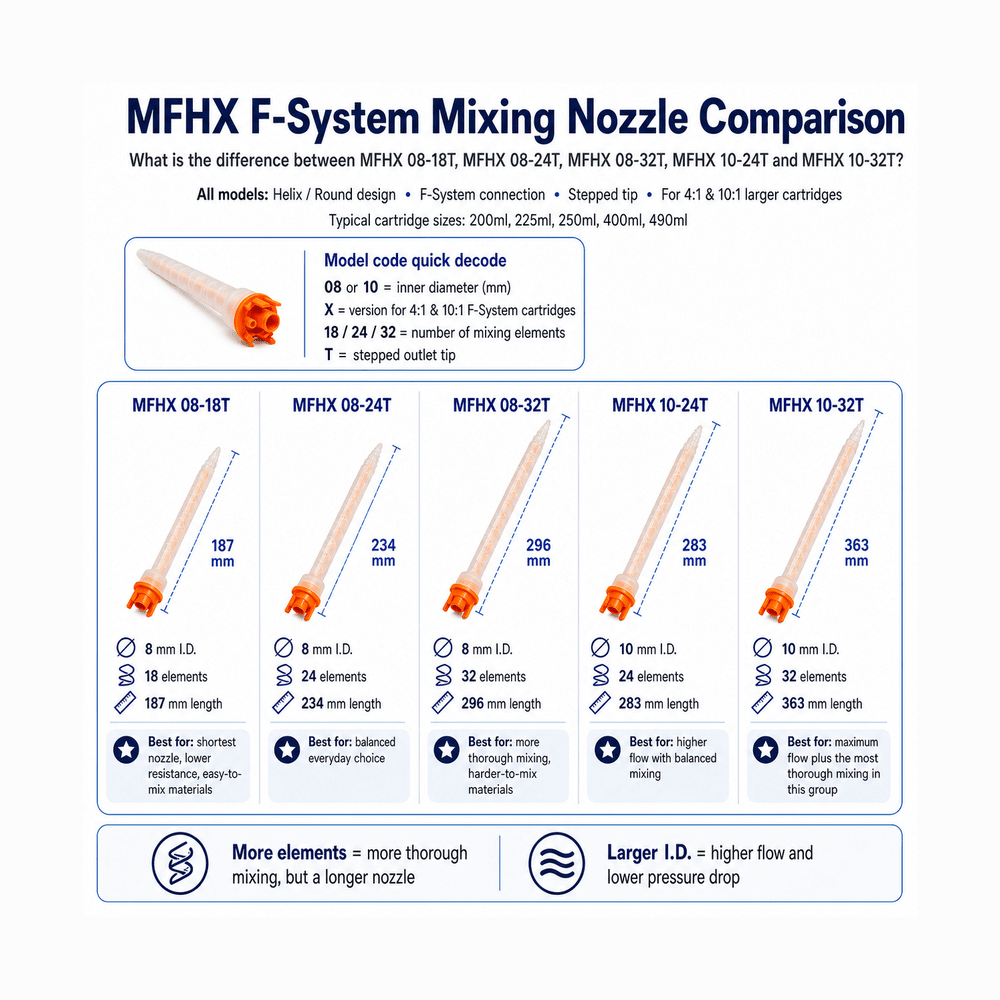

| ID | Article | Number of Elements | Inner Diameter Ø mm/inch | Waste Volume (mL) | Bulk Pack Size |
| 102473 | MFHX 06-18T | 18 | 6.0/0.236 | 4.16 | 1700 |
| 102474 | MFHX 06-24T | 24 | 6.0/0.236 | 5.2 | 1400 |
| 113275 | MFHX 06-32T | 32 | 6.0/0.236 | 6.56 | 1200 |
| 102475 | MFHX 08-18T | 18 | 8.0/0.315 | 7.28 | 1400 |
| 102476 | MFHX 08-24T | 24 | 8.0/0.315 | 9.14 | 1200 |
| 112720 | MFHX 08-32T | 32 | 8.0/0.315 | 11.55 | 900 |
| 102477 | MFHX 10-18T | 18 | 10.0/0.394 | 12.96 | 1000 |
| 102478 | MFHX 10-24T | 24 | 10.0/0.394 | 16.7 | 900 |
| 113250 | MFHX 10-32T | 32 | 10.0/0.394 | 21.22 | 500 |
| 151605 | MFHX 13-18T | 18 | 13.0/0.512 | 20.73 | 800 |
| 151606 | MFHX 13-24T | 24 | 13.0/0.512 | 26.48 | 600 |
