Product Name
MixPac MFHX 08-32T F-System Mixing Nozzle for 10:1 & 4:1 ratio larger 2-part cartridges (200ml, 225ml, 250ml, 400ml, 490ml)
Brief Description
The MixPac MFHX 08-32T F-System Mixing Nozzle is a high-performance, disposable static mixer designed for the efficient and homogeneous blending of two-part adhesives and sealants. It is specifically engineered for use with MixPac F-System cartridges, accommodating 4:1 and 10:1 mix ratios in larger cartridge sizes, including 200ml, 225ml, 250ml, 400ml, and 490ml. Featuring a helix mixer type and a stepped outlet tip, this nozzle ensures precise dispensing and optimal material performance.
Popular Applications & Uses
- Dispensing two-part epoxy, polyurethane, silicone, acrylic, and methacrylate adhesives and sealants.- Bonding and sealing in various assembly operations.- Potting and encapsulating electronic components.- Structural bonding in aircraft and automotive assembly.- Repair and assembly in wind turbine manufacturing.- General construction and concrete repair applications.
Industries that Commonly Use It
- Aerospace/Defense (for aircraft assembly and repair)- Automotive Service/Repair (for vehicle assembly and bonding)- Construction/ Building Services (for home building, concrete repair, and general construction)- Electrical Services or Products (for electronics and communications assembly)- Energy (for wind turbine assembly and maintenance)- General Manufacturing (for various assembly, bonding, and sealing processes)- Metal Fabrication (for bonding and sealing metal components)- Plastic Fabrication (for bonding and sealing plastic components)- Distributers & Resellers (as a consumable product sold to various industries)- Engineering Services (for adhesive application design and implementation)
Special and Unique Features
- **F-System Compatibility:** Seamlessly attaches to MixPac F-System cartridges, ensuring a secure and leak-proof connection.- **Efficient Helix Design:** Incorporates a helix mixer type with 32 elements for superior mixing performance, resulting in a homogeneous blend.- **Stepped Outlet Tip:** Allows for controlled dispensing and can be cut back to adjust bead size and flow rate.- **Dual Hole Inlet:** Prevents cross-contamination of the two components prior to mixing, extending adhesive shelf life.- **Extended Reach:** With a length of 296mm (11.654 inches), it provides access to hard-to-reach application areas.- **Disposable:** Designed for single-use to maintain cleanliness and prevent curing issues.- **Industrial Grade & Silicone-Free:** Constructed from high-grade polypropylene, suitable for industrial environments and sensitive applications.
Key Properties
- **Mixer Type:** Helix- **Connection Type:** F-Series (F-System)- **Compatible Mix Ratios:** 4:1 and 10:1- **Compatible Cartridge Sizes:** 200ml, 225ml, 250ml, 400ml, 490ml- **Number of Elements:** 32- **Inner Diameter:** 8.0 mm (0.315 in)- **Length:** 296 mm (11.654 in)- **Waste Volume:** Approximately 11.55 ml- **Housing Material:** Polypropylene (Natural outer, Orange elements)- **Tip Style:** Stepped Tip
Surface Compatibility
The MixPac MFHX 08-32T nozzle dispenses a wide range of two-part adhesives and sealants, which are compatible with various surfaces including, but not limited to:- Metals- Plastics- Composites- Concrete- Wood- Ceramics- GlassThe specific surface compatibility depends on the adhesive or sealant being dispensed through the nozzle.
Known backups / known substitutes

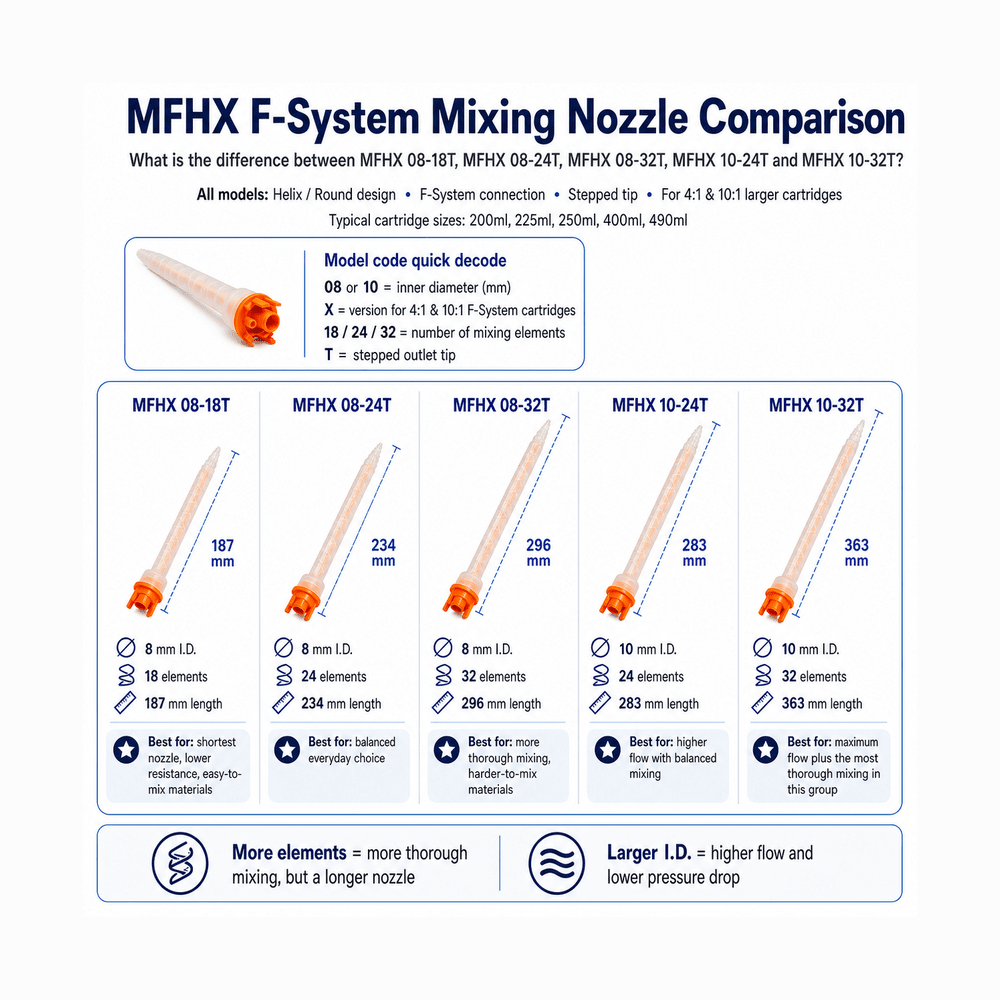

- **Other MixPac F-System Nozzles:** Other models within the MixPac MFHX series (e.g., MFHX 06-32T, MFHX 10-18T) or MFH series (e.g., MFH 08-32T for different ratios) that fit F-System cartridges.- **Competitor Static Mixing Nozzles:** Similar static mixer nozzles from other brands designed for two-part cartridges, such as Infinity Bond or other manufacturers offering F-System compatible or general static mixers.- **Different Element Counts/Diameters:** Static mixers with varying numbers of elements or inner diameters to adjust mixing efficiency and flow rates for specific applications.
Comparison Note
The MixPac MFHX 08-32T stands out as a reliable static mixing nozzle, eliminating the need for manual mixing and reducing potential errors and user contact with hazardous materials. Its helix design provides excellent mixing for a wide range of two-part adhesives, particularly those requiring 4:1 or 10:1 ratios. While other designs like the Quadro mixer (square elements) are noted for superior efficiency in some cases, the helix design remains a traditional and effective choice. The F-System connection ensures a secure fit and prevents pre-dispense contamination, a critical advantage for maintaining material integrity and extending shelf life. Its stepped tip offers versatility in controlling bead size, making it adaptable for various application needs.
