Product Name
MixPac MFHX 08-24T F-System Mixing Nozzle for 10:1 & 4:1 ratio larger 2-part cartridges (200ml, 225ml, 250ml, 400ml, 490ml)
Brief Description
The MixPac MFHX 08-24T is a disposable, helical static mixing nozzle designed for efficient and thorough mixing of two-part adhesives and sealants. It is specifically engineered for use with Sulzer Mixpac F-System cartridges ranging from 200ml to 490ml, accommodating 4:1 and 10:1 mix ratios. Constructed from high-grade polypropylene, this industrial-grade, silicone-free nozzle ensures a clean, leak-free connection and precise dispensing for a variety of industrial applications.
Popular Applications & Uses
- Dispensing two-part epoxy, polyurethane, silicone, acrylic, and methacrylate adhesives and sealants.- General bonding applications across various industries.- Assembly and repair in electronics and communications.- Aircraft and aerospace assembly and repair.- Automotive manufacturing and repair.- Wind turbine assembly and maintenance.- Home building, construction, and concrete repair.- Signage and display assembly.- RV interiors and specialty vehicle manufacturing.- Potting and encapsulation processes.- Casting and molding applications.
Industries that Commonly Use It
- Aerospace/Defense- Automotive Service/Repair- Chemical Industry (for dispensing various chemical adhesives)- Construction/ Building Services- Electrical Services or Products (electronics, communications)- Energy (wind turbine assembly and repair)- General Manufacturing- Mold Making/ Casting- Sign & Display- Transportation/ Specialty Vehicle- Distributers & Resellers (as a product sold through industrial suppliers)
Special and Unique Features
- **Efficient Helix Design:** Features a helix mixer type with 24 elements, providing thorough and consistent mixing of two-part materials.- **F-System Compatibility:** Designed with a simple interlock mounting method for seamless and secure connection to Sulzer Mixpac F-System cartridges (200ml, 225ml, 250ml, 400ml, 490ml).- **Versatile Ratio Support:** Compatible with both 4:1 and 10:1 mix ratio two-component materials.- **Stepped Outlet Tip:** Allows for precise and controlled dispensing, and can be cut back to increase orifice size and flow rates, or used with luer adapters.- **Industrial Grade & Silicone-Free:** Ensures high quality and safety for professional industrial applications, preventing contamination.- **Disposable:** Designed for single-use to maintain material purity and simplify cleanup.- **Prevents Pre-Dispensing Pollution:** Connects to cartridges via two separate outlets, ensuring components do not mix prematurely, reducing clogging and extending adhesive shelf life.
Key Properties
- **Mixer Type:** Helix static mixer- **Number of Elements:** 24- **Inner Diameter:** 8.0 mm (0.315 inches)- **Length:** 234 mm (9.21 inches)- **Compatible Mix Ratios:** 4:1 and 10:1- **Compatible Cartridge Systems:** MIXPAC™ F-System- **Compatible Cartridge Sizes:** 200ml, 225ml, 250ml, 400ml, 490ml- **Material:** High-grade Polypropylene (Natural outer, Orange inner elements)- **Tip Style:** Stepped Tip- **Waste Volume:** 9.14 ml- **Industrial Grade:** Yes- **Silicone Free:** Yes
Surface Compatibility
This mixing nozzle itself does not directly contact the bonding surface; rather, it dispenses mixed adhesives that are compatible with a wide range of substrates. The compatibility depends on the specific two-part adhesive being dispensed, which commonly includes materials like:- Metals- Plastics- Composites- Concrete- Wood- Glass
Known backups / known substitutes

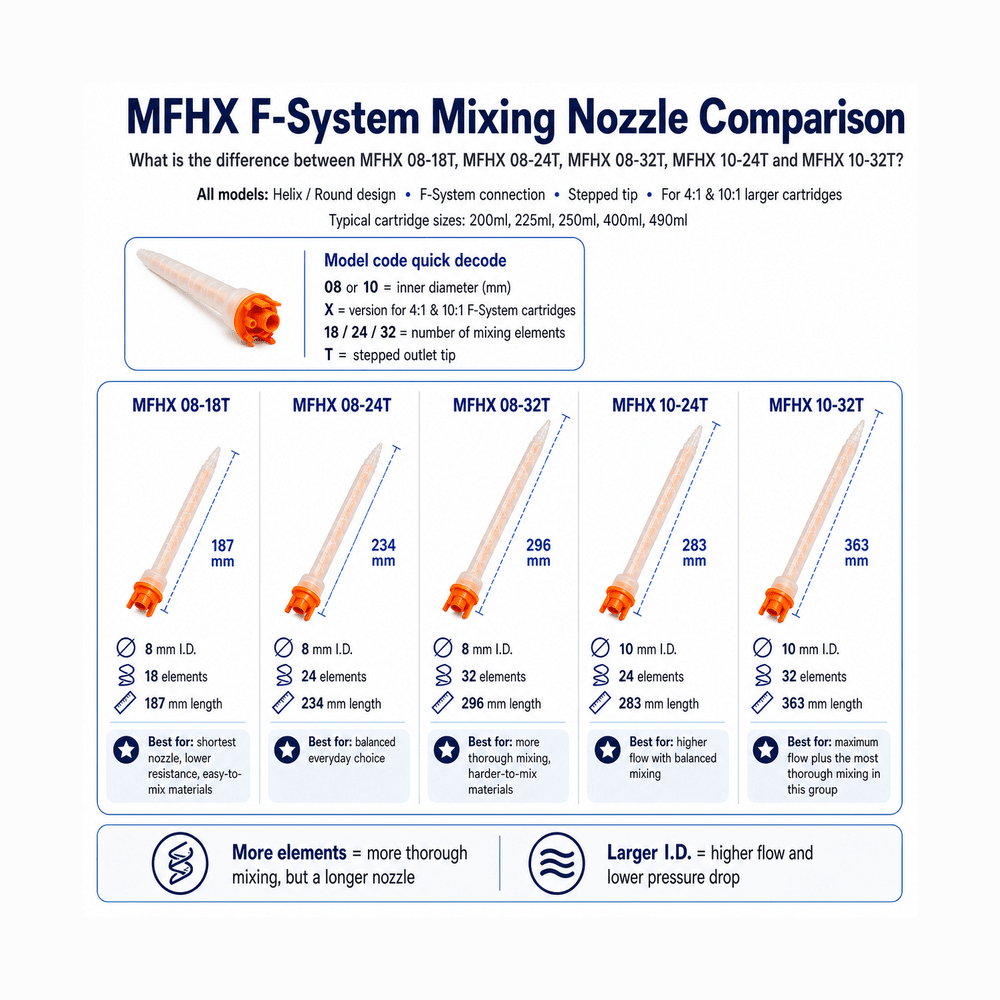

- **Other MixPac MFHX Series Nozzles:** Other MFHX nozzles with varying element counts (e.g., MFHX 08-18T, MFHX 08-32T) could serve as backups if slight variations in mixing efficiency or length are acceptable, provided they maintain F-System compatibility and correct mix ratios.- **MixPac MFQX Series Nozzles:** These are Quadro mixers designed for F-System cartridges with 4:1 and 10:1 ratios, offering a different mixing geometry that might be preferred for certain applications.- **Other Sulzer Mixpac F-System Compatible Mixers:** Other static mixers from Sulzer Mixpac designed for the F-System, provided they match the required mix ratios (4:1 or 10:1) and cartridge sizes.
Comparison Note
The MixPac MFHX 08-24T stands out for its reliable helical mixing technology within the F-System, specifically catering to 4:1 and 10:1 ratio adhesives. While other Sulzer Mixpac series like the MFH (for 1:1/2:1 ratios) or MFQ (Quadro mixer for 1:1/2:1 ratios) exist, the MFHX 08-24T is optimized for higher ratio two-part materials, ensuring consistent performance for demanding industrial applications where precise mixing of these specific ratios is critical. Its stepped tip and industrial-grade, silicone-free construction further enhance its utility and reliability compared to generic mixing nozzles.
