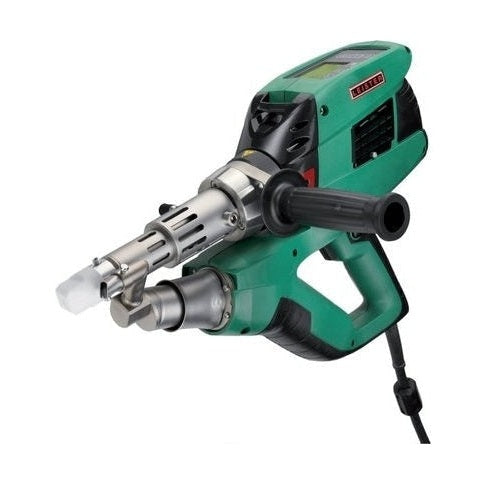

With the compact WELDPLAST S1 extrusion welder, you can achieve perfect seam quality with plate thicknesses of 4 to 12 mm and a maximum output power of 1.8 lbs. per hour (PVC: up to 2.5 lbs. per hr.) The double-sided, twist-free wire intake can work with 3 to 4 mm welding rod. Integrated LED lighting, plus the innovative operating panel, are the perfect ways to monitor the welding process for various materials (such as PE, PP, PVC, PA, PVDF or ECTFE) – at all times. The ergonomic design, which offers several grip positions and holding options, allows you to work in comfort in areas that are difficult to access.
- Functional, ergonomic design with comfort grip areas
- Output power of 1.8 lbs./hr (HDPE)
- Multifunction display with predefined welding parameters
- BL blower, adjustable air volume
|
Attribute |
Unit |
Value |
|
Voltage |
V~ |
120 |
|
Power |
W |
1800 |
|
Material |
|
HD-PE / LD-PE / PP / PVC-U / PVC-C / PVDF / ECTFE / PA |
|
Max. air outlet temperature |
°F |
680 |
|
Output |
lbs / hr |
0.44 – 1.76 (PVC < 2.53) |
|
Size (L × B × H) |
mm |
435 x 91 x 264 |
|
Size (L × W × H) |
inch |
17.1 × 3.5 × 10.4 |
|
Integrated welding profiles |
|
HD-PE, PP, PVC-U,PVC-C, PVDF |
|
Weight |
kg |
4.7 |
|
Conformity mark |
|
