Leister (164.561 & 164.560) Uniplan 500 Automatic Welding Machine for Tarps, Tents, Liners, and Banners
Need Datasheets? Need Accessories?
• Click Here to visit our Datasheet Server (TDS, SDS, Fact Sheets, Selector Guides, etc)• Check out Popular Accessories below by scrolling down just a bit on this page.
Regular price
$ 6,614.00 USD
3 units available

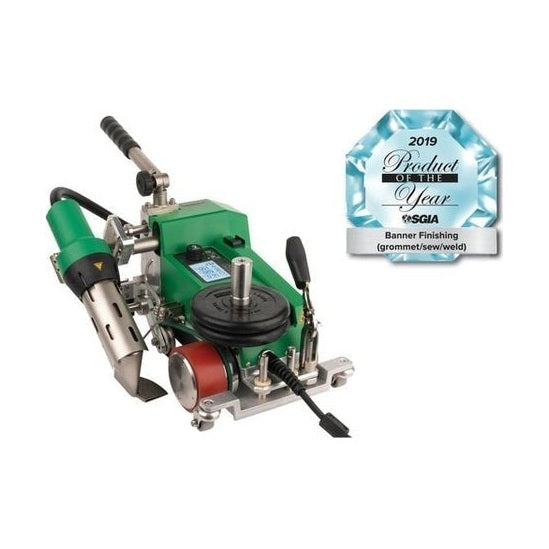

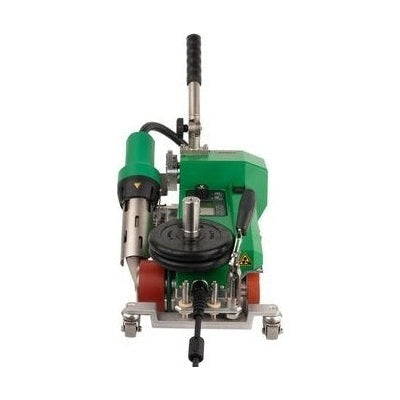

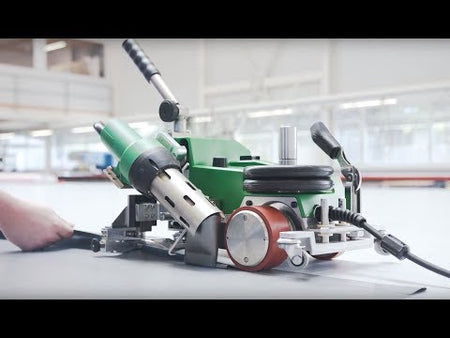

Leister UNIPLAN 500 automatic welding machines are the ideal welding tool for your jobs, whether you are welding truck tarpaulins, tents, or banners. It's integrated lifting of the tarpaulins and automatic swiveling-in of the nozzle make the plastic welding work easier for you and increases reliability. Thanks to the welding machines movable swivel castor wheel, it is easy to get around obstacles such as grommets, hooks, or other accessories. Automatic, practical, safe – UNIPLAN 300 / UNIPLAN 500.
losed-loop temperature control ensures process reliability regardless of environmental changes or voltage fluctuations
-
Available with 30, or 40mm wide nozzle
-
Low-maintenance, brushless motor
- Large display for easy setting of welding parameters
- Material-specific parameters can be saved to ensure repeatable processes on future welding projects

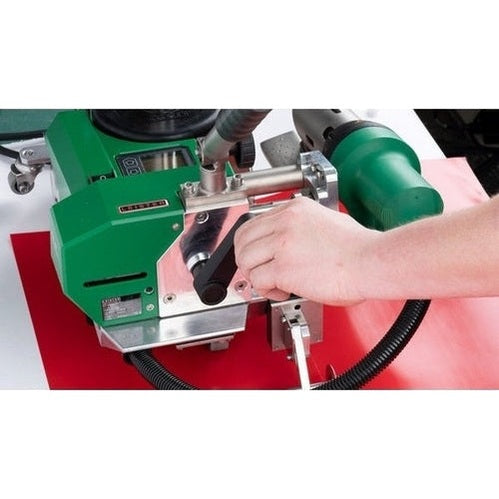

- Intuitive swivel-in of nozzle and automatic drive

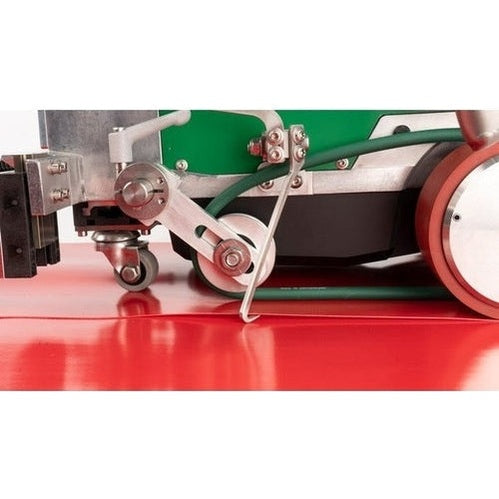

- Integrated membrane lifter for flawless weld starts
- Adjustable start-up delay adapts to light and heavy materials
- Movable castor wheel adjusts to avoid obstacles such as grommets and hooks
- Easy, one-step change from overlap welding to hem or pipe welding with included accessory
- Easily adjust contact pressure by adding or removing included weights
- Included in delivery: UNIPLAN 500, overlap guide, hem guide, material lifting device, 2 weights, weight holder base, weight holder extension, brass brush, short handle, nozzle adjustment gauge, tool case
| Attribute | Unit | Value |
|---|---|---|
| Voltage | V~ | 120 |
| Frequency | Hz | 50/60 |
| Power | W | 1800 |
| Nozzle width | inch | 1.2 |
| Drive Speed | feet/min | 3.3 - 52.5 |
| Size (L × W × H) | inch | 19.7 x 12.2 x 11.8 |
| Weight (without cable) | lbs | 35 |
| Blower speed | rpm | 18000 |
| Blower motor | brushless (maintenance-free) | |
| Noise emission level | Lpa (dB) | 70 (K = 3 dB) |
| Size (L × B × H) | mm | 500 x 310 x 300 |
| Conformity mark |  |
|
| Protection class I |  |
