Hardman Epoweld 8173 - Extra-Fast setting Epoxy (aka Double Bubble Red 04001)
Need Datasheets?
Click Here to visit our Datasheet Server (TDS, SDS, Fact Sheets, Selector Guides, etc)-

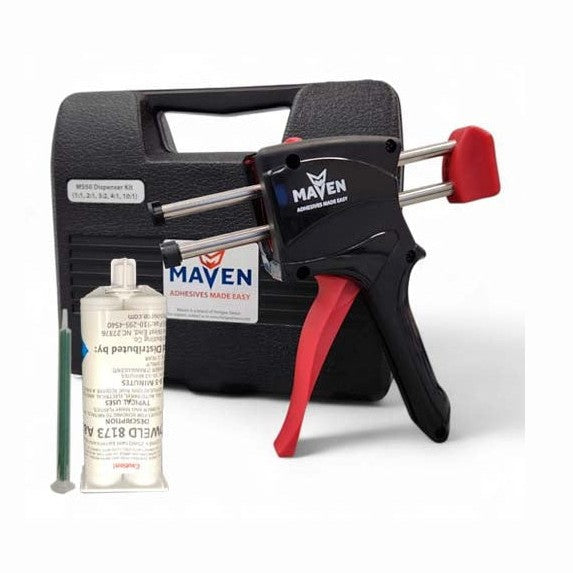

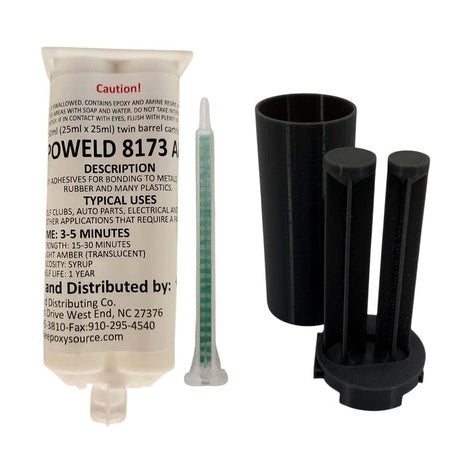

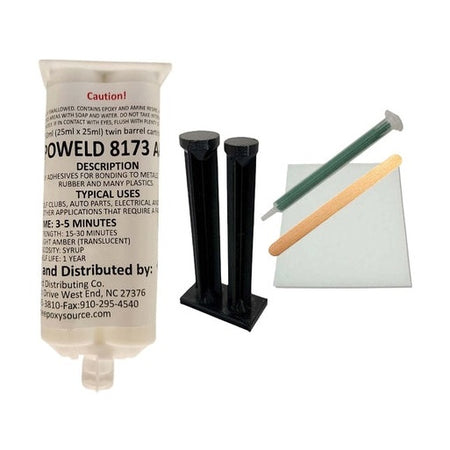

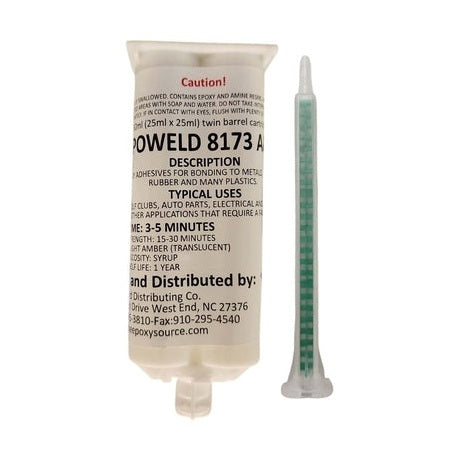

50ml cartridges (packaged as Epoweld 8173, same formula as #04001 Packets)
- Includes One Mixing Nozzle for each 50ml Cartridge
-
2-Bottle Kits (8oz, 16oz, 32oz total volume kits) packaged as Epoweld 8173, same formula as #04001 Packets) 1:1 ratio, so each bottle is 1/2 of the total kit volume
- Includes 2 epoxy bottles Parts A & B, 5 Mixing Nozzles and 5 mixing cups.
Also available in Single-Use Packets under the Epoweld 8173 forumla name
- Single Samples, 5-Packs, 10-Packs, 25-Packs, 50-Packs, 100-Packs
- Includes One Mixer Stick for each Epoxy Packet purchased
- Extra-Fast Setting 2-part epoxy: 3-5 minute working time
- Extreme Strength: 2,400 - 3,200 psi
- Dries clear and does not shrink
- More clean, less messy, and less wasteful than epoxy syringes from other companies
- Each pack has 3.5 grams of epoxy, perfect for single, small jobs
- 2-Year Shelf Life, Maximize use, Minimize waste
- Same epoxy as the popular Double Bubble Red Extra-Fast Setting Epoxy Packets #04001
Hardman Epoweld 8173 Epoxy provides a strong, permanent, fast and gap-filling bond that's great for multiple surface applications. This all purpose formula bonds steel, wood, aluminum, ceramic, tile and more. It is impact resistant, and handles bumps, bangs and drops very well. Double Bubble Red Epoxy is water and solvent resistant and non-toxic once cured. The easy-to-use, reusable syringe dispenses equal amounts of resin and hardener for easy, even dispensing.
Typical uses: Repairing of tools, auto parts, electrical and electronic components, furniture and other applications that require a fast setting adhesive.
Setting / Working Time: 3-5 minutes
Time to Handling Strength: 45-60 minutes
Uncured (Wet) Color: Amber Dries: Clear Viscosity (Uncured Thickness): Like Honey
| Specification Name | Value |
| Type | Extra-Fast Setting Epoxy |
| Color | Clear / Possibly Very Light Amber |
| Each Single-Pack Size | 3.2mL Total per Double-Pack (1.6mL per side, parts A & B) |
| Work-Time (minutes) | 3-5 |
| Hardness | 80 (Shore D) |
| Overlap Shear Strength (psi) | 3000 |
| Peel Strength | 1.8 piw |
| CFIA Approved | No |
| ISO-10993 | No |
| Other Information | Value |
| GSA/NSN Number | |
| Country of Origin | UNITED STATES |
| Estimated Usable Shelf Life | More than 2 years (730 days, or 24 months) |
