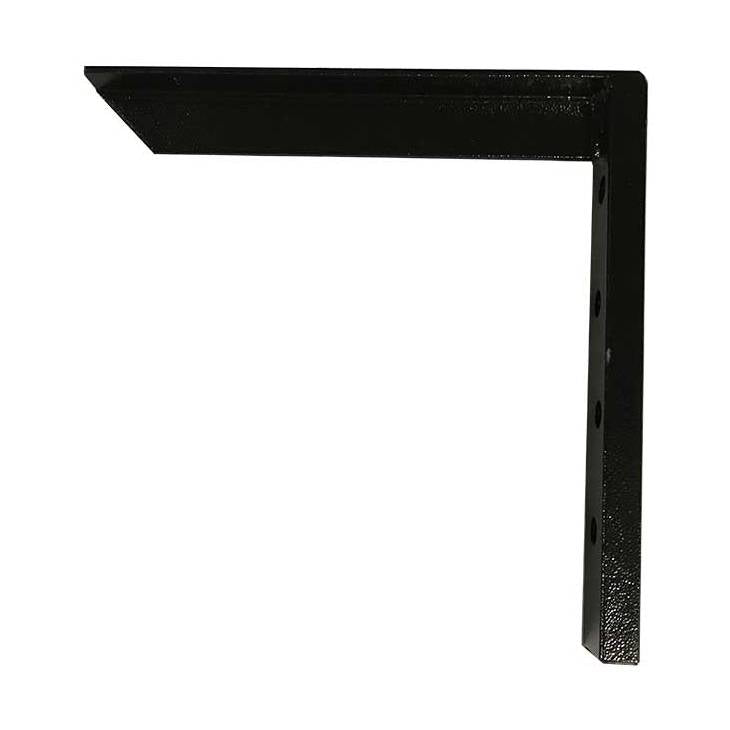

CounterBalance Hybrid Bracket in black

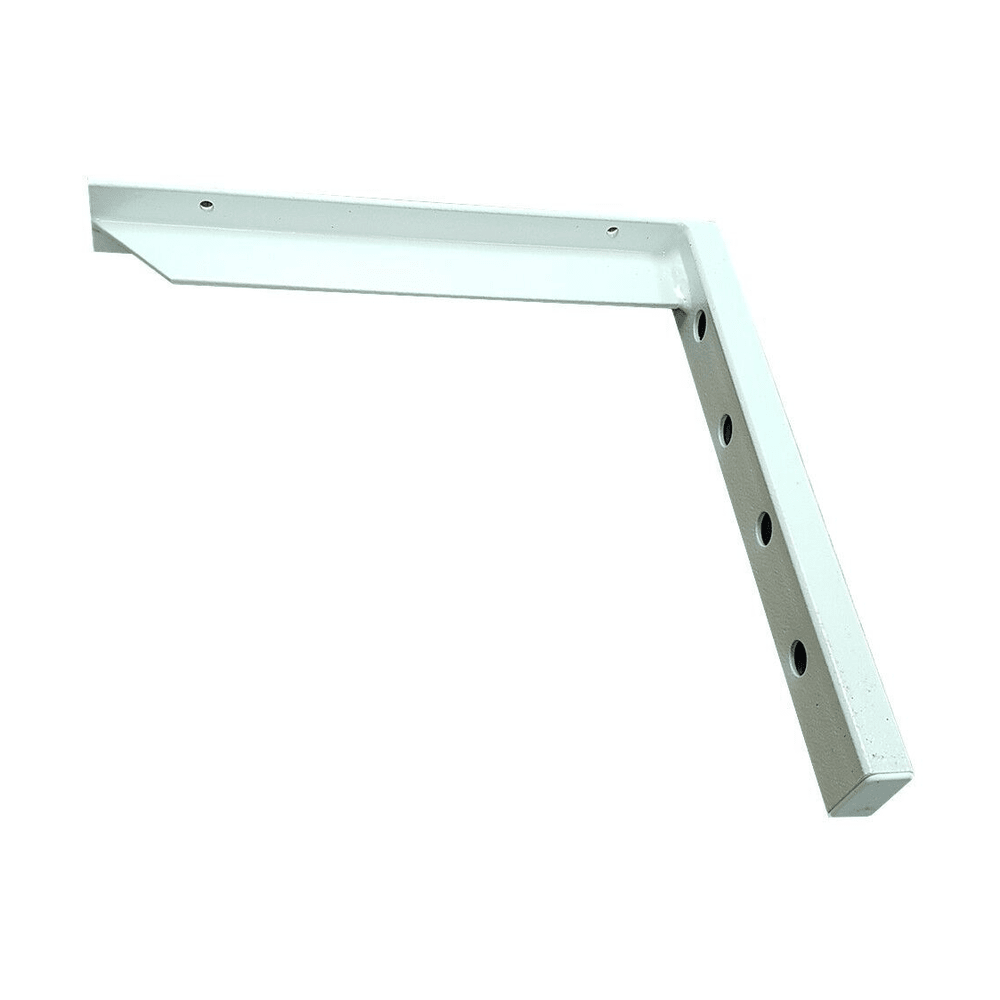

CounterBalance Hybrid Bracket in white
CounterBalance Hybrid Bracket for concealed or surface-mounted countertop support
CounterBalance Hybrid Bracket in black
CounterBalance Hybrid Bracket in white

CounterBalance® Hybrid Bracket – Concealed & Surface-Mount Countertop Support

Need Datasheets? Need Accessories?

• Click Here to visit our Datasheet Server (TDS, SDS, Fact Sheets, Selector Guides, etc)
• Check out Popular Accessories below by scrolling down just a bit on this page.
Width
Length
Color
SKU: CB-HYBRID-BRACKET-9BL-1
$ 25.44 USD
Currently Out of Stock Call for ETA
Currently Out of Stock Place Order and Call for ETA

SKU

  • Type Countertop Brackets
  • Vendor CounterBalance
  • SKU CB-HYBRID-BRACKET-9BL-1
Description Popular Uses, Popular Applications Need Datasheets?

The CounterBalance® Hybrid Bracket provides strong, low-profile support for floating countertops, bar tops, islands, and vanities. Its hybrid design can be installed behind drywall for a fully concealed appearance or surface-mounted over finished drywall into load-bearing wall studs.

Key Features

  • Supports floating countertop overhangs without visible corbels or knee braces
  • Installs behind drywall or over finished drywall into structural wall studs
  • Made from 1/8-inch hot-rolled steel with a durable powder-coated finish
  • Available in 1-inch and 1.5-inch widths, five lengths, and black or white
  • Countertop may extend up to 6 inches beyond the bracket length
  • Finishing caps included
  • Recommended support spacing: every 16 to 20 inches

Available Options

  • Widths: 1 inch and 1.5 inches
  • Lengths: 9, 12, 18, 21, and 24 inches
  • Colors: Black and White

Popular Applications

  • Kitchen islands and breakfast bars
  • Floating countertops and bar tops
  • Bathroom vanities
  • Granite, quartz, and solid-surface countertop installations
  • Residential and commercial cabinetry or millwork

Published Load-to-Deformation Ratings

Bracket Size Load Rating per Pair Recommended Overhang
1.5 × 12 in. 2,200 lb. 12–18 in.
1.5 × 18 in. 1,300 lb. 18–24 in.
1.5 × 24 in. 1,050 lb. 24–30 in.
1 × 12 in. 1,000 lb. 12–18 in.
1 × 18 in. 800 lb. 18–24 in.
1 × 24 in. 525 lb. 24–30 in.

Installation note: Fasten each bracket to suitable structural framing with hardware appropriate for the substrate and expected load. Published ratings are measured per pair and vary by bracket size and installation conditions. Always follow applicable building requirements and verify the completed assembly before use.

Specifications

  • Brand: CounterBalance
  • Material: 1/8-inch hot-rolled steel
  • Finish: Powder-coated black or white
  • Country of origin: China
