MixPac Greenline 50ml Empty 1:1 Ratio 2-Part Cartridges with sealing cap & pistons Green

Atlas Professional

SKU: MIXPAC_GRN_5011_AB 050-01-13-33_005PK

  • $ 5.41
    (We can use your FedEx/UPS acct: Type-in the needed Acct # & Service Level)
    Will not ship until


    MixPac Greenline 50ml Empty 1:1 Ratio 2-Part Cartridges with sealing cap & pistons Green

    Reduce your waste impact without compromising performance with the first 100% PCR (Post-Consumer Recycled) PP cartridge. The Sulzer Mixpac greenLine 50 ml B-System is a 100% post-consumer recycled (PCR) polypropylene cartridge. This system is a process-safe, precise system designed to support you in meeting your sustainable business goals. ideal for a wide range of industrial adhesive and sealant applications with epoxies and polyurethane systems.

    2-Part (dual-component) 1:1 ratio 50ml empty Adhesive Cartridges with included Reseal-able Cap and Sealing Pistons.  Used for filling and dispensing 2-part adhesives, epoxies, silicones, urethanes, and other 2-part fluids and compounds.  Sulzer MixPac Cartridge Part Number:  AA 050-01-10-33  ,  (#154840)

    Available in 3 kit packages, plus Accessories:

    • Empty Cartridges and related Pistons
    • Starter Kit with Small Hand Plungers
    • Starter Kit with Dispenser
    • Useful Additional Accessories

    Each kit includes different cartridge-count options… either 5, 10, 25, 50, or 100 cartridges with the necessary cap and sealing pistons to close and seal the empty cartridges.

    Recycled Cartridge Sustainably Improves Your Value Chain

    • No cross-contamination due to proprietary interface and locking system
    • Environmentally friendly thanks to maximum yield and minimum dead volume
    • High leak-proofness and long-term stability
    • Mixing and performance quality of a standard cartridge
    • Safe, quick, and easy assembly of the mixer
    • Minimal waste volume

    B-System Quality Perfectly Combined With Sustainability

    • Modular concept with a complete solution from a single source
    • For a controlled, reproducible adhesive process
    • Increased process safety and control
    • Enables a precise metering, easy-to-use, and fatigue-free operation
    • High standards regarding storage stability and transport safety
    • Coded interface and separate outlets

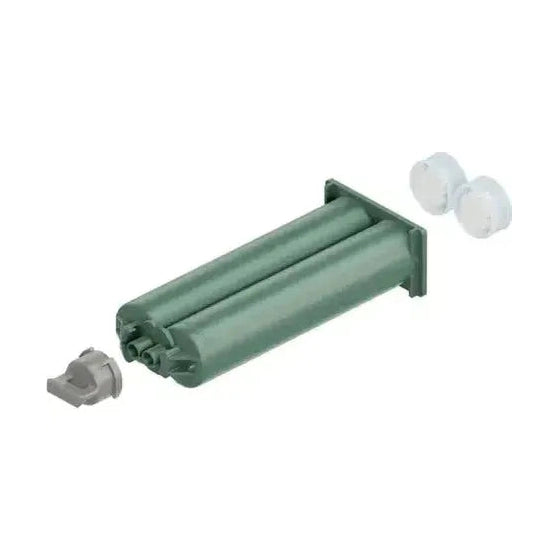

    About the Cartridges:

    These cartridges are for storing and applying adhesives that use a 1:1 mix ratio, where precise metering and mixing is needed. These cartridges include matching pistons and a re-sealable tip (or cap). They’re ready for filling with material, storing and dispensing. These 2-Part cartridges are industrial grade and silicone free.  The cartridge design/fit using the "A-System", also known as "Square-Back". They also include an easy-to-reclose cap.

    The 2-Part design keeps the two adhesive parts separate, until a mixing nozzle is attached, where the two parts are pushed or extruded into the mixing nozzle and bonding or curing begins.

    And a key feature of this cartridge is it's automatic air-escape piston system, which allows air to escape as pistons are inserted, and automatically seals-off when the piston contacts the resin inside cartridge.  But a special hand insertion tool is needed to insert the air-free pistons, see the accessories above.

    About the Starter Kits:

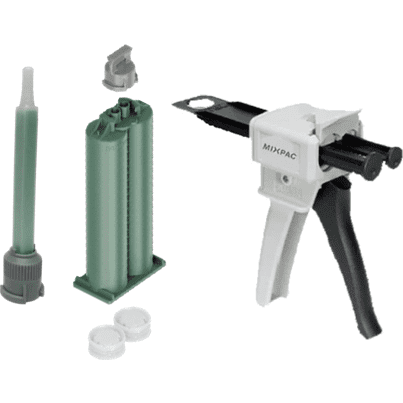

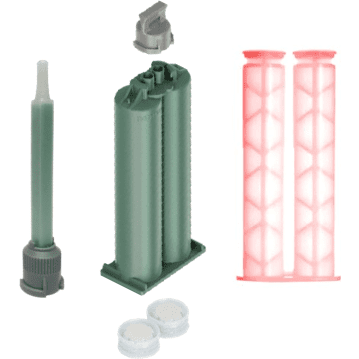

    Each Starter Kit includes either 5, 10, 25, 50, or 100 cartridges, related sealing pistons and cartridge caps, mixing nozzles (one nozzle for each cartridge in your kit), and either one MixPac DMA50 50ml dispenser or small hand plungers depending on which kit you choose.

    We recommend checking out our Starter Kits to get set up and running.  Or if you prefer getting the dispenser separately, check out the MixPac DMA50 50ml Dispensers, which will enable you to dispense the adhesives out of these cartridge kits.

    Total Cartridge Length (bottom to cap tip

    4 5/8 inches

    Barrel length

    3 13/16 inches

    Total cartridge width

    1 7/8 inches

    Barrel Inner Diameter

    0.75 inches

    Mixer Style

    Bayonet 50ml, Helix or Quadro/Square

    Total Cartridge Volume (both barrels combined)

    50ml , or 1.7oz








    ×
