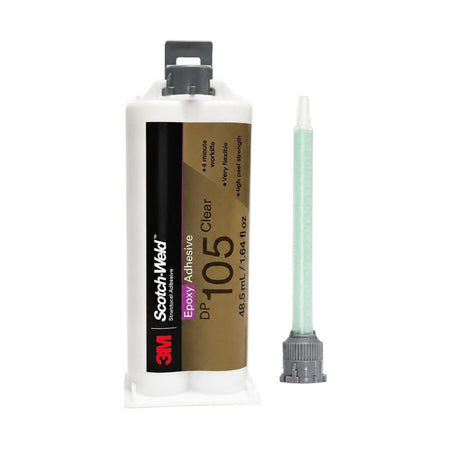

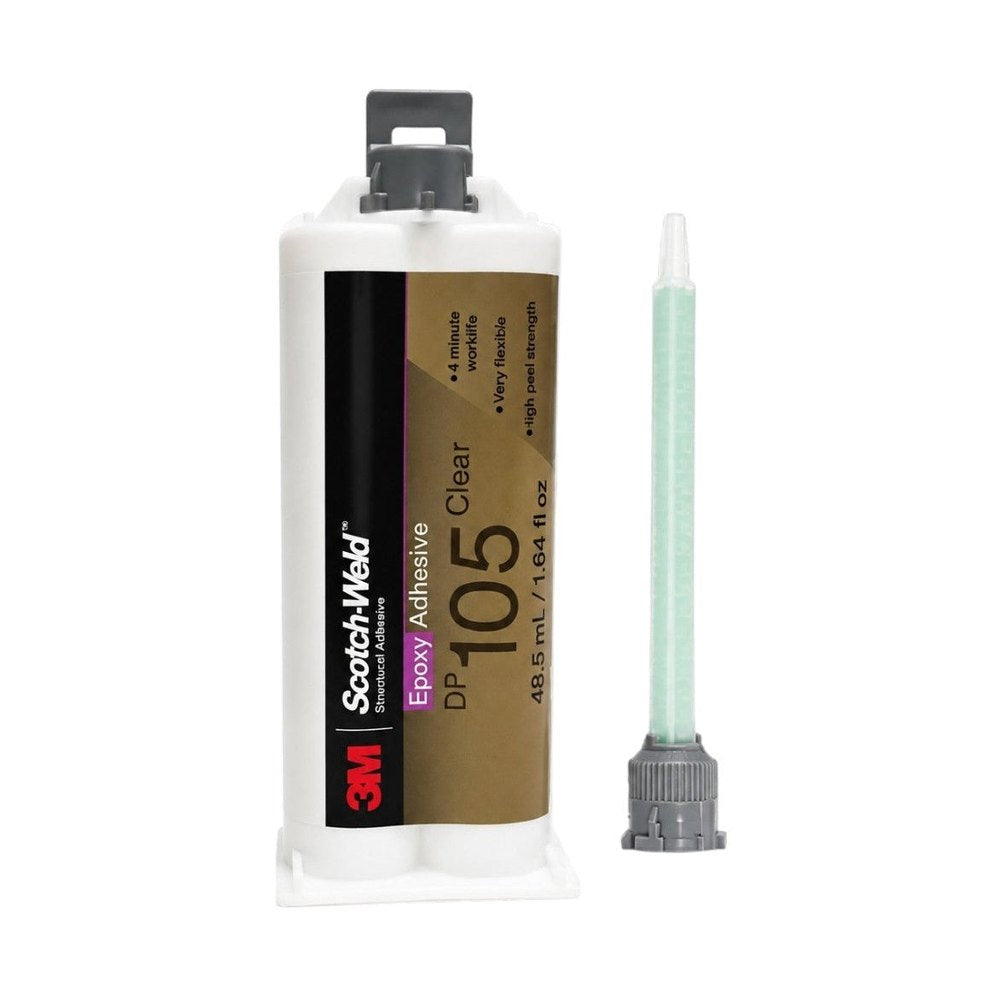

3M Scotch-Weld DP105 Clear - 4 Minute Extra-Flexible Fast Set Epoxy
Need Datasheets? Need Accessories?
• Click Here to visit our Datasheet Server (TDS, SDS, Fact Sheets, Selector Guides, etc)• Check out Popular Accessories below by scrolling down just a bit on this page.
Regular price
$ 58.99 USD
8 units available
3M Scotch-Weld DP105 is a fast-setting, two-part epoxy that cures to a clear and exceptionally flexible bond. It is one of the most flexible epoxies in the Scotch-Weld line, offering very high elongation and excellent peel strength. This makes it the ideal choice for applications that require significant movement, vibration damping, or for bonding materials with very different rates of thermal expansion.
Popular Applications & Uses
- Encapsulating and potting sensitive electronic components to protect them from thermal shock and vibration.
- Bonding flexible substrates to rigid materials (e.g., rubber to metal or plastic).
- Sealing joints where high flexibility and movement are expected.
- Applications requiring high peel strength and impact resistance.
- Assembling components that will be exposed to extreme thermal cycling.
Industries that Commonly Use It
- Electronics and Electrical Assembly
- Aerospace and Transportation
- General Industrial and Manufacturing
- Sporting Goods
Special and Unique Features
- Extremely flexible formulation with very high elongation (over 100%) for maximum movement and stress relief.
- Very fast set time with a 4-5 minute work life for rapid assembly.
- Cures to an optically clear finish, suitable for aesthetic applications.
- Excellent for damping vibration and absorbing impact energy.
- Maintains good flexibility at low temperatures.
Key Properties
- Base: Epoxy
- Color: Clear
- Mix Ratio: 1:1 by volume
- Work Life: 4-5 minutes at 73 F (23 C)
- Peel Strength: Approximately 20 piw (pounds per inch of width)
- Elongation: 110% (indicating extreme flexibility)
Materials Bonded
- Metals (Steel, Aluminum)
- Glass and Ceramics
- Many Plastics (ABS, Polycarbonate, PVC)
- Wood, fabrics, and rubber.
- Excellent for bonding dissimilar materials.
Cure Information
- Mix Ratio: 1:1 by volume
- Work Life (Pot Life): 4-5 minutes
- Time to Handling Strength: Approximately 20 minutes at room temperature.
- Full Cure: 24-48 hours at room temperature.
- Cure can be accelerated with mild heat.
Known backups / known substitutes for this product
- 3M Scotch-Weld DP100 Plus (for applications needing less flexibility)
Comparison Note
- The primary difference between 3M DP105 and 3M DP100 Plus lies in the degree of flexibility. While DP100 Plus is considered flexible (around 60% elongation), DP105 is an "extra-flexible" formulation with nearly double the elongation (around 110%). DP105 should be chosen when maximum flexibility, peel strength, and shock absorption are the most critical requirements for the application.
