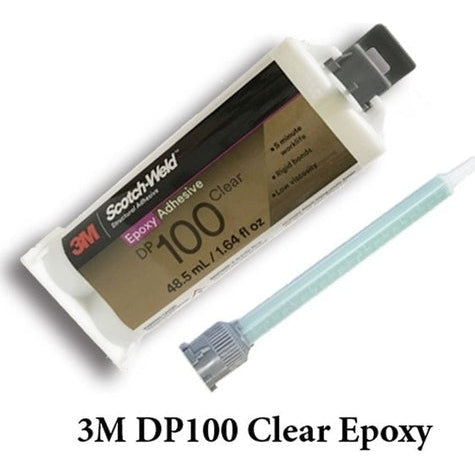

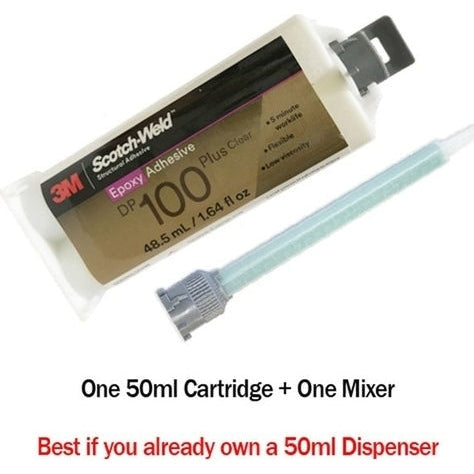

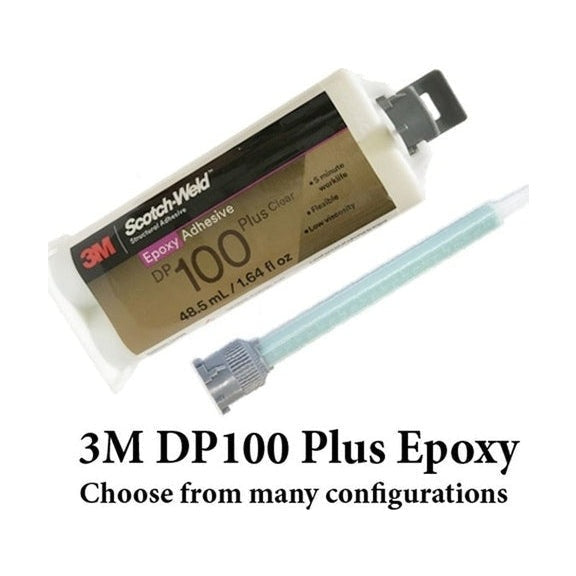

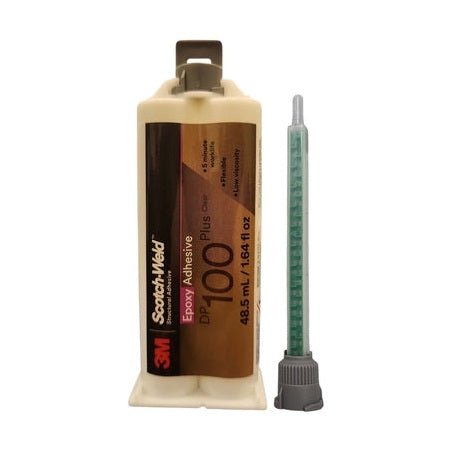

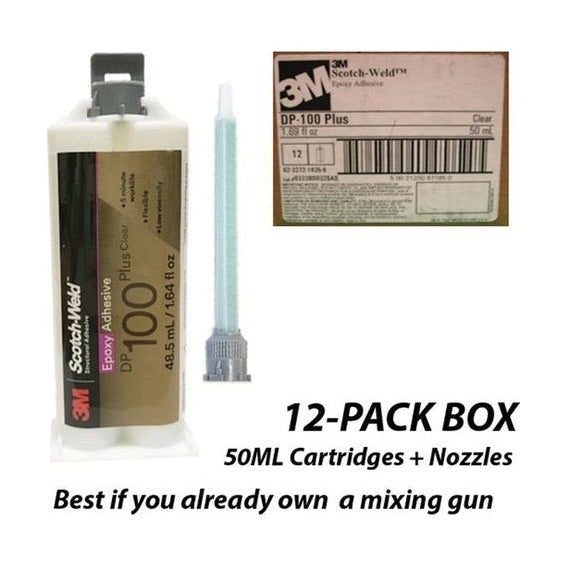

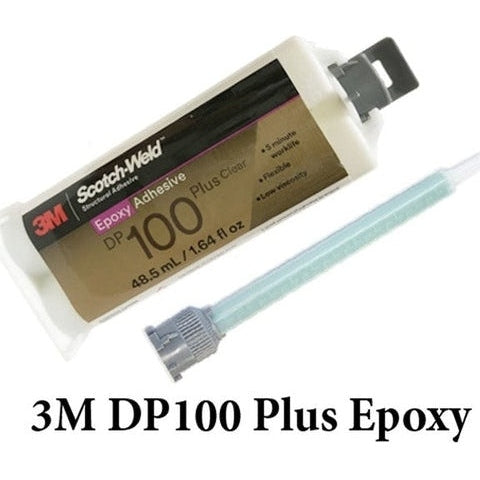

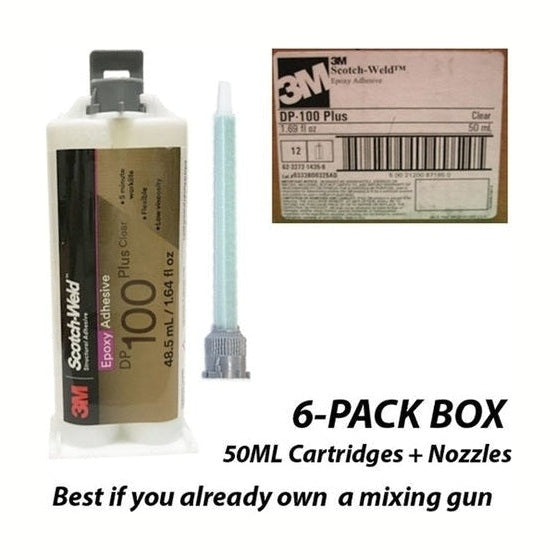

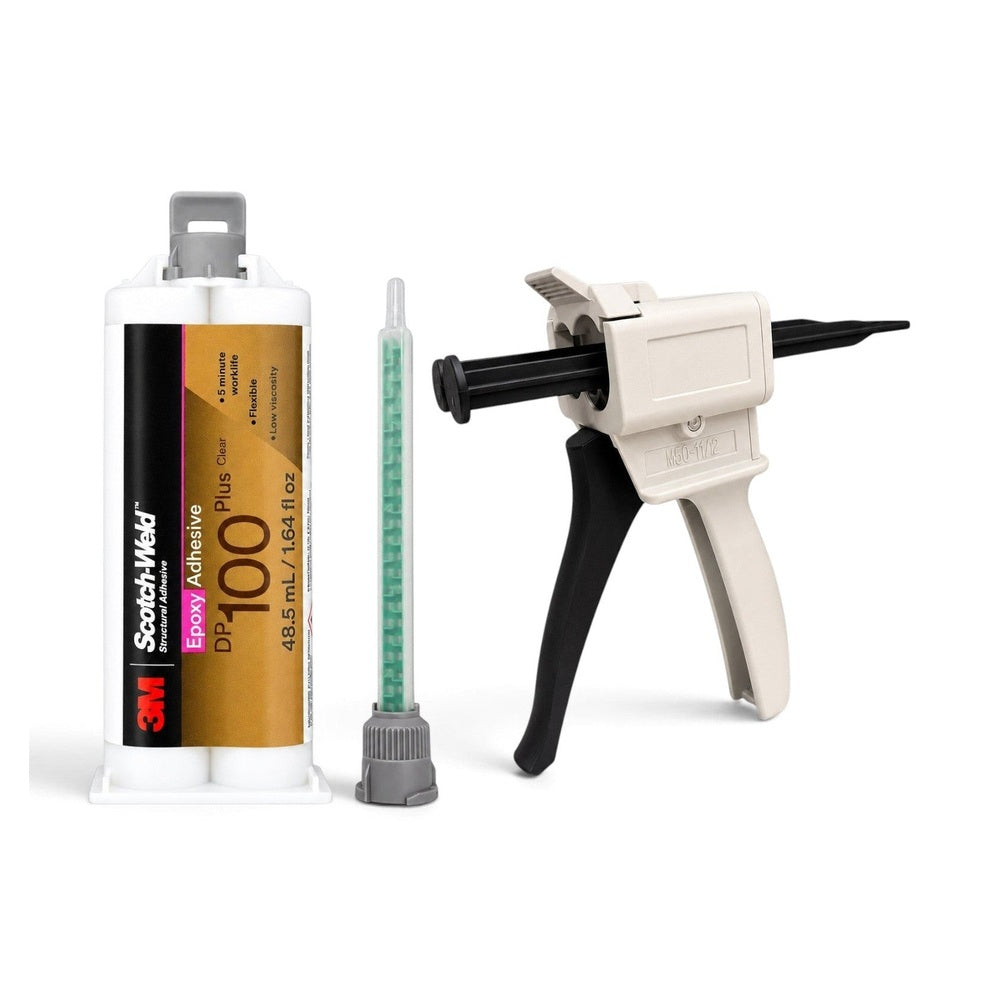

3M Scotch-Weld DP100 Plus Clear - 4 Minute Flexible Fast Set Epoxy

MMM-3M Scotch-Weld

SKU: 3M_DP100PCL_050ML_PLG

  • $ 319.71
    (We can use your FedEx/UPS acct: Type-in the needed Acct # & Service Level)


    3M™ Scotch-Weld™ Epoxy Adhesive DP100 Plus Clear is a fast setting, two-part, 1:1 mix ratio mercaptan-cured epoxy adhesive. It is unique among fast setting mercaptan cure epoxies in that it combines high shear strength with good peel performance properties. Scotch-Weld epoxy adhesive DP100 Plus Clear is transparent and slightly flexible when cured.

    Features:

    • 4 Minute Work Life
    • High Shear & Peel Strength
    • Slightly Flexible When Cured

    Overlap Shear Strength (OLS) vs. Temperature:

    (Bonds cured 24 hours @ room temperature (RT) + 2 hrs @ 160°F [71°C])

    Etched Aluminum

    3500 psi

    Sanded Aluminum (60 grit)

    1800 psi

    Cold Rolled Steel

    1700 psi

    Wood,Fir

    700 psi

    Glass, Borosilicate

    250 psi

    Glass, +3M™ Scotch-Weld™ Primer EC3901

    300 psi

    Polycarbonate

    600 psi

    Acrylic

    300 psi

    Fiberglass

    1500 psi

    ABS

    280 psi

    PVC

    450 psi

    Polypropylene

    80 psi

     Rate of Strength Build-Up (OLS on Etched Aluminum) Bonds tested after:

    1 hr @ RT

    600 psi

    6 hrs @ RT

    900 psi

    24 hrs @ RT

    1100 psi

    7 days @ RT

    2800 psi

    1 mo @ RT

    3400 psi

    Environmental Aging: (OLS on Etched Aluminum)Bonds tested after:

    24hrsRT+ 2 hrs @ 160°F (71°C)

    3500psi

    24hrsRT+ 2 hrs @ 240°F (116°C)

    4500psi

    1 wk RT + 1 wk @ 90°F (32°C)/90% RH

    3900psi

    1 wk RT + 1 wk 248°F (120°C)

    4500psi

    1 wk RT + 1 wk H2O immersion

    3500psi

    Overlap shear (OLS) strengths were measured on1 in. wide 1/2 in. overlap specimens. These bonds were made individually using 1 in. x 4 in. pieces of substrate. The thickness of the bond line was 0.005-0.008 in. All strengths were measured at 70°F (21°C) except where noted. (Test per ASTM D 1002-72.)

    The separation rate of the testing jaws was 0.1in. per minute for metals, 2 in. per minute for plastics and 20 in. per minute for rubbers. The thickness of the substrates were: steel, 0.060 in.; other metals, 0.05-0.064 in.; rubber, 0.125 in.; plastics, 0.125 in.

    Overlap Shear Strength (OLS) vs. Temperature

    (Bonds cured 24 hours @ room temperature (RT) + 2 hours @ 160°F [71°C])

    Bonds tested at:



    -67°F(-55°C)

    3000psi

    70°F(21°C)

    3500psi

    120°F(49°C)

    750psi

    150°F(66°C)

    400psi

    180°F(82°C)

    200psi

    180° Peel Strength vs. Temperature

    (Bonds cured 24 hours @ room temperature (RT) + 2 hours @ 160°F [71°C])

    -67°F(-55°C)

    2 piw

    70°F(21°C)

    13piw

    120°F(49°C)

    15piw

    150°F(66°C)

    2 piw

    180°F(82°C)

    1 piw

    Solvent Resistance



    OneHour/OneMonth

    Acetone

    A/A

    IsopropylAlcohol

    A/A

    FreonTF

    A/A

    FreonTMC

    A/A

    1,1,1-Trichloroethane

    A/A

    RMAFlux

    A/A

    Key: A - Unaffected, B - Slight Attack, C - Moderate/Severe Attack

    Exotherm



    Max.Temp/TimetoReach

    2 gram mass

    128°F/6min.

    20grammass

    260°F/3min.

    12 Overlap shear (OLS) strengths were measured on1 in. wide 1/2 in. overlap specimens. These bonds were made individually using 1 in. x 4 in. pieces of substrate. The thickness of the bond line was 0.005-0.008 in. All strengths were measured at 70°F (21°C) except where noted. (Test per ASTM D 1002-72.)

    The separation rate of the testing jaws was 0.1in.per minute for metals,2 in. per minute for plastics and 20 in. per minute for rubbers. The thickness of the substrates were: steel, 0.060 in.; other metals, 0.05-0.064 in.; rubber, 0.125 in.; plastics, 0.125 in.

    13 T-peel strengths were measured on1 in. wide bonds at 73°F (23°C). The testing jaw separation rate was 20 inches per minute.

    The substrates were 0.020in.thick.(TestsperASTMD 1876-61T.)

    14 Solvent resistance was determined using cured (24hrs. RT + 2 hrs. 160°F [71°C]) samples (1/2 in. x 4 in. x 1/8 in. thickness) immersed in the test solvent for 1 hour and 1 month. After the allotted period of time, the sample was removed and visually examined for surface attack as compared to the control.

    Key:   A - Unaffected - no change to color or surface texture.

    B - Slight attack - noticeable swelling of surface.

    C - Moderate/severe attack - extreme swelling of surface.
