Paneltim TriPower Polypropylene Structural Panels (Sandwich Panels) used in Construction, Flooring, Agriculture, Farming, Tanks, Aquatics, Trailers, Water Treatment, HVAC, Air Treatment, etc

Product Name

Paneltim TriPower Polypropylene Structural Panels (Sandwich Panels)

Brief Description

Paneltim TriPower panels are lightweight, strong, and hygienic structural plastic sandwich panels made from polypropylene copolymer (PP COPO). They feature a unique cross-rib cellular internal structure, offering an excellent strength-to-weight ratio and superior performance characteristics compared to traditional building materials.

Popular Applications & Uses

- Construction of walls, partitions, and general building structures- Flooring, including anti-slip options for various walking surfaces- Agricultural and farming applications- Manufacturing of trailers, caravans, and specialty vehicles- Liquid tanks, filters for liquids, and water treatment systems- HVAC systems, air scrubbers, air ducts, and air treatment units- Swimming pools and shower/toilet cubicles- Industrial furniture and flight cases- Wall cladding for wet areas and animal pens- Corrosive environments, pickling tanks, fume scrubber housings, and chemical holding tanks

Industries that Commonly Use It

- Construction/ Building Services- Flooring Installer or Manufacturer- Agriculture, Farming- Transportation/ Specialty Vehicle- Water Treatment- HVAC, Air Treatment- Plastic Fabrication- General Manufacturing- Chemical Industry- Pool/Spa/Plumbing- Cladding- Marine- Packaging Services or Contractor- Sign & Display

Special and Unique Features

- **Lightweight yet Strong:** Unique cross-rib cellular structure provides exceptional strength-to-weight ratios and rigidity, reducing the need for extensive reinforcements.- **Optimal Hygiene:** Sealed-edge design and non-porous, smooth surfaces prevent dirt, bacteria, and moisture accumulation, even when cut, making them easy to clean.- **Easy Processing:** Can be processed with standard woodworking tools and plastic construction techniques like welding (butt, extrusion, hot air welding), drilling, and screwing.- **Chemical Resistance:** Highly resistant to practically all chemical substances and ideal for corrosive environments.- **Thermal Insulation:** Hermetically enclosed air in the internal cells provides good insulation value.- **Durable and Impact Resistant:** Maintains elasticity, shock-proof, and highly resistant to dynamic shocks.- **100% Recyclable:** Environmentally friendly, free from toxic substances, and retain raw material value.- **UV Stabilized:** Available with UV stabilization for outdoor applications (light colors recommended).

Key Properties

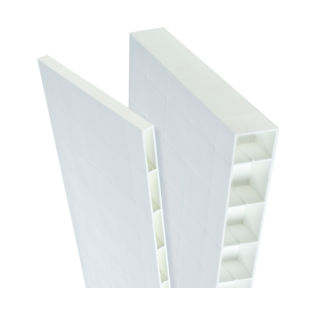

- **Material:** Polypropylene Copolymer (PP COPO or PPCO)- **Structure:** Twin-wall sandwich panel with a unique cross-rib cellular internal structure (e.g., 3" x 3" or 50mm x 50mm, 100mm x 50mm).- **Thicknesses:** Available in various thicknesses, such as ¾″, 2″, 35mm, 50mm.- **Dimensions:** Standard dimensions like 96″ x 48″ and 96″ x 40″ (or 2600mm x 1000mm, 1200mm x 1000mm).- **Weight:** Lightweight, e.g., approximately 2.0 lb/ft² for 2" thickness.- **Temperature Resistance:** Tolerates temperatures from –20 °C to +80 °C (or freezing up to 65 degrees Celsius for some applications).- **Fire Class:** Fire class E according to EN ISO 11925-2 (fire retardant additives available).- **Colors:** Available in standard colors like white (RAL 9010), black, euro beige, light grey, blue, green, with custom colors on request.

Surface Compatibility

- Smooth, non-porous surface.- Compatible with standard plastic construction techniques like butt welding, extrusion welding, and hot air welding.- Can be drilled, screwed, and machined with standard hand tools.- Can be covered with a white protection foil on request.- Anti-slip profiles (buttons, checker plate, orange peel) are available for flooring applications.

Known backups / known substitutes

- **Plywood:** Paneltim panels are a lightweight alternative to plywood, offering better water/moisture resistance and durability.- **Solid Plastic Sheets:** Paneltim panels are lighter and require less reinforcement than solid plastic sheets for similar rigidity.- **Aluminum Composite Panels:** Can be a substitute in some structural applications.- **Fiberglass:** Paneltim panels can outperform fiberglass in some applications.- **Other Polypropylene (PP) Boards:** Such as ALVAboard, which are also hollow plastic boards with similar advantages over plywood.- **High-Density Polyethylene (HDPE) Panels:** Paneltim also offers HDPE panels, which share many similar properties with PP panels.- **Other Thermoplastic Sheets:** Depending on the specific application, other thermoplastics like ABS, PC, or even fluted polypropylene cores could be considered, though Paneltim's sandwich structure offers specific advantages.

Comparison Note

Paneltim TriPower panels offer a superior alternative to traditional materials like plywood, solid plastics, and even some metals and fiberglass, particularly where a combination of lightweight, high strength, hygiene, chemical resistance, and thermal insulation is required. Their unique cellular sandwich structure provides excellent rigidity with less material and reinforcement compared to solid sheets, leading to easier handling, faster installation, and reduced transportation costs. Unlike wood, they are impervious to water, rot, and mold, and unlike some metals, they are corrosion-resistant. They are also 100% recyclable, offering an environmentally responsible choice.
