Product Name

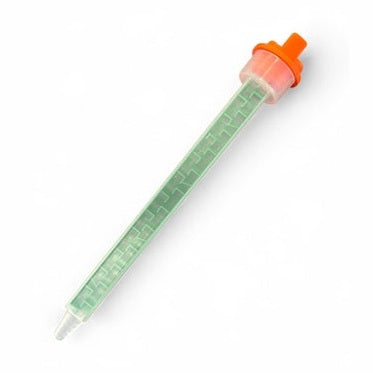

MixPac MFQX 08-24T (116039) F-System Square Quadro Mixing Nozzle (24 element, 8mm ID) for 10:1 & 4:1 ratio larger 2-part cartridges (490ml)
Brief Description
The MixPac MFQX 08-24T is a disposable static mixing nozzle designed for the thorough and consistent blending of two-component adhesives, sealants, and resins. It features a unique square Quadro element design and is specifically engineered for use with MixPac F-System 200ml, 250ml, and 400ml/490ml cartridges, supporting 4:1 and 10:1 mix ratios. This nozzle ensures precise mixing and application for a wide range of industrial and professional bonding tasks.
Popular Applications & Uses
- Dispensing two-component epoxy, polyurethane, silicone, acrylic, and methacrylate adhesives and sealants.- Structural bonding applications.- Seam sealing in automotive and industrial applications.- Potting and encapsulating resins for electronics.- Composite manufacturing and fiberglass applications.- Construction adhesives, home building, and concrete repair.- Aircraft assembly and repair.- Wind turbine assembly and repair, and other energy-related applications.- Solid surface bonding and countertop fabrication.- Woodworking and cabinetry.
Industries that Commonly Use It
- Aerospace/Defense- Automotive Service/Repair- Cabinet & Woodworking- Construction/ Building Services- Electrical Services or Products (e.g., electronics, communications, potting)- Energy (e.g., wind turbine, solar)- General Manufacturing- Mold Making/ Casting (e.g., potting and encapsulating resins)- Countertop
Special and Unique Features

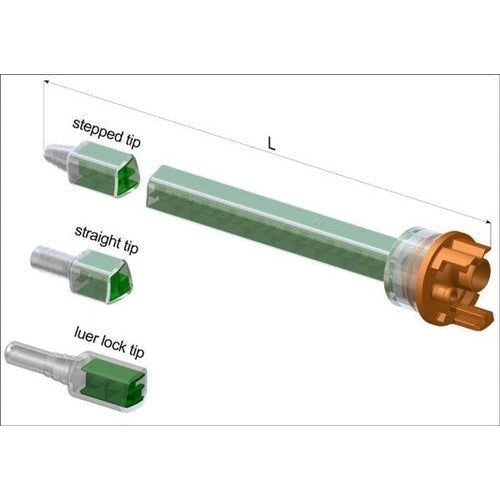

- Quadro (square) mixing elements: Provides optimal mixing in a smaller footprint compared to traditional round/helix mixers, allowing users to work closer to the bonding surface and reducing material waste.- F-System compatibility: Designed for seamless integration with MixPac F-System 200ml, 250ml, and 400ml/490ml two-part cartridges.- Interlock mounting method with separate inlets: Ensures components remain separate until the point of mixing, preventing cross-contamination, reducing clogging, and extending adhesive shelf life.- Disposable design: Facilitates a clean and efficient workflow with minimal cleanup required.- Stepped tip outlet: Allows for precise dispensing, adjustable bead size, and minimizes material waste during application.- 24 mixing elements: Guarantees thorough and consistent mixing of two-part materials.- Supports 4:1 and 10:1 mix ratios: Caters to specific adhesive formulations requiring these precise ratios.- Industrial grade and silicone-free construction: Ensures suitability for professional and sensitive applications.
Key Properties
- Mixer Type: Static, Quadro (square)- Number of Elements: 24- Inner Diameter: 8mm (0.343 in / 8.7 mm)- Length: 155mm (6.102 in / 5 3/4 in)- Compatible Cartridge Sizes: 200ml, 250ml, 400ml, 490ml F-System cartridges- Mix Ratios Supported: 4:1 and 10:1- Material: High-grade polypropylene- Color: Natural outer, green elements, orange cap- Waste Volume: Approximately 8.86 ml- Outlet Tip: Stepped
Surface Compatibility
This nozzle is designed to dispense various two-part adhesives and sealants, which are compatible with a broad range of surfaces, including:- Concrete (when dispensing epoxy resins)- Wood (for woodworking and cabinetry applications)- Solid surfaces (for bonding applications)- Various materials found in electronics, automotive, aerospace, and construction, such as metals, plastics, and composites, depending on the specific adhesive used.
Known backups / known substitutes
- Sulzer Mixpac MFQX 08-24T (often the same product under the Sulzer branding, or a direct equivalent).- Other MixPac F-System Quadro mixers with different element counts or diameters (e.g., MFQX 05-16L, MFQX 05-24L, MFQX 07-24T, MFQX 10-24T).- MixPac MFQ 08-24T (a similar F-System Quadro mixer, but typically for 1:1 and 2:1 mix ratios).- MixPac MFH/MFHX series (F-System helix/round mixers, offering a different mixing element design, often for 1:1 and 2:1 ratios).- Sulzer MGQ 08-24T (a similar static mixer nozzle designed for the MixPac C-System, compatible with various adhesive chemistries).- Infinity Bond MFQX 08-24T (a compatible alternative to the Sulzer MFQX 08-24T).
Comparison Note
The MixPac MFQX 08-24T stands out as a Quadro (square) static mixer, which is recognized for delivering optimal mixing performance within a more compact footprint compared to traditional round/helix mixers. This design advantage allows users to work closer to the bonding surface and potentially reduces material waste within the nozzle. Crucially, this specific model is engineered for 4:1 and 10:1 mix ratios, differentiating it from the MFQ series which typically handles 1:1 and 2:1 ratios. Its dedicated F-System connection ensures secure and compatible attachment to a specific range of larger two-part cartridges.
