Leister WeldPlast S4 (4 variants, 116.948, 146.812, 146.813, 156.451)
In stock
Regular price
$9,600.00 CAD
Currently Out of Stock
Call for ETA
Need Datasheets?
Click Here to visit our Datasheet Server (TDS, SDS, Fact Sheets, Selector Guides, etc)Powerful extruder

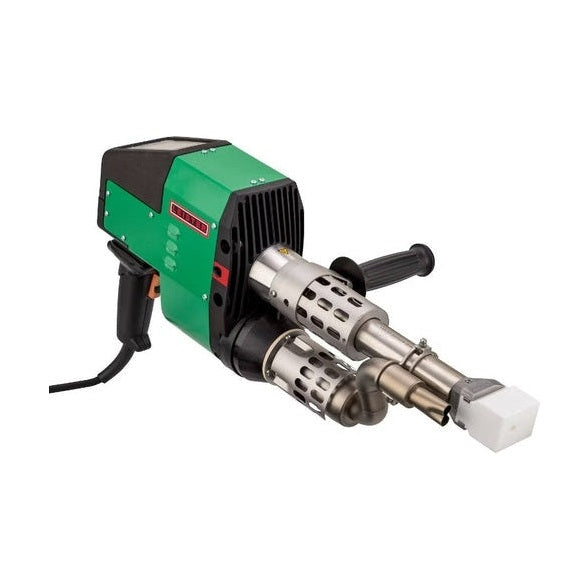

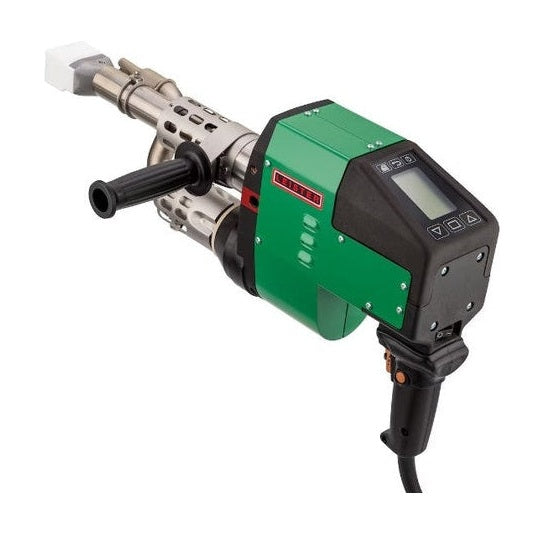

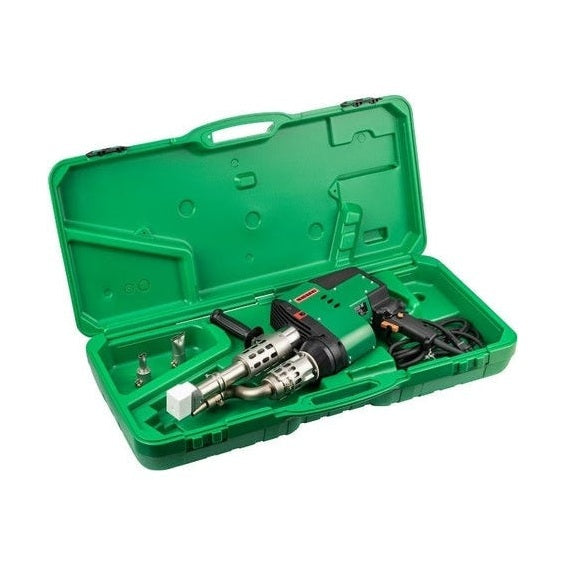

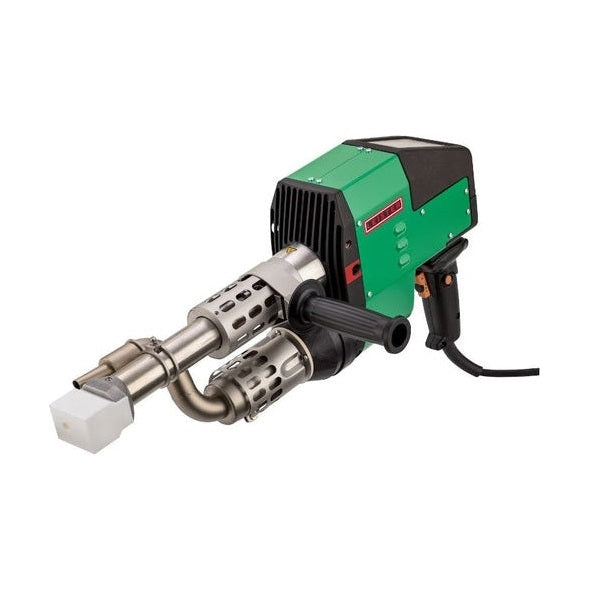

The WELDPLAST S4 extruder from Leister is available in two designs: one option suited for equipment and container construction with a lateral, hot air nozzle, and as a civil engineering version with a top-mounted, pre-heating nozzle. Depending on the variant chosen, the user can process welding wire with cross sections of 3 and 4 (0.12 and 0.16 in) or 4 and 5 mm (0.16 and 0.20 in). The high powered, brushless blower guarantees excellent pre-heating for the high output class.
- Variant for equipment and container construction
- Variant available for geosynthetics
- Various welding shoes available
- Angle adapter also available
- Perfect weld seam quality
- Multifunctional display
- Successfully operated worldwide
Article # | Voltage | Welding Rod Size | Plug | Included weld shoe |
116.948 | 230 V | ø 3-4mm / 0.12-0.16 in | EU, 3 pole, 16A | No |
146.812 | 230 V | ø 4-5mm / 0.16-0.20 in | EU, 3 pole, 16A | No |
146.813 | 230 V | ø 4-5mm / 0.16-0.20 in | EU, 3 pole, 16A | Fillet weld seam |
156.451 | 230 V | ø 4-5mm / 0.16-0.20 in | CEE blue, 3 poles, 16A | Overlap Seam |
Attribute |
Unit | Value |
---|---|---|
Voltage | V~ | 230 |
Frequency | Hz | 50/60 |
Power | W | 3680 |
Welding Rod | mm/in | ø 4–5 / 0.16–0.2 |
Material output ø 4 mm | kg/h | 1.5 - 2.2 |
Material output ø 5 mm | kg/h | 2.2 - 3.8 |
Welding materials | HDPE; LDPE; LLDPE; PP | |
Weldable sheet/membrane thickness | mm | 15-25 (Recommended for specified sheet thickness) |
Air Guide | External | |
Screw Heating | Coil heater | |
Air temperature control | Closed loop | |
Leister Quality System data recording | No | |
Display | Yes | |
Brushless blower motor | Yes | |
Brushless drive motor | No | |
LED Working light | No | |
Length | mm | 560 |
Width | mm | 110 |
Height | mm | 300 |
Weight (without power cord) | kg | 8.7 |
Power cable length | m | 5 |
Plug | EU, 3 poles, 16A | |
Noise emission level | dB (A) | 85 |
Approvals | CB Certification; CE; UKCA | |
Protection class | I | |
Country of origin | CH (Switzerland) |
