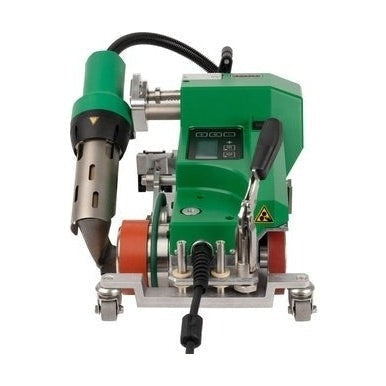

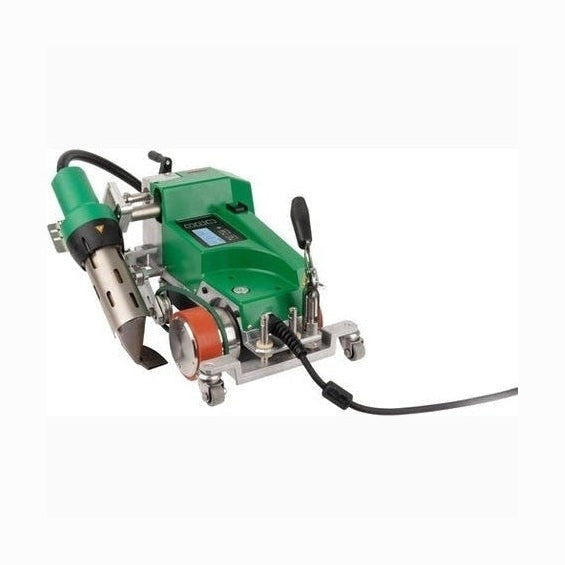

Leister Uniplan 300 (164.557, 164.558, 164.59) Automatic Welding Machine for Tarps, Tents, Liners, and Banners
Need Datasheets?
Click Here to visit our Datasheet Server (TDS, SDS, Fact Sheets, Selector Guides, etc)Leister's UNIPLAN 300 automatic welder is the ideal choice for your jobs, whether you are welding truck tarps, tents or banners.. And made of plastic or fabric sheets.
Its single motion nozzle engagment makes it easy to get started and increases reliability. Thanks to the adjustable swivel wheel, it is easy to get around obstacles like grommets, hooks or other accessories. Automatic, practical, safe – UNIPLAN 300 automatic welder by Leister
-
Complete Training of Leister Tools by Leister Trained Engineers Included in Every Order
-
- Blower motor with brushes
- Hot-air blower welding capacity of 12,500 rpm
- Display for setting the welding parameters
-
Automatic and safe: Single motion nozzle engagement
-
Adjustable swivel wheel: To avoid obstacles such as grommets and hooks
-
Quick modification: Users can change from overlap welding to hem or pipe welding in one, easy step
- Reliable: Controlled temperature and speed
Uniplan 300 configurations:
164.557 is configured for 40mm wide welds
164.558 is configured for 30mm wide welds
164.559 is configured for 20mm wide welds

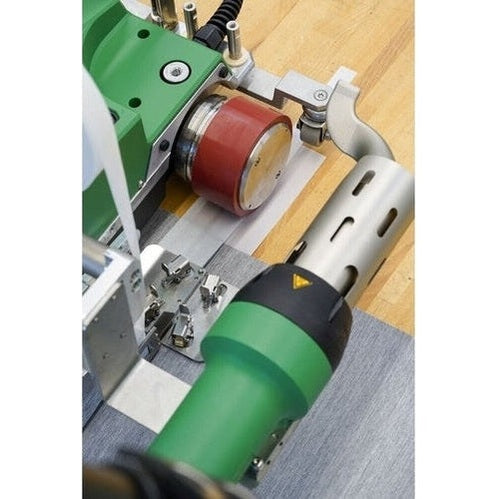

And Optional Fabric Bonding Kit Options (like Sunsetter and Awning material):
175.325 is configured for 22mm wide fabric tape welds
175.326 is configured for 20mm wide fabric tape welds
175.327 is configured for 18mm wide fabric tape welds
| Attribute | Unit | Value |
|---|---|---|
| Voltage | V~ | 120 |
| Frequency | Hz | 50/60 |
| Power | W | 1800 |
| Nozzle width | inch | 1.6 |
| Drive Speed | feet/min | 3.3 - 52.5 |
| Size (L × W × H) | inch | 19.7 x 12.2 x 11.8 |
| Weight (without cable) | lbs | 33 |
| Blower speed | rpm | 12500 |
| Blower motor | brushed | |
| Noise emission level | Lpa (dB) | 70 (K = 3 dB) |
| Size (L × B × H) | mm | 500 x 310 x 300 |
| Conformity mark |  |
|
| Protection class I |  |
