Huntsman Araldite 2014-3 (NEW FORMULA) High-Temp Chemical-Proof Epoxy Gel
Need Datasheets? Need Accessories?
• Click Here to visit our Datasheet Server (TDS, SDS, Fact Sheets, Selector Guides, etc)• Check out Popular Accessories below by scrolling down just a bit on this page.
Regular price
$35.00 CAD
777 units available
ARALDITE 2014-3 Structural Epoxy Adhesive
NEW IMPROVED REPLACEMENT FOR ARALDITE 2014 US
ARALDITE 2014-3 (ARALDITE AW 139-2 / Hardener HW 5323-1) is a two-component, room-temperature curing, sag-resistant epoxy paste adhesive specifically developed to replace the legacy ARALDITE 2014 US system. This advanced formula maintains the high strength and excellent chemical resistance of the original while providing an improved chemical safety profile and enhanced performance characteristics.
The adhesive is a dark grey, thixotropic paste (mix ratio 2:1 by weight/volume) designed for structural bonding of metals, electronic components, composite materials, and other substrates exposed to higher temperatures or aggressive environments.
Comparison: ARALDITE 2014-3 vs. ARALDITE 2014 US
|
Feature |
ARALDITE 2014 US |
ARALDITE 2014-3 |
Improvement / Note |
|
Safety Profile |
Standard |
Improved Chemical Safety |
Primary driver for the new formula. |
|
Glass Transition Temp (Tg) |
53 C (Degrees Celsius) |
69 C (Degrees Celsius) |
16 C increase; significantly better high-temperature strength. |
|
Working Time (23 C) |
Approx. 100 min. |
Approx. 120 min. |
20 percent longer pot life for increased flexibility. |
|
Cure Time to 10 MPa (23 C) |
5 hours |
6 hours |
Minor trade-off for better thermal/durability performance. |
|
Resistance to Water & Heat Aging |
Good |
Superior Durability |
Better long-term strength retention under moisture and heat stress. |

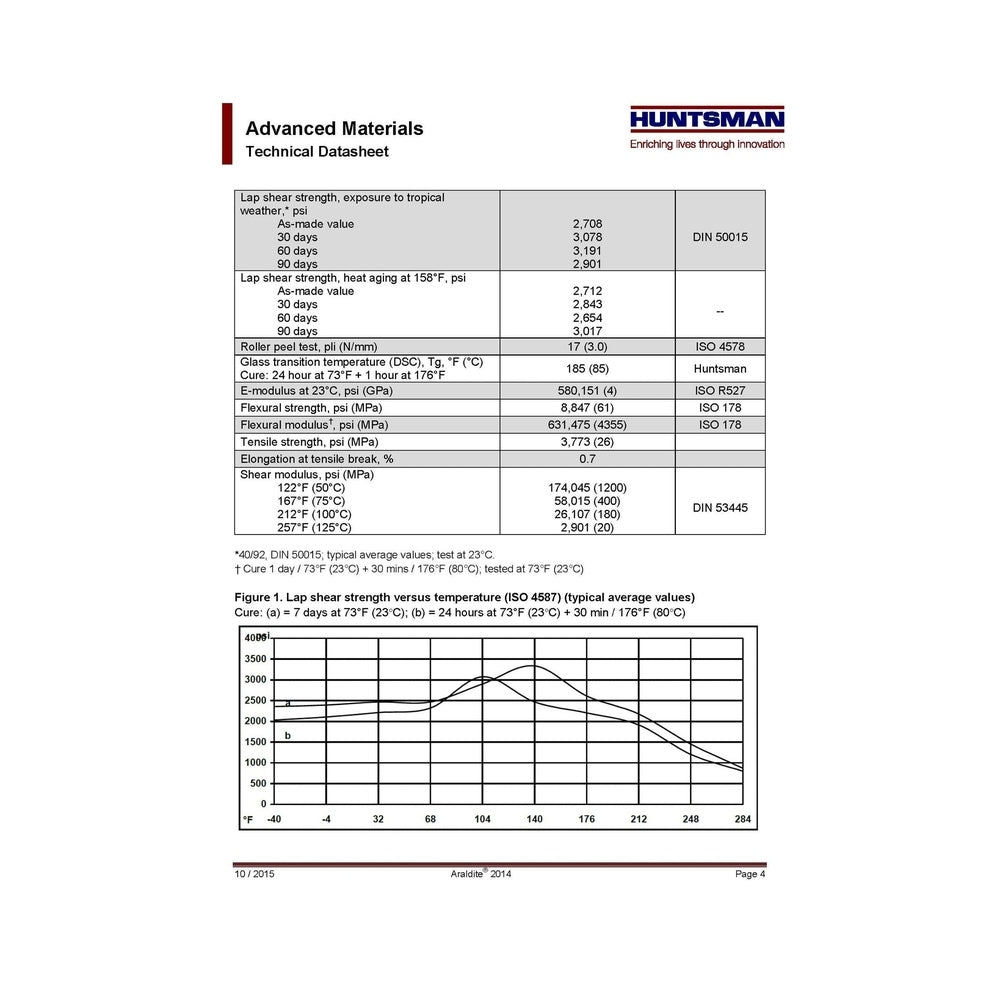

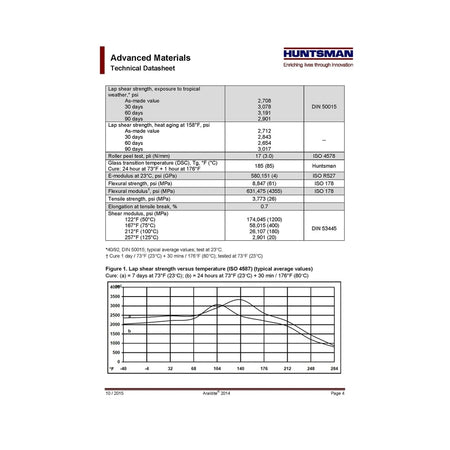

General Features and Performance
The new ARALDITE 2014-3 formula provides significant benefits, ensuring superior performance and improved processing:
- Appearance (Mixed): Dark grey paste.
- Mix Ratio (Weight/Volume): 100:50 (Resin to Hardener).
- Gap Filling: Non-sagging, gap-filling up to 5mm thickness.
- Cure Speed: Reaches handling strength (1 MPa) in 4 hours at 23 C. Reaches working strength (10 MPa) in 6 hours at 23 C.

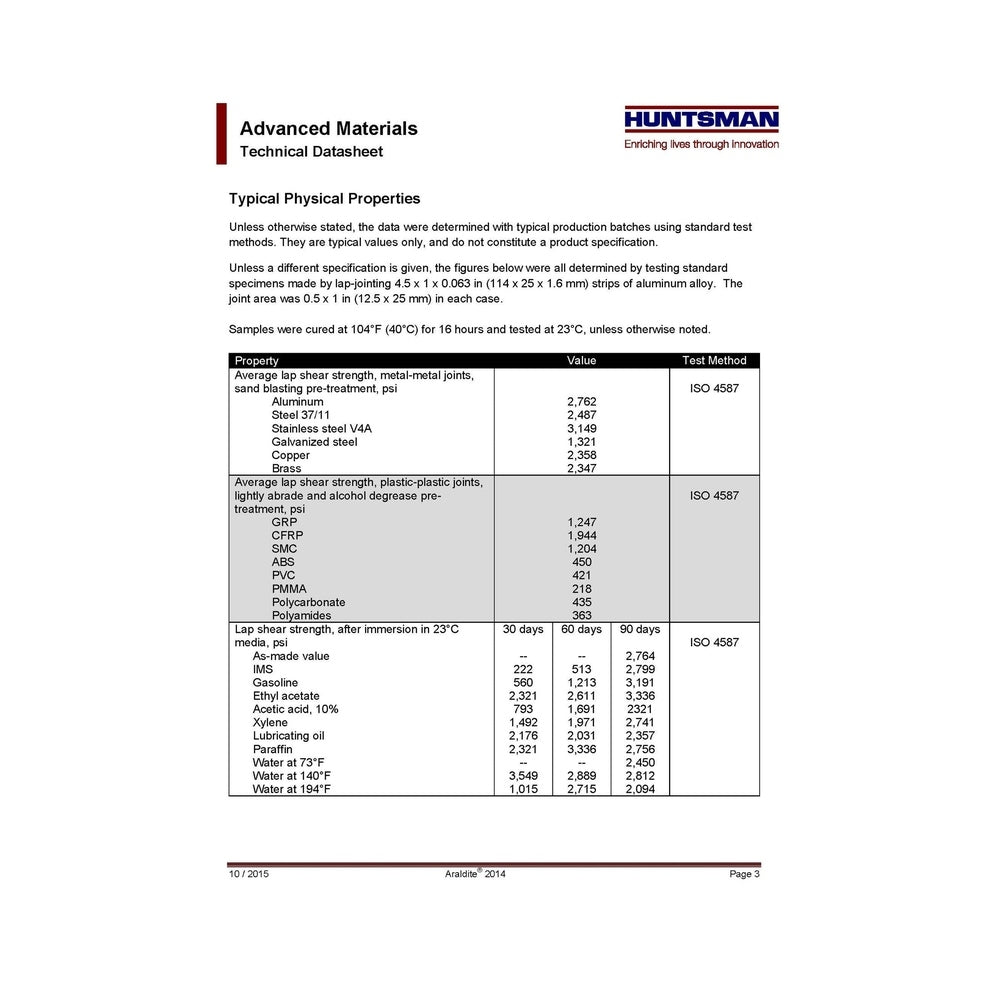

- Cured Properties (Typical): High tensile modulus (3700 MPa) and tensile strength (45 MPa). Highly resistant to water, fuels (Gasoline), lubricants, and a wide variety of chemicals (e.g., Xylene, IMS).
