SynthoGlass Industrial Grade - Pipe Repair Kits

Product Name

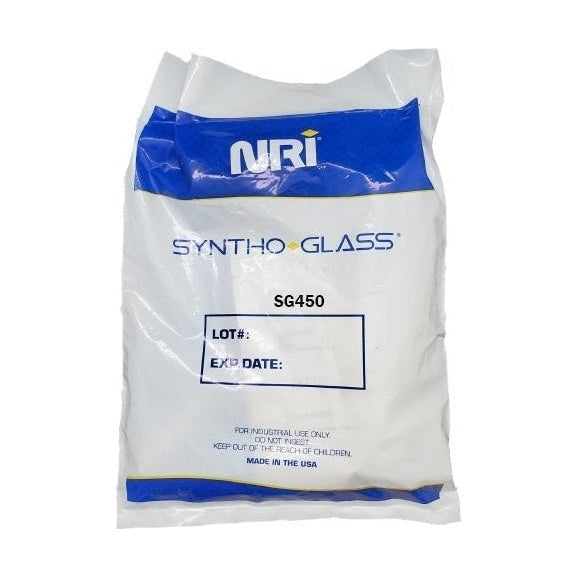

SynthoGlass Industrial Grade - Pipe Repair Kits

Brief Description

SynthoGlass Industrial Grade - Pipe Repair Kits are patented, water-activated fiberglass pre-impregnated composite wraps designed for rapid, durable, and permanent repair and reinforcement of various industrial pipes. This industrial-grade solution restores pipes to their original pressure rating and can make the repaired area stronger than the original pipe, significantly reducing downtime and saving on parts and labor.

Popular Applications & Uses

- Emergency pipe repair and leak abatement- Corrosion protection and repair (internal and external)- Impact protection- Reinforcement of weakened pipe sections- Repair of irregular pipe fittings, joints, tees, couplings, pinholes, and cracks- Underwater repair and splash zones- Force mains and gravity lines- Process piping components carrying low-risk process streams including oil, gas, and water- Corrosion under insulation (CUI) and atmospheric corrosion- Offshore piping, caisson, and subsea applications- Cooling water tower overspray piping- Repair of live leaks (with UP kits) and depressurized leaks (with NP kits)

Industries that Commonly Use It

- Petroleum Industry, Products or Services- Energy (including utilities, oil, and gas)- Construction/ Building Services- Marine (including offshore drill rigs, cruise & cargo ships, subsea)- Government & Military (including Navy, Coast Guard)- General Manufacturing- Chemical Industry- Industrial Supply- Distributers & Resellers- Pool/Spa/Plumbing (for industrial and commercial plumbing)- Water and Sewer Treatment Plants- Mining- Hospitals

Special and Unique Features

- Water-activated (fresh or salt water)- Pre-impregnated fiberglass composite- Ready to use, no mixing or mess- No special tools needed- Environmentally safe, non-toxic, non-combustible, odorless, no VOCs- Restores pipe to original pressure rating and can make the repair area stronger- Industrial Grade is more flexible, easier to wrap in tight spaces- Conforms to military specification NSN# 5330-01-242-6187- Available in UP (under pressure) and NP (non-pressurized) versions- NSF61 and BS6920 approved for potable water when used with appropriate sealant (e.g., ESN-202/Syntho-Steel)- Can be used underwater, underground, or aboveground- UV stabilization (with SPF variant)

Key Properties

- Resin Type: Water-activated polyurethane- Set Time: As fast as 7 minutes (at 75°F/24°C) for some versions, 30 minutes for others- Service Temperature: -50° to 250°F (-45° to 121°C)- Application Temperature: 32° to 150°F (0° to 65°C)- Pressure once cured (with primary sealant): Max 300 psi (20.6 bar)- Good chemical resistance- Excellent adhesion to many substrates- Hardness: 70-80 Shore D (for SPF variant)- No VOCs

Surface Compatibility

- Copper- Steel- Stainless Steel- PVC- FRP (Fiber Reinforced Plastic)- Clay- Concrete- Rubber- Plastic- Metals

Known backups / known substitutes

- Other pipe repair kits/systems such as SylWrap Standard Pipe Repair Kit, SylWrap Universal Pipe Repair Kit, SylWrap Cast Iron Pipe Repair Kit, SylWrap Pipe Repair Contractor Case- SpillTech Pipe Repair Kit- Stop It Pipe Repair System- Traditional pipe repair methods (e.g., welding, pipe replacement, professional plumbing services)- Epoxy putty (often used in conjunction with wraps)- Syntho-Glass General Purpose (a less flexible, less expensive alternative from the same brand)

Comparison Note

SynthoGlass Industrial Grade offers a rapid, durable, and often stronger-than-original repair solution, distinguishing itself from traditional methods by eliminating the need for hot work, special tools, or extensive downtime. Its water-activated, pre-impregnated composite design simplifies application, making it a versatile choice for critical industrial repairs, including under-pressure and underwater scenarios, and conforming to military specifications.
