Description:

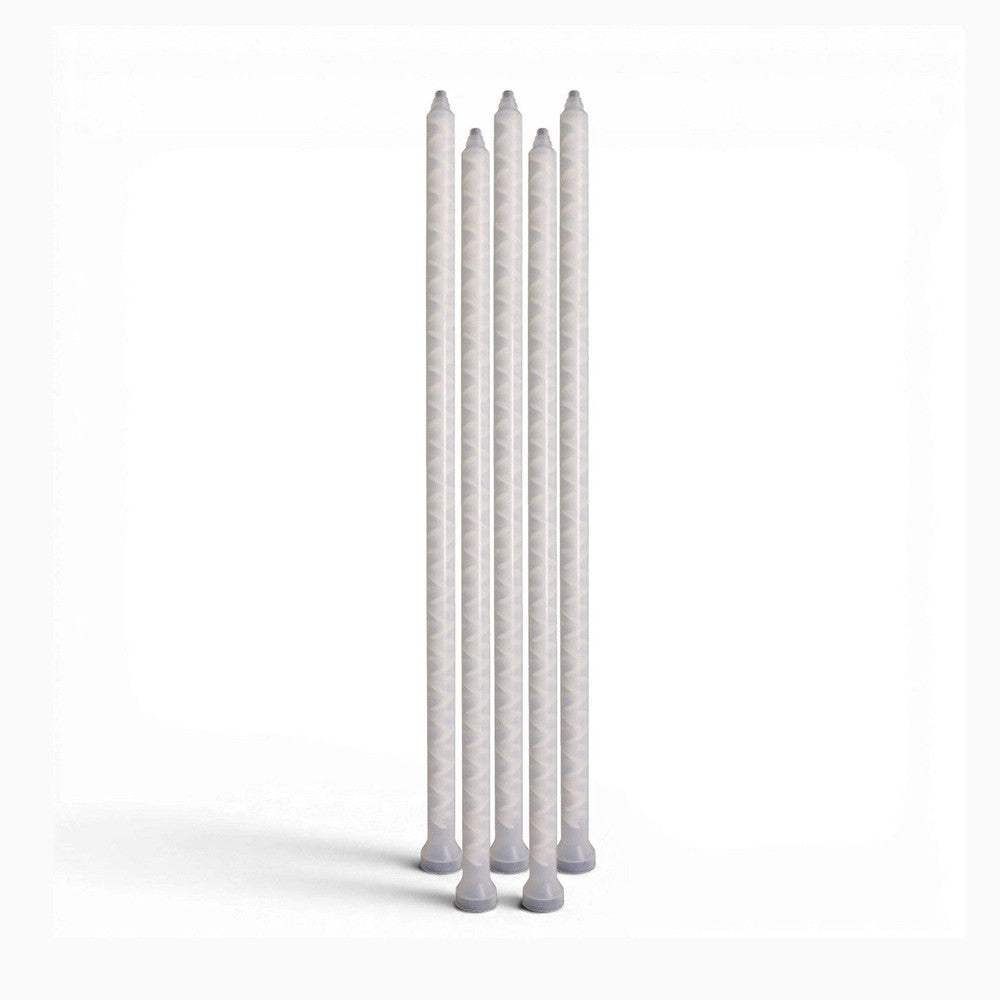

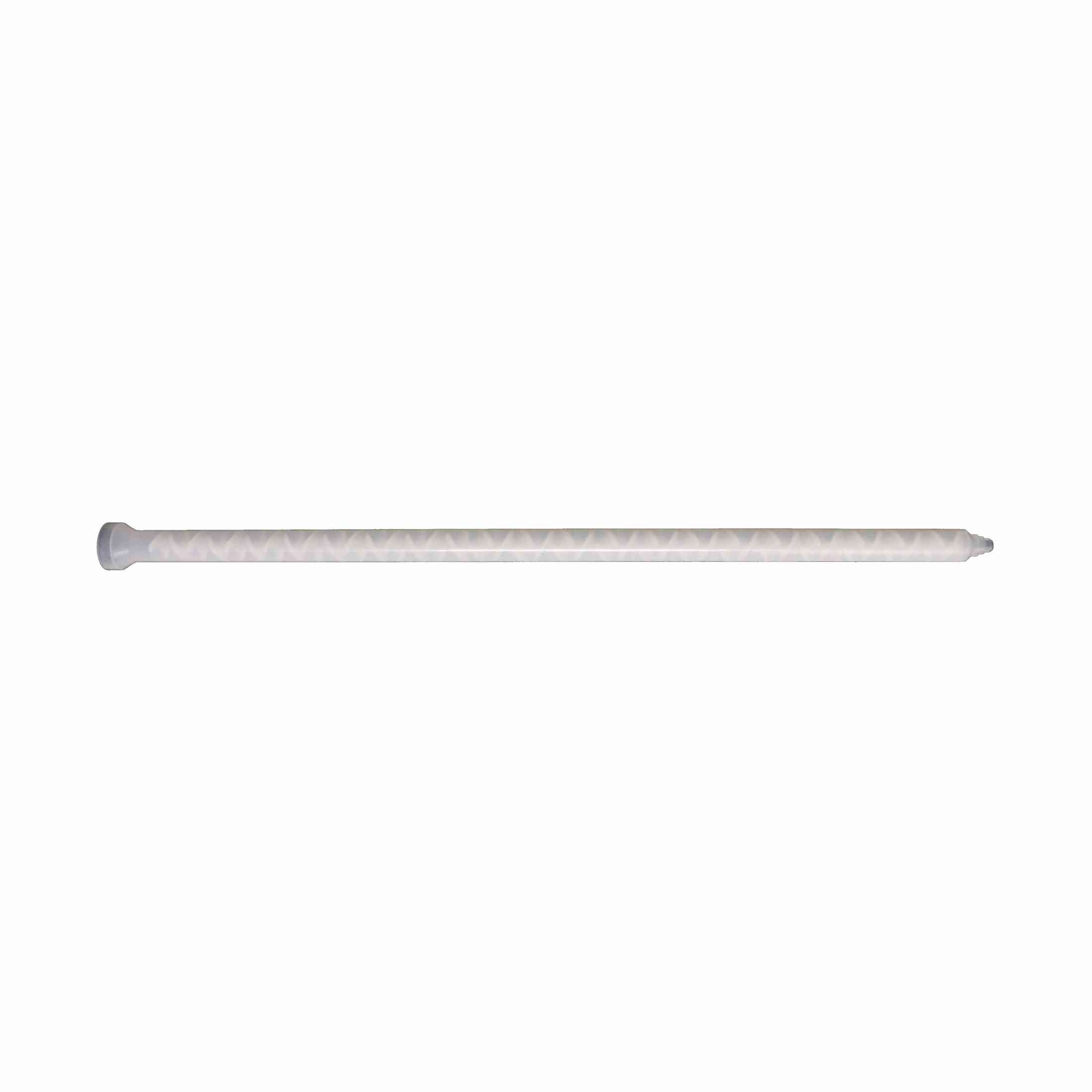

The Chem-Set 160-840 is one of our most extreme static mix nozzles, engineered specifically for high-performance blending. Featuring a 40-element plastic spiral design, this 0.366″ diameter, 14.14″ length mixer provides an exceptionally thorough, homogeneous blend. The massive number of mixing elements makes this nozzle the absolute perfect choice for processing high-viscosity, thick materials that standard nozzles struggle to adequately combine.
Expanded Compatibility:
Designed for ultimate versatility, the Chem-Set 160-840 works flawlessly with standard cartridges and is fully compatible with industry-leading systems, including:
-
All Mixpac C System Cartridges
-
All Mixpac J System Cartridges
-
Supported Volumes: 200ml, 400ml, 600ml, 1500ml, and more.
Features & Benefits:
-
40 Mixing Elements: Delivers an incredibly thorough mix, specifically excelling with thick, hard-to-blend materials.
Technical Specifications:
| Specification | Detail |
| Part # | 160-840 |
| Mixing Elements | 40 |
| Element Diameter | 0.366″ (9.30 mm) |
| Housing Length | 14.14″ (359.2 mm) |
| Outside Diameter | 0.510″ (12.95 mm) |
| Outlet Tip Orifice | 0.12″ (3.05 mm) |
| Housing Outlet | Stepped Tip |
| Housing Material | Polypropylene |
| Element Material | Acetal |
| Pressure Limit | 300 psi @ 75°F (21 Bar @ 30°C) |
| Nordson Cross | 160-840 |
| TAH Cross | 160-840 (7700932) |
