UltraLok® 607 is a clear, two-part structural acrylic adhesive engineered for durable plastic-to-plastic and plastic-to-metal assemblies. Its 10:1 mix ratio, practical working time, broad service-temperature range, and excellent resistance to UV exposure, humidity, and water make it especially useful for channel letters, signs, displays, and fabricated plastic components.
Key Benefits
- Purpose-built for signs and plastics: Bonds acrylic, polycarbonate, and ABS to themselves and to aluminum in documented testing.
- Strong structural performance: TDS lap-shear testing produced substrate failure across the listed plastic and plastic-to-aluminum assemblies.
- Weather-resistant bond: Excellent UV resistance plus humidity and water resistance supports demanding indoor and outdoor assemblies.
- Usable assembly window: A 6-9 minute working time allows parts to be positioned before the bond begins developing handling strength.
- Wide temperature capability: Cured adhesive is rated for service from -55°F to 250°F (-48°C to 121°C).
- Clear components: Both resin and activator are clear for a less visible bond line.
Product Specifications
| Product | UltraLok® 607 Clear Structural Adhesive |
|---|---|
| Adhesive chemistry | Two-part structural acrylic adhesive |
| Mix ratio | 10:1 by volume |
| Appearance | Clear resin and clear activator |
| Component viscosity | Resin: 75-100,000 cP; Activator: 25,000-30,000 cP |
| Working time | 6-9 minutes |
| Handling time | 14-18 minutes |
| Set time at 77°F (25°C) | 2-3 hours |
| Full cure | 24 hours at 77°F (25°C) |
| Gap fill | Not specified in the TDS |
| Typical lap-shear strength | Plexiglass/Plexiglass: 1,275 psi; Polycarbonate/Polycarbonate: 1,150 psi; ABS/ABS: 1,375 psi; ABS/Aluminum: 1,450 psi; Acrylic/Aluminum: 1,050 psi; Polycarbonate/Aluminum: 1,150 psi. ASTM D1002; substrate failure reported. |
| Cured hardness | 50-60 Shore D |
| Modulus at 1% strain | 81,000-86,000 psi (558-593 MPa) |
| Elongation | 5-10% |
| Component density | Resin: approximately 1.015 g/cm³; Activator: approximately 1.168 g/cm³ |
| Service temperature | -55°F to 250°F (-48°C to 121°C) |
| VOC | Less than 50 g/L mixed |
| Documented shelf life | 12 months when stored at 40-78°F (4-25°C); elevated temperatures reduce shelf life |

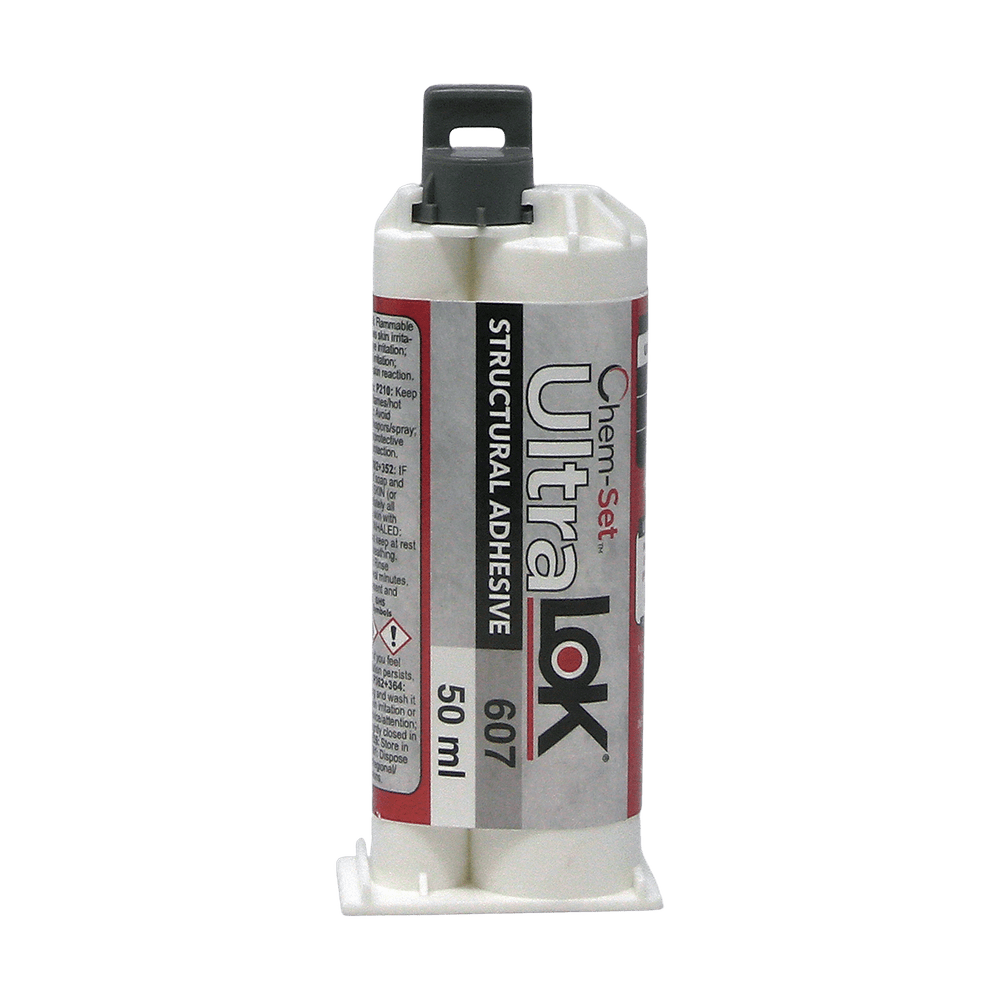

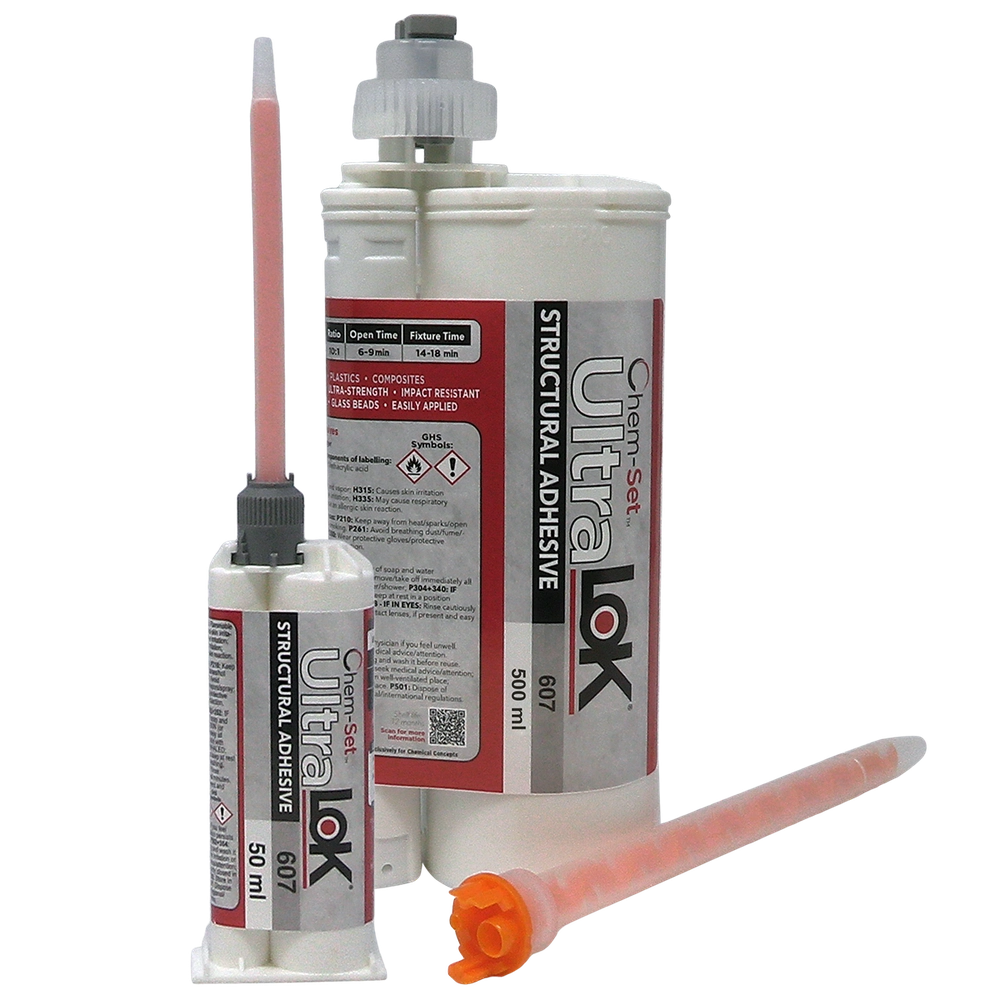

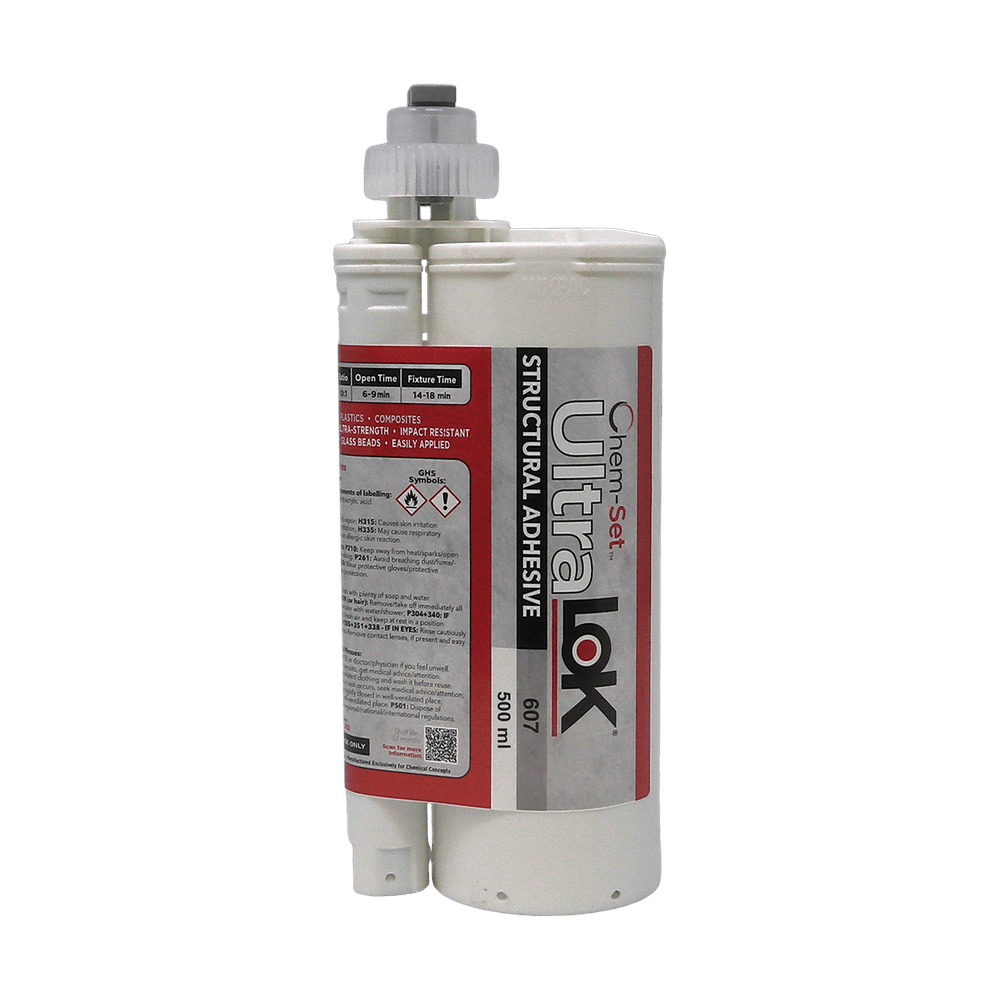

| Available sizes | 50 mL and 500 mL |
Performance values are typical and depend on substrate condition, joint design, mixing, application, temperature, and cure conditions. Test the actual materials and assembly before production use.
Choose Your Shelf Life
- Fresh Batch: Fresh-batch inventory. Refer to the package lot and expiration information for the actual remaining shelf life.
- Short Shelf Life (1-3 Mths Left): Product with approximately one to three months remaining before its labeled expiration date. Plan to use it promptly.
- Recently Expired: Product past its labeled expiration date. Published performance should not be assumed for expired material; test mix quality, cure, and bond performance before use.
Directions for Use
- Clean and dry both bonding surfaces, removing oil, dust, moisture, and other contamination.
- Dispense the two components at the specified 10:1 ratio through a compatible static mixer. Mixed material should appear uniform.
- Apply enough adhesive to fill the joint when the parts are assembled and clamped.
- Mate and position the parts within the 6-9 minute working time.
- Keep the assembly undisturbed while handling strength develops. Allow 24 hours at 77°F (25°C) for full cure.
- Remove excess uncured adhesive and clean equipment with a suitable, locally compliant solvent before the material cures.
Temperatures below 55°F (13°C) slow the cure, while temperatures above 85°F (29°C) accelerate it. Where appropriate for the parts and process, the TDS permits an accelerated cure of 15 minutes at 120-140°F (49-60°C).
Storage and Handling
Store tightly closed in a cool, dry, well-ventilated area at 40-78°F (4-25°C), away from heat, sparks, flames, direct sunlight, and UV exposure. Elevated storage temperatures reduce shelf life. Wear suitable eye protection and chemical-resistant gloves, provide adequate ventilation, and review the SDS for both components before use. The resin component is classified for transport as UN1133, Adhesives containing a flammable liquid, Class 3, Packing Group III.
